Vehicle Lifting: Locations

Lifting points, body

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Bodywork jacking points
When jacking the car, the jacking points given below must be used. The jacking plate must have a rubber pad to prevent damage to the car.

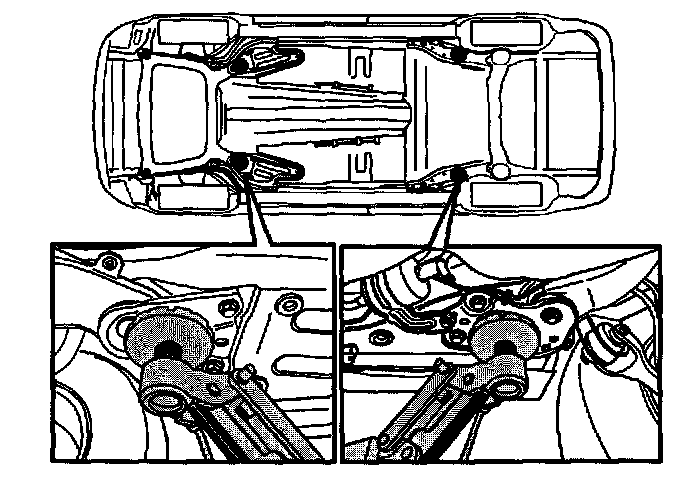

Jacking points for lifting the car, alternative A.

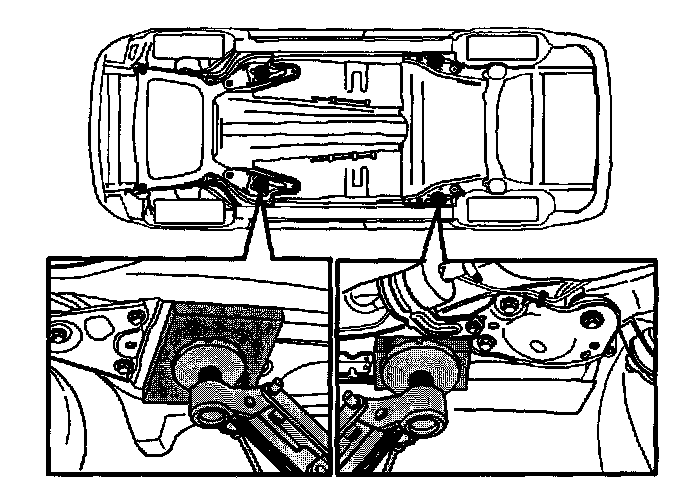

Jacking points for lifting the car, alternative B.







Front lift:
A wooden load relief plate (200*200*20 mm) must be used behind the sub-frame bracket.

Rear lift:
A wooden spacer (170*80*50 mm) must be used at the front of the sub-frame bracket.
