Connecting the Breakout Box (Central Electronic Module)

CONNECTING THE BREAKOUT BOX

Special tools: 9511503, 9813190




Connecting the breakout box
- Ignition off
- Remove fuses 11C/21, 11C/25 and 11C/32 from the fusebox in the passenger compartment
- Expose the central electronic module (CEM). Central Electronic Module (CEM), Replacing

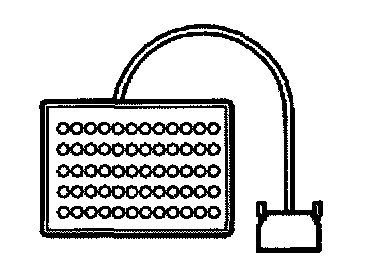

Connect adapter 9511503 to the control module connector. Connect breakout box 9813190 to the adapter.

Disconnect the breakout box in reverse order.

Note! Before the control module can be checked and measurements taken, the removed fuses must first be installed.

For further information about signals and other values, see Diagnostic Parameters and Pinout Values. Pinout Values and Diagnostic Parameters

For further information about the fuses and relays, see the Wiring Diagram.
