Checking the Fuse and Relay

Checking The Fuse And Relay







Check that fuse 20 in the fusebox in the passenger compartment is intact.

If the fuse has blown, check the cable between control module terminal #A35 (#A35) and the relay for extended X-supply 2/101 terminal #1 (located on the central electronic module (CEM)).

Check for a short-circuit to ground.

Other information:

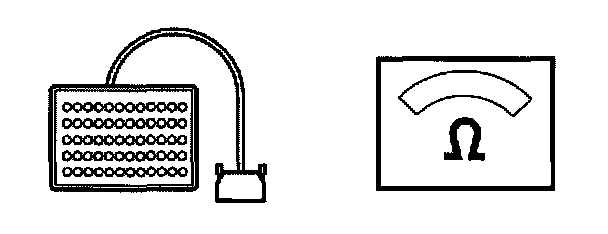

- To connect the breakout box and access the relay, see Central electronic module (CEM), replacing.
- Checking wiring and terminals.

Was a fault detected?

YES: Continue with Next Procedure. Verification
NO: Refer to Checking The Voltage Before The Fuse. Checking the Voltage Before the Fuse
