Maintenance: Locations

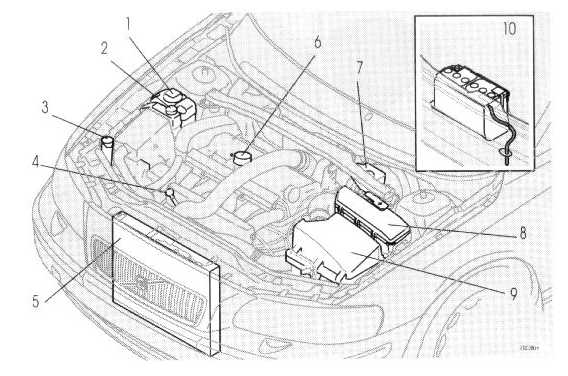

Engine compartment:
1 Expansion tank - coolant
2 Power steering fluid reservoir
3 Washer fluid reservoir
4 Dipstick - engine oil
5 Radiator/cooling fan
6 Oil filler cap - engine
7 Brake fluid reservoir
8 Relay/fuse box
9 Air cleaner
10 Battery (in the cargo compartment)
WARNING: The cooling fan may start or continue to operate (for up to 6 minutes) after the engine has been switched off.
