Signal Specification

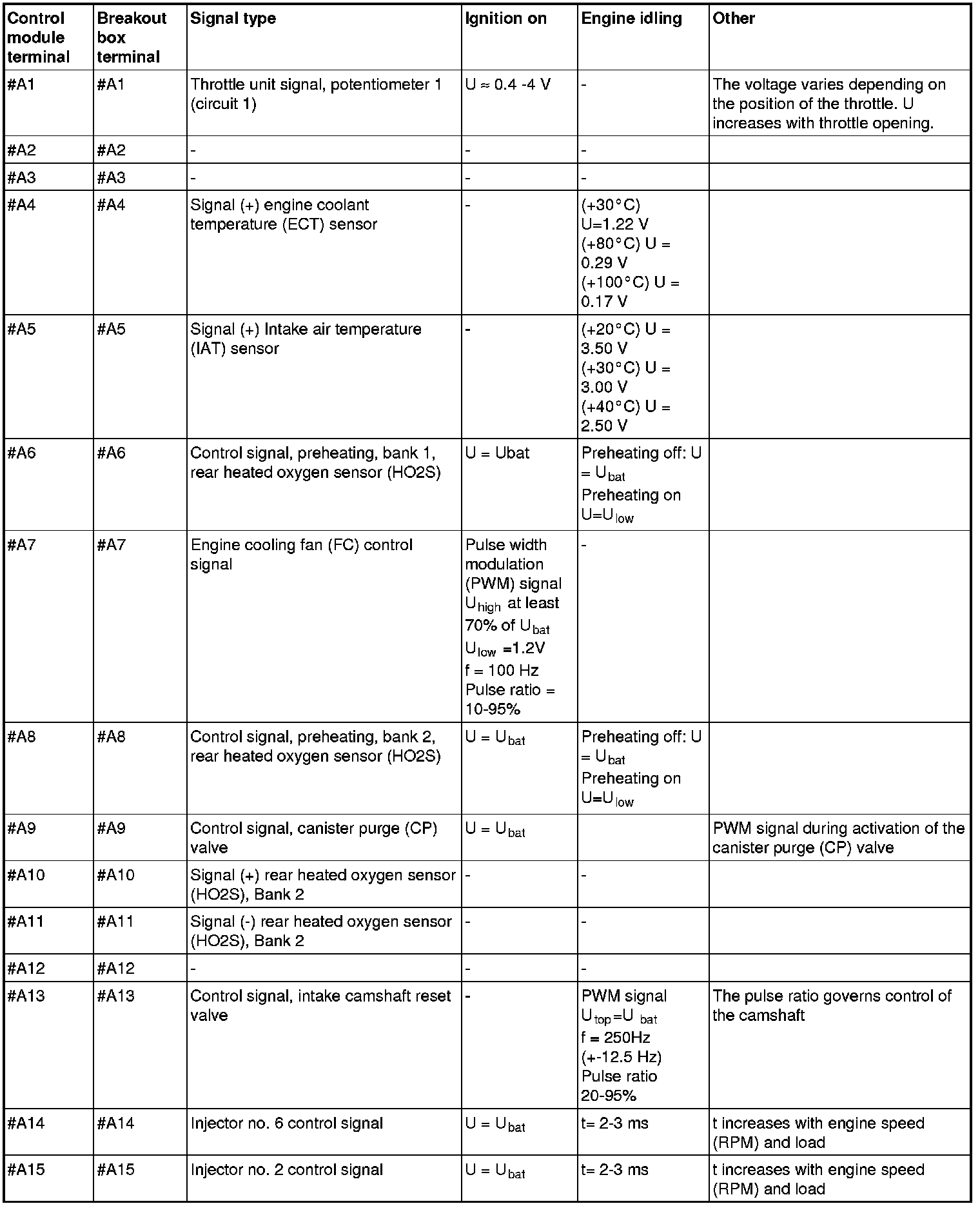

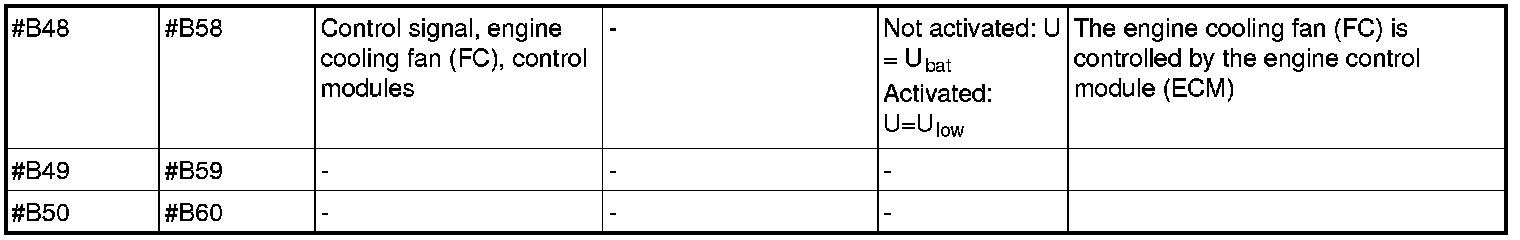

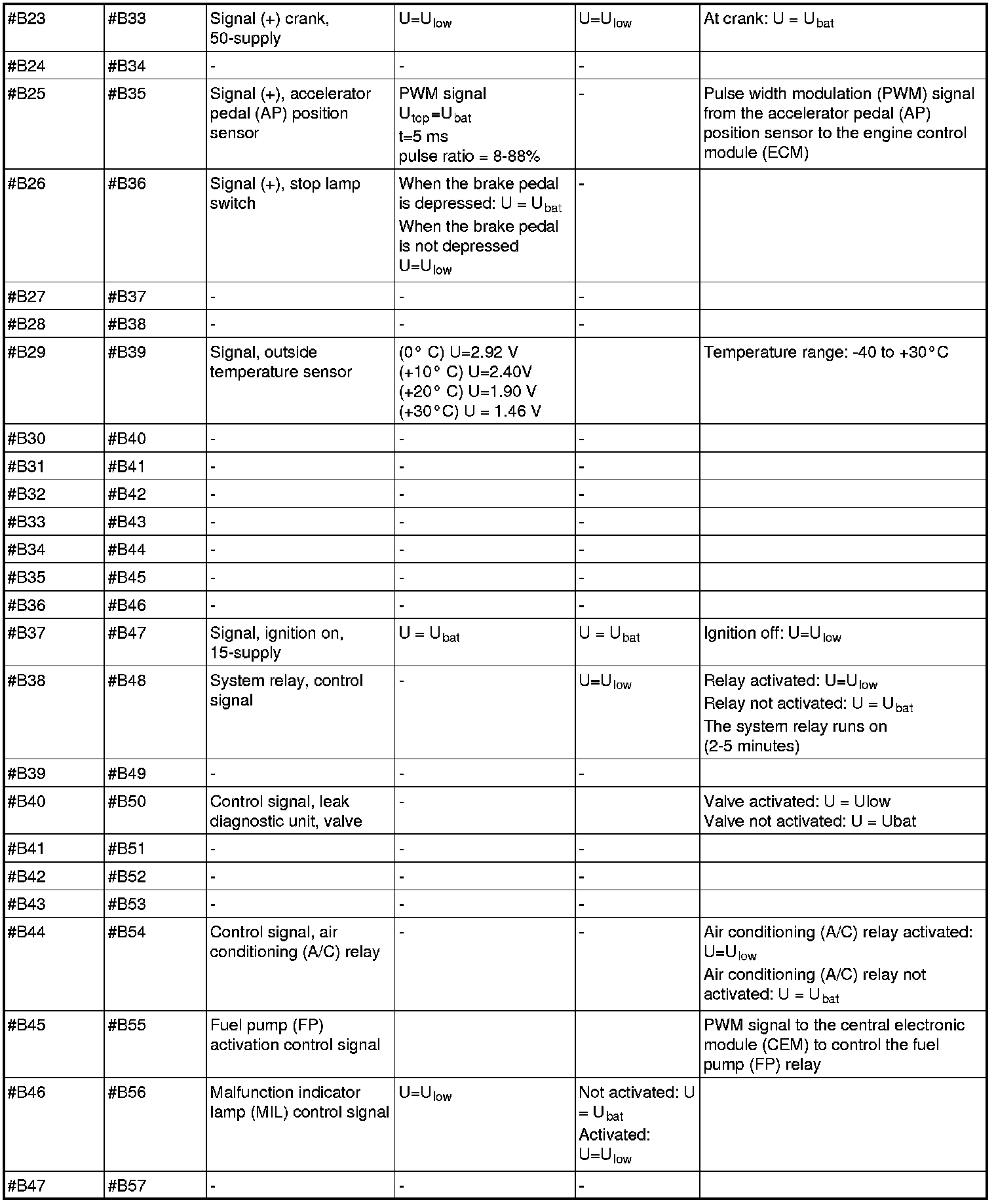

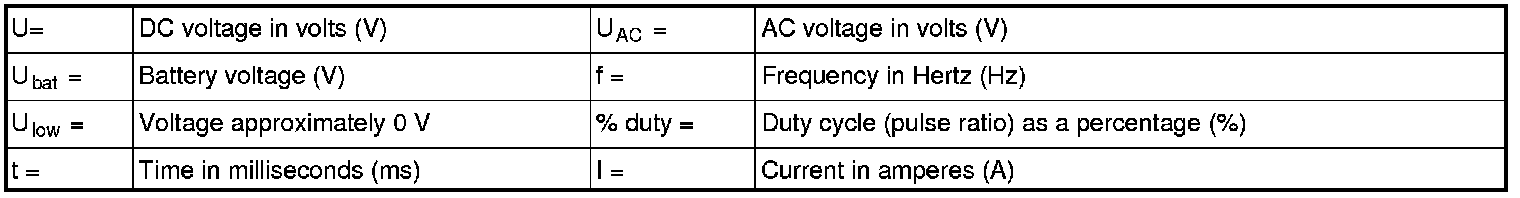

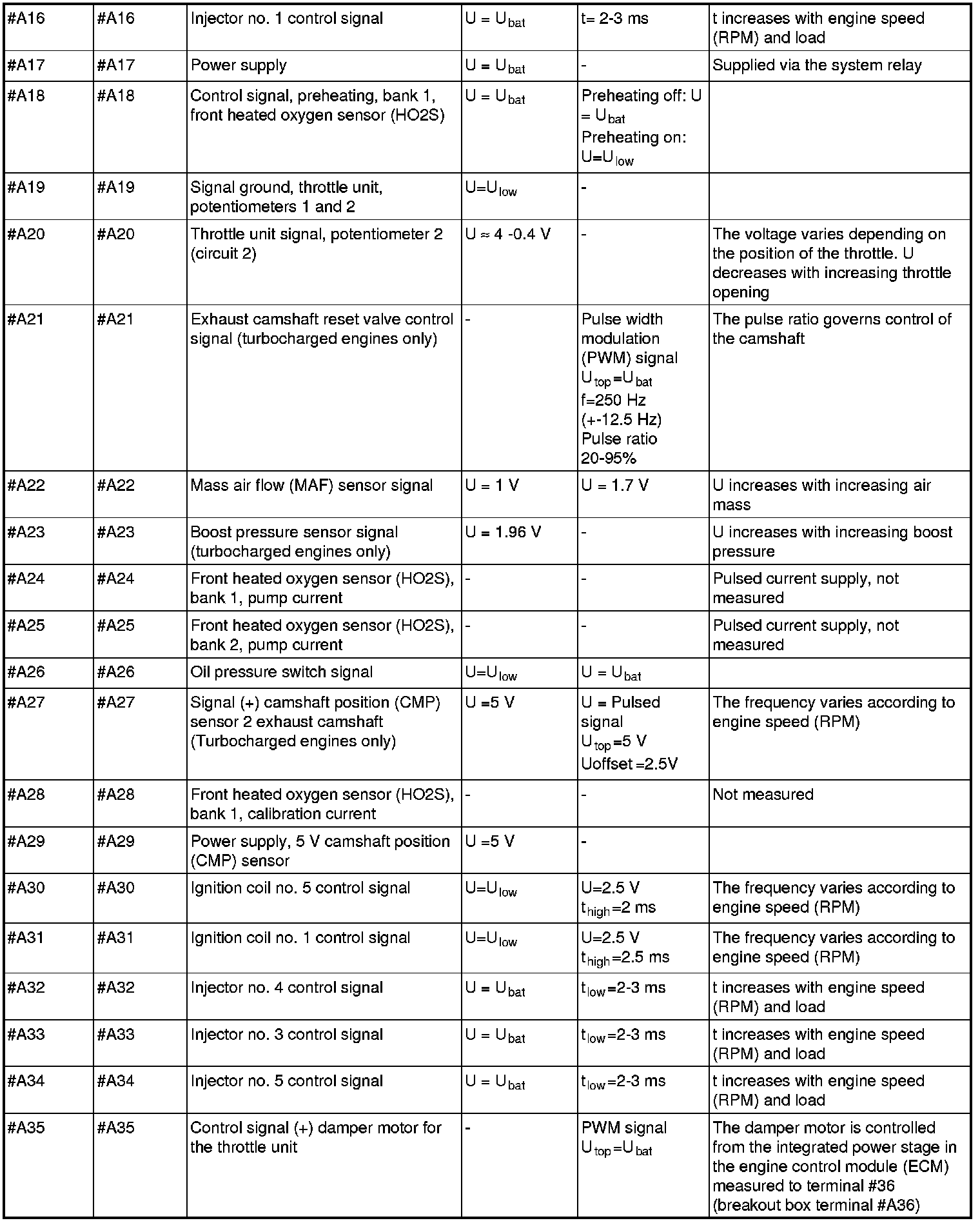

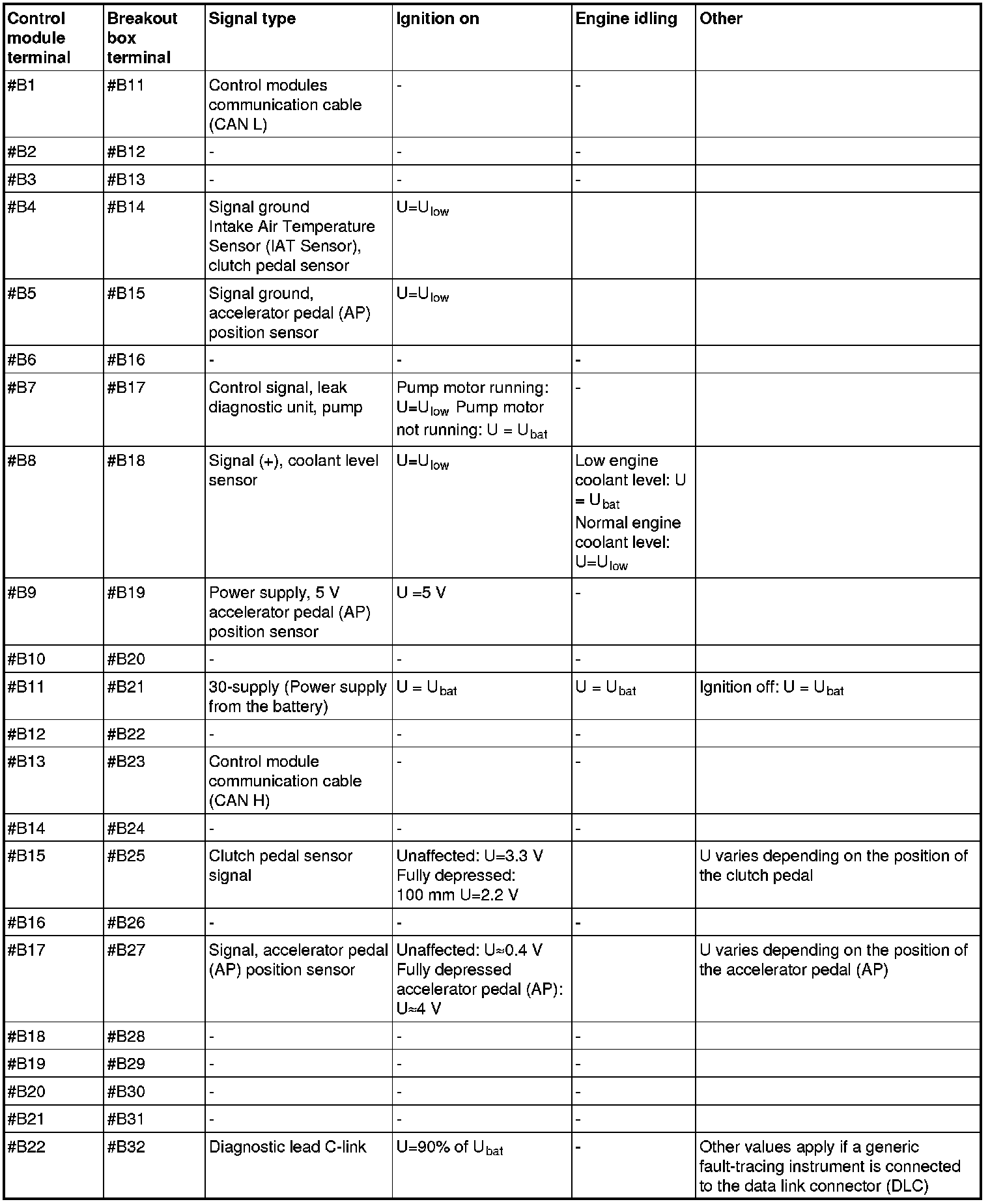

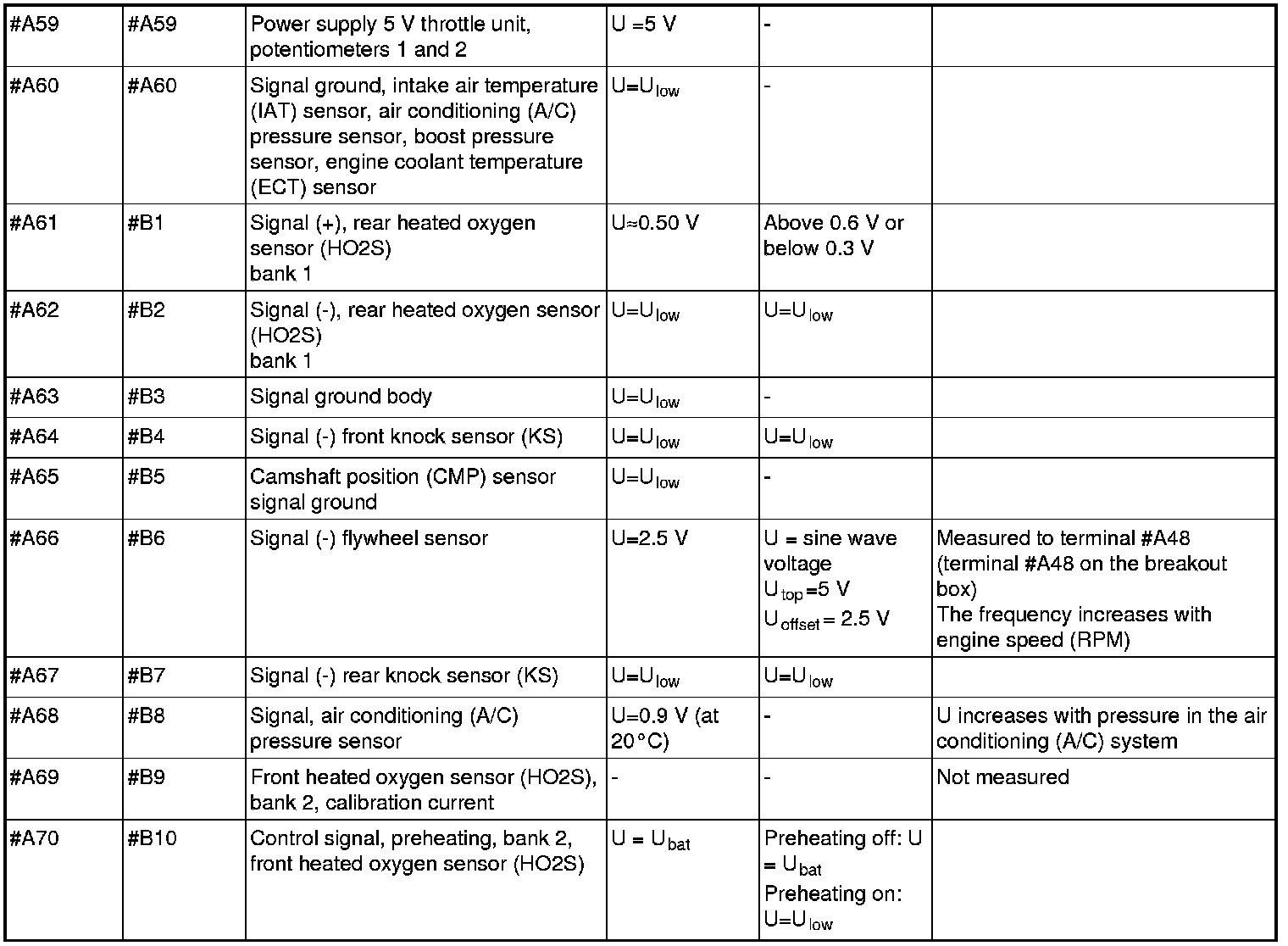

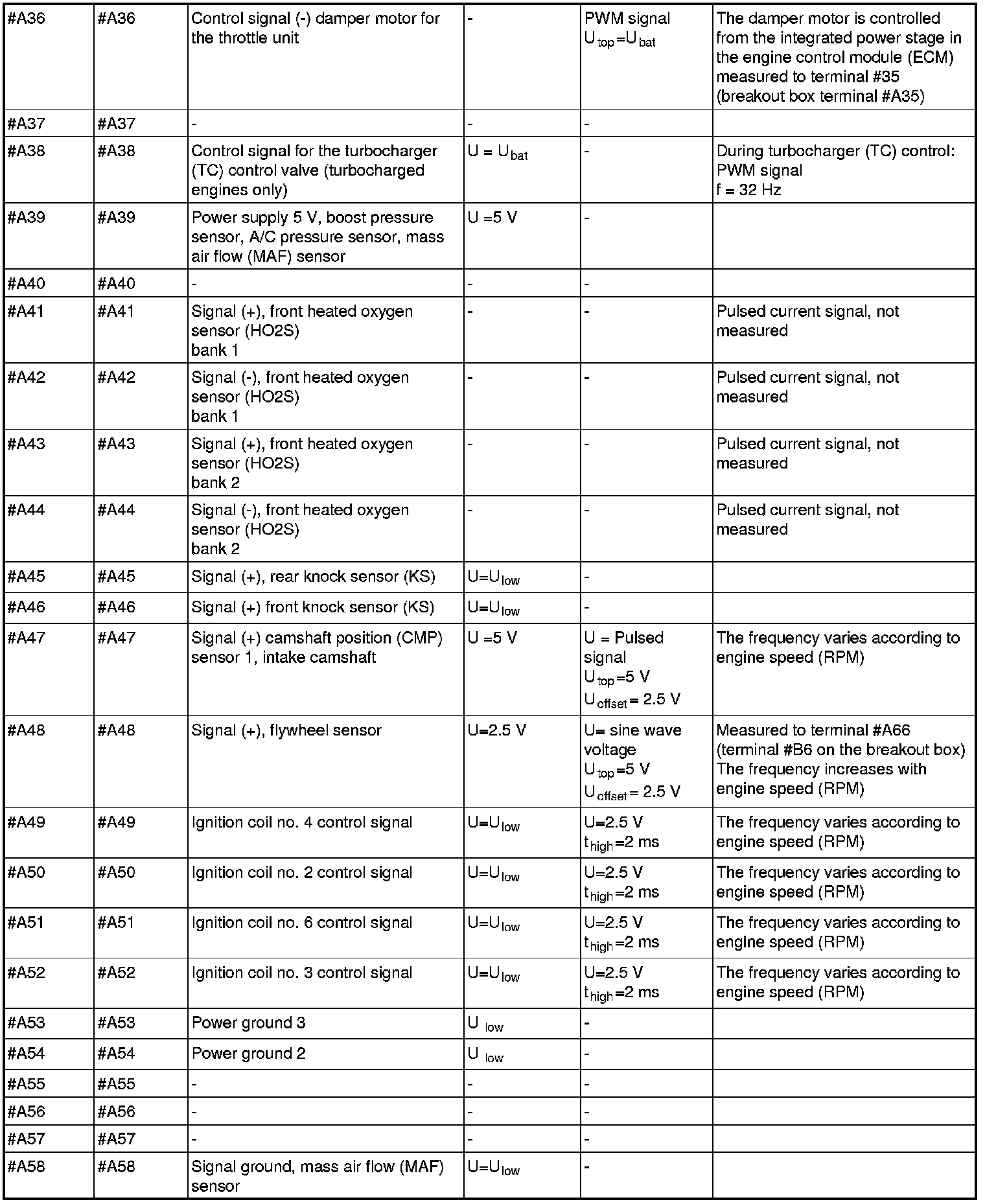

Signal specificationGeneralAll values listed below are measured between the respective terminal in column 1 (control module terminal) and terminal B3 in column 2 (breakout box terminal) unless stated otherwise in column 6 (Other).
Note! It is important to connect the breakout box and check the ground terminals before taking readings.
