Spacer Ring





Replacing The Spacer Ring

Special Tools: 999 5604

Removal







- Remove the clutch driven plate.
- Remove the snap ring
- Remove the spacer ring from the shaft

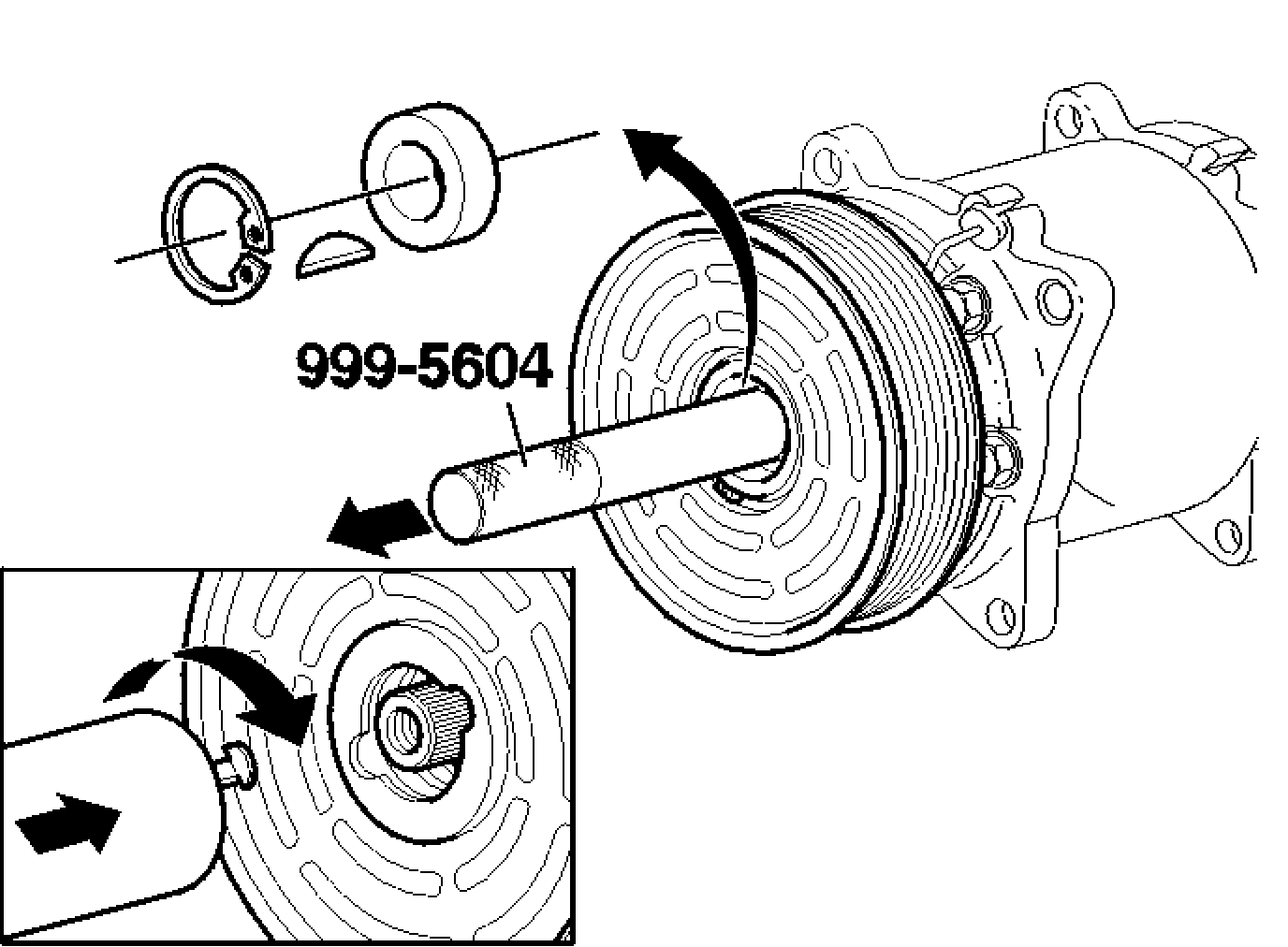

- Install the special tool 999 5604 in the socket.

Turn the tool 90 degrees

- Pull the spacer ring sleeve out to the right

NOTE: Clean all components with compressed air and a lint-free cloth.

- Check whether any components are worn or dirty. This is particularly important if remnants of the spacer ring remain.

HINT: Replace the spacer ring.

Installing The Spacer Ring







NOTE: Do not touch the inner runner section or the carbon section with your fingers.

- Apply compressor oil on all mating surfaces in the spacer ring
- First install the spacer ring on special tool 999 5604.
- Carefully position the tool and the spacer ring on the shaft. Do not turn it.
- Press the spacer ring into place.

Finishing







Installation
- The wedge in the shaft
- The adjustment rings
- The felt spacer rings and the holder (the holder must be at exactly the same level as the sleeve). Use a drift and a cover.
