Main Relay (Computer/Fuel System): Locations
Fuse/Relay Identification and Location
Fuses in the Engine Compartment
Engine Compartment Fuses:

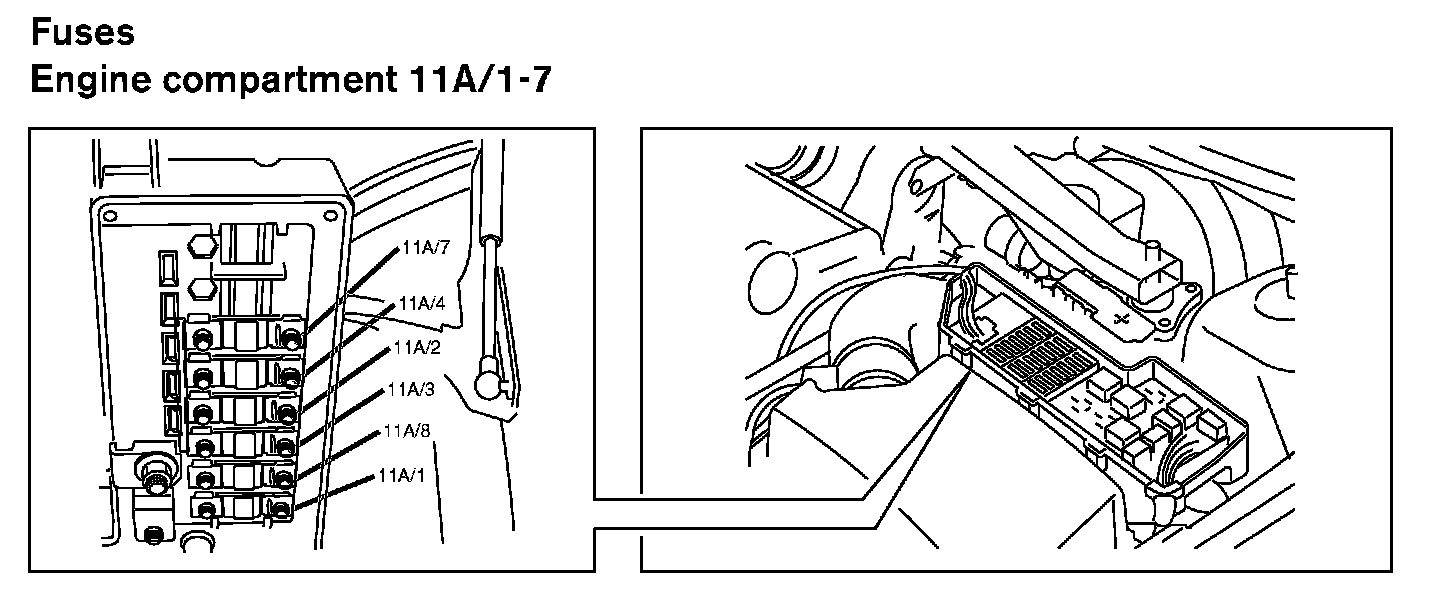

Fuses 11A/1-7:
Engine Compartment Fuses:

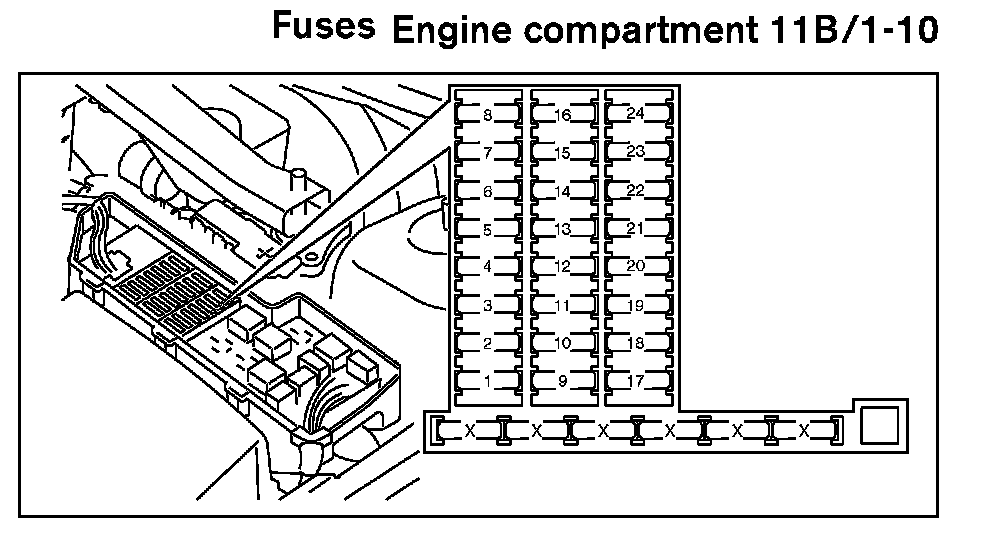

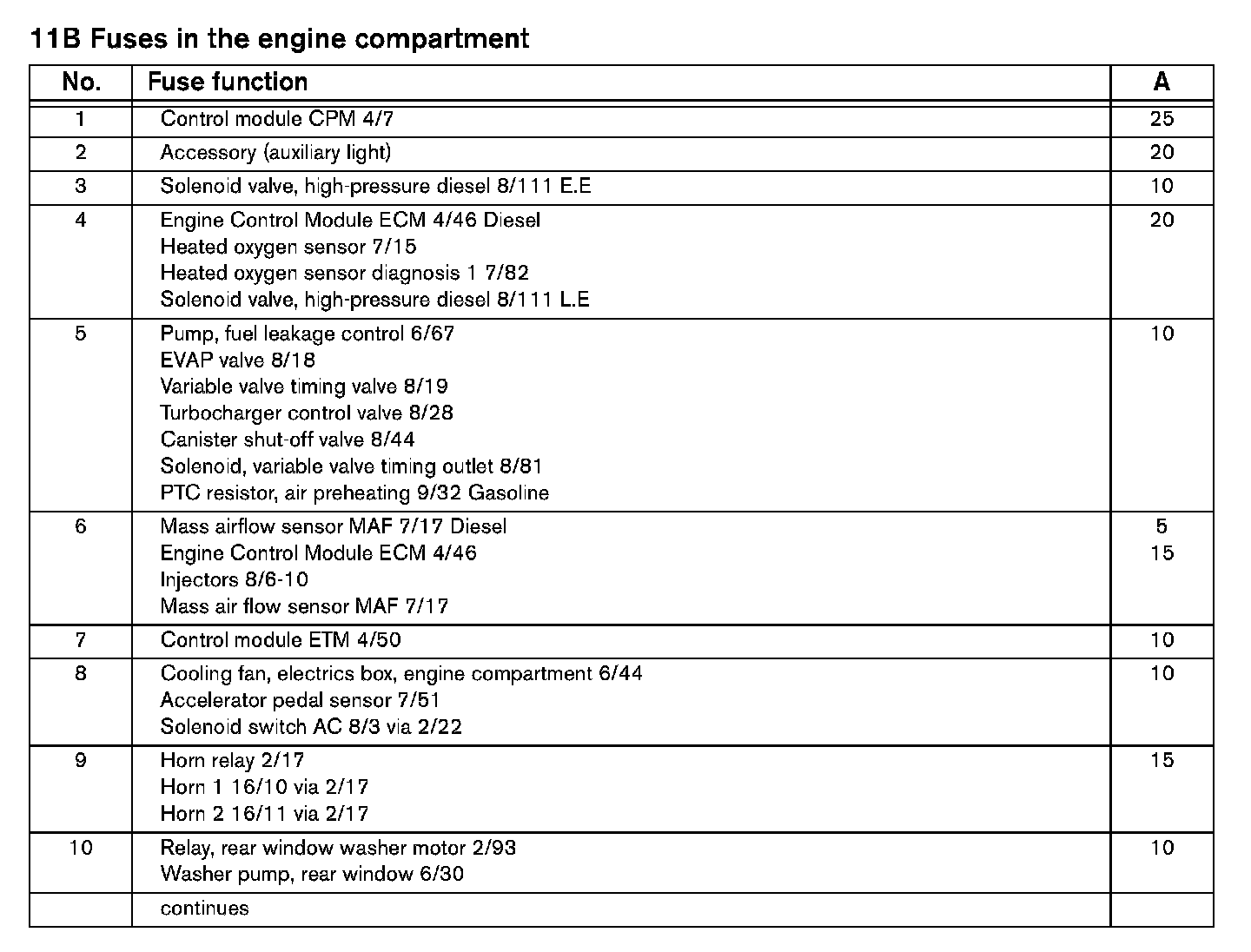

Fuses 11B/1-10:

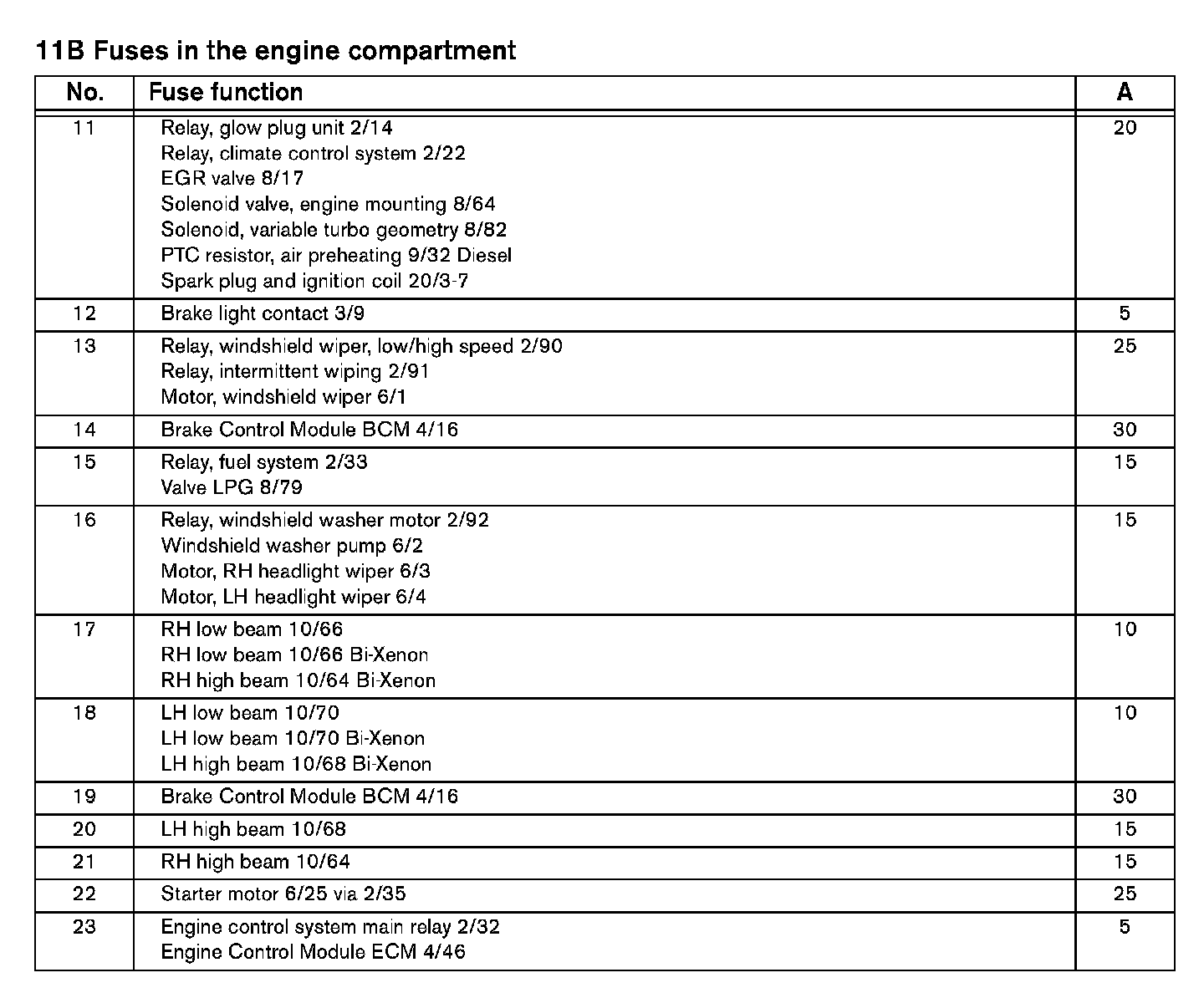

Fuses 11B/11-23:
Fuses in the Passenger Compartment
Passenger Compartment Fuses:

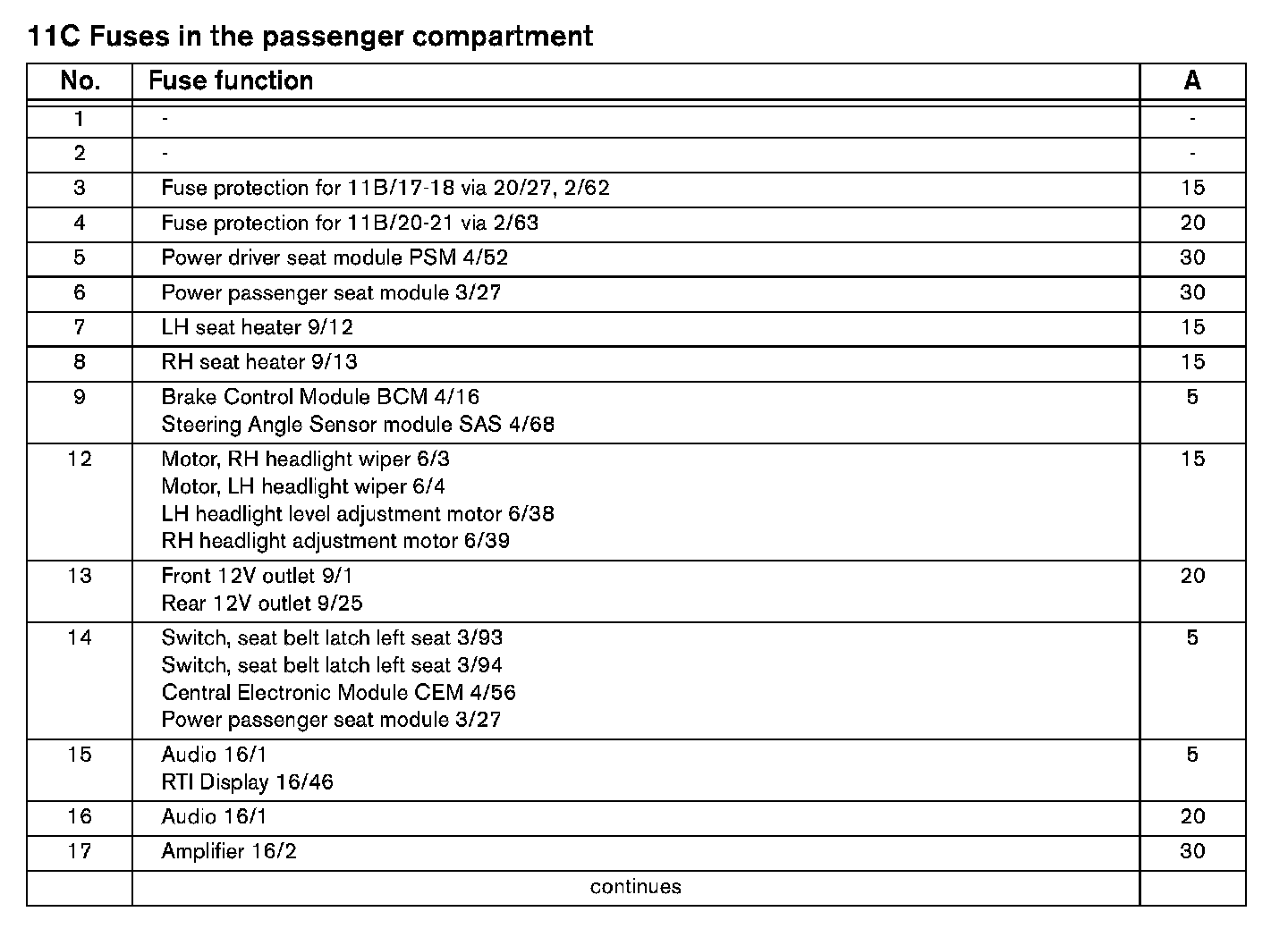

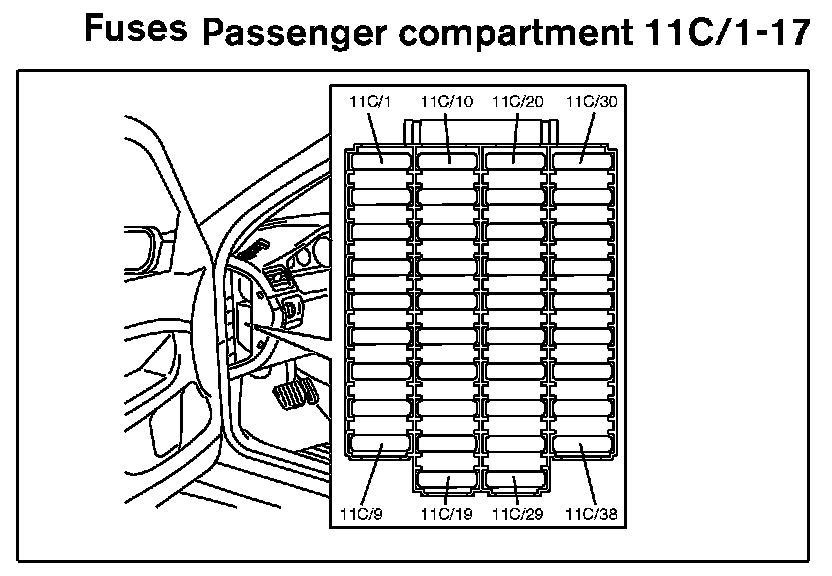

Fuses 11C/1-17:

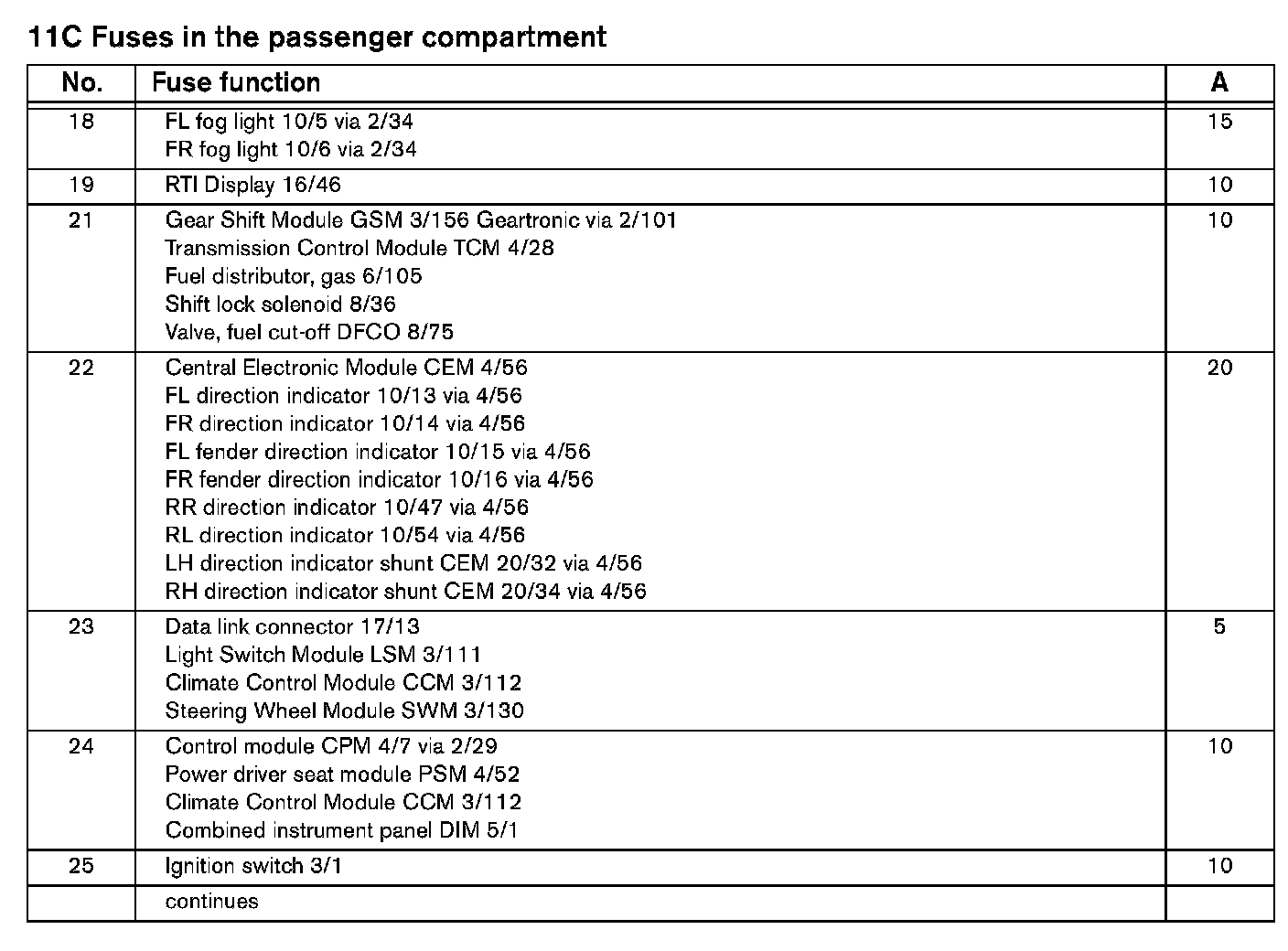

Fuses 11C/18-25:

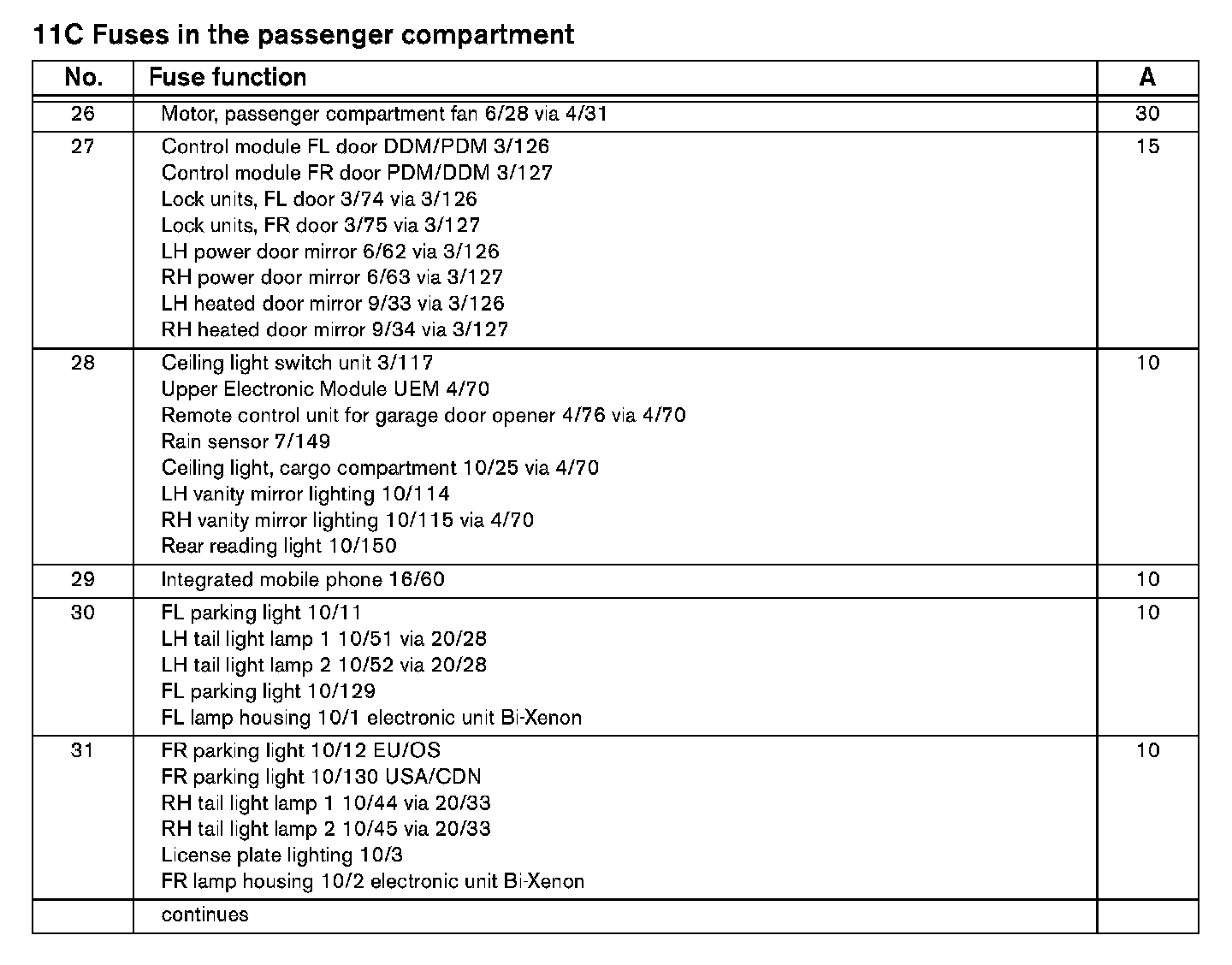

Fuses 11C/26-31:
Fuses 11C/32-38:
Fuses in the Cargo Area/Compartment
Cargo Compartment Fuses:

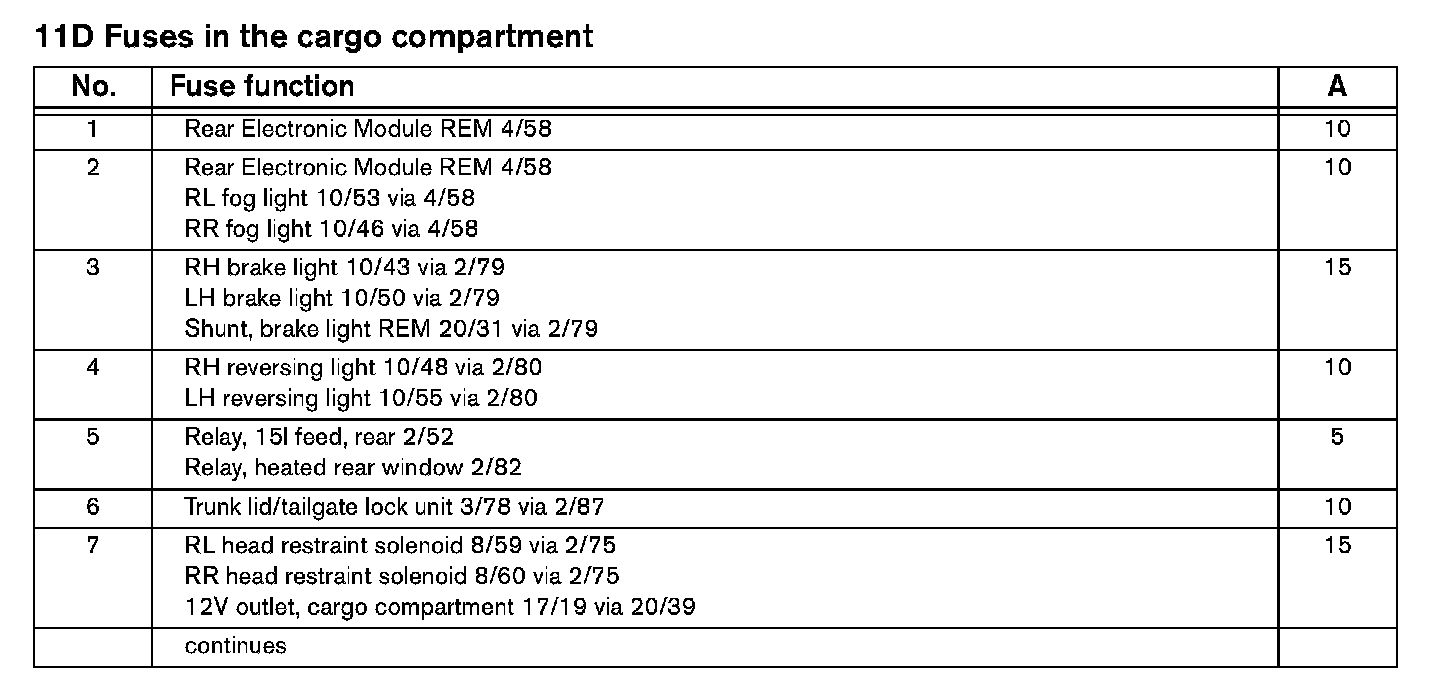

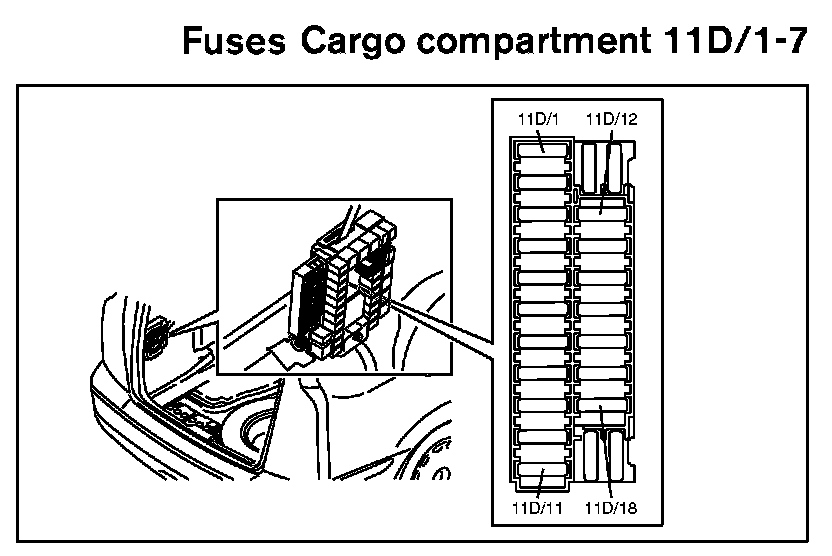

Fuses 11D/1-7:

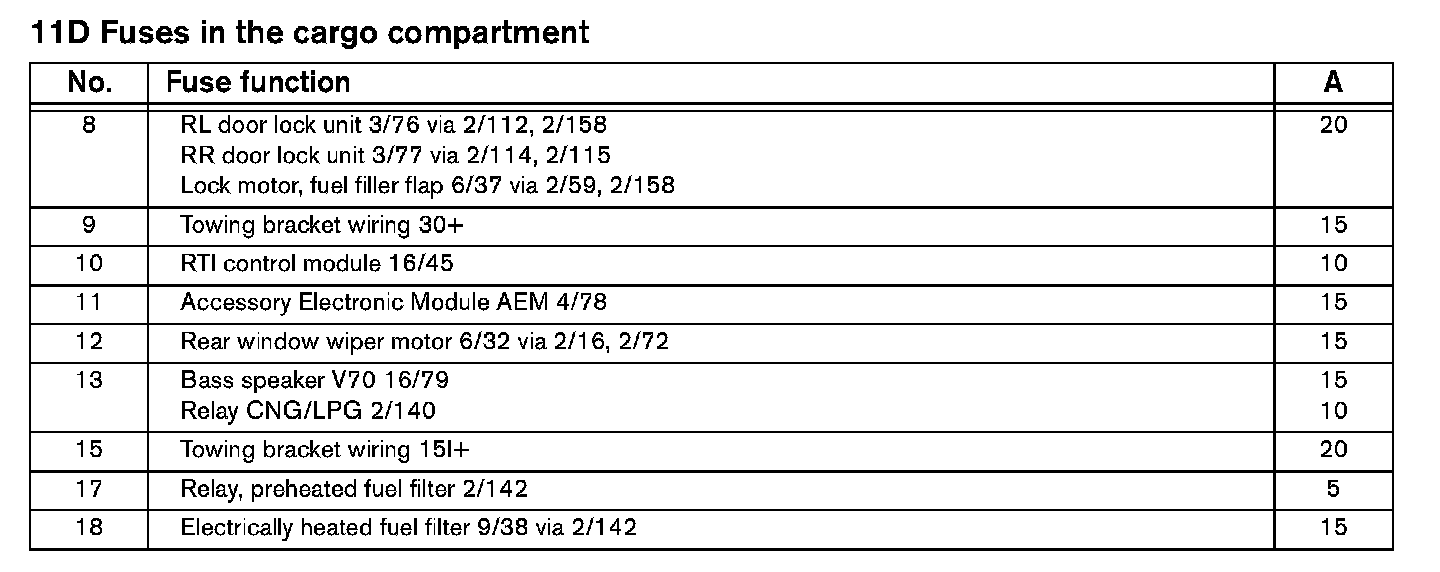

Fuses 11D/8-18:

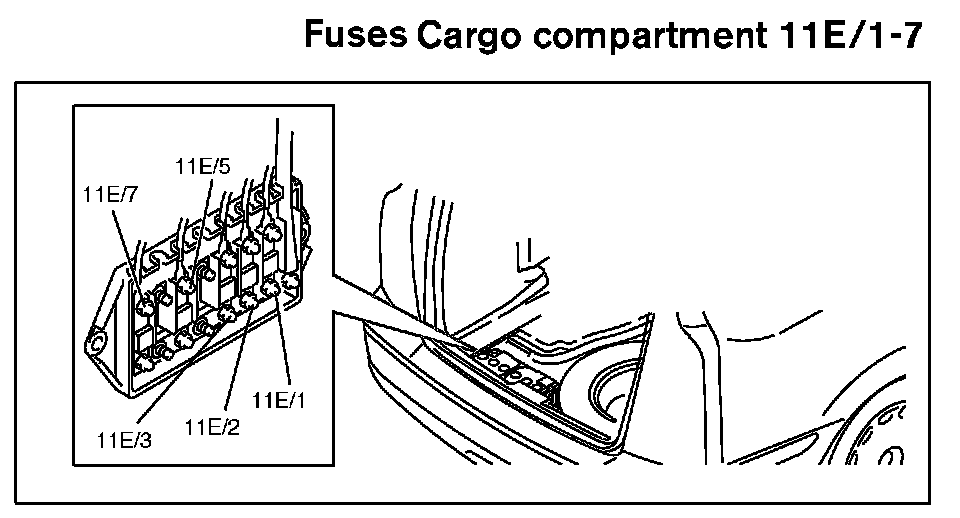

Cargo Compartment Fuses:

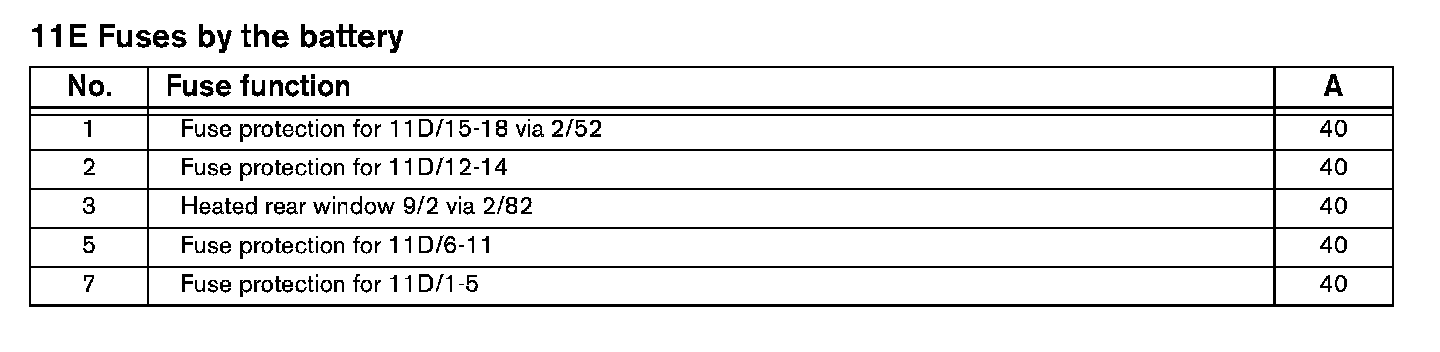

Fuses 11E/1-7:
Relays

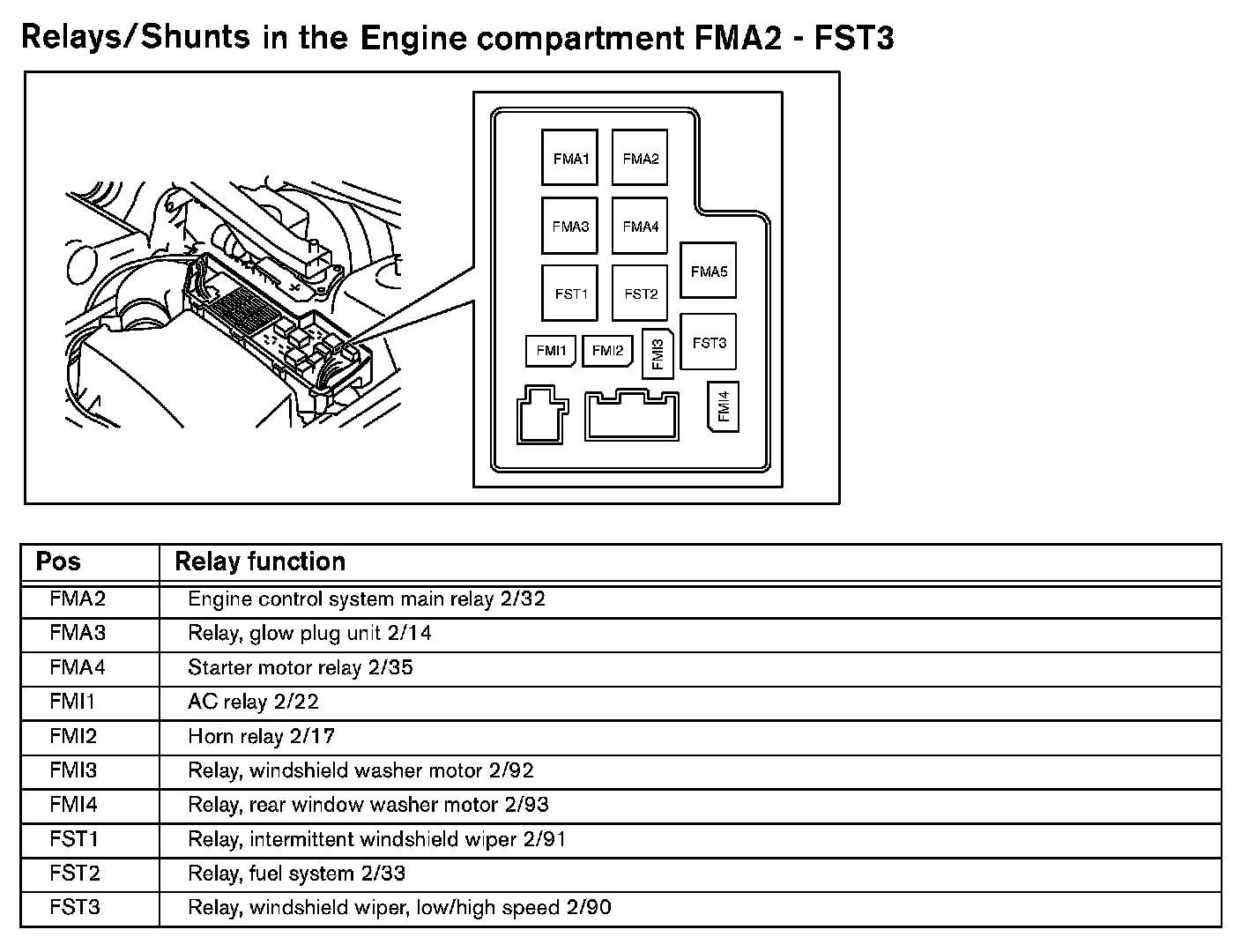

Engine Compartment Relays, FMA2 - FST3:

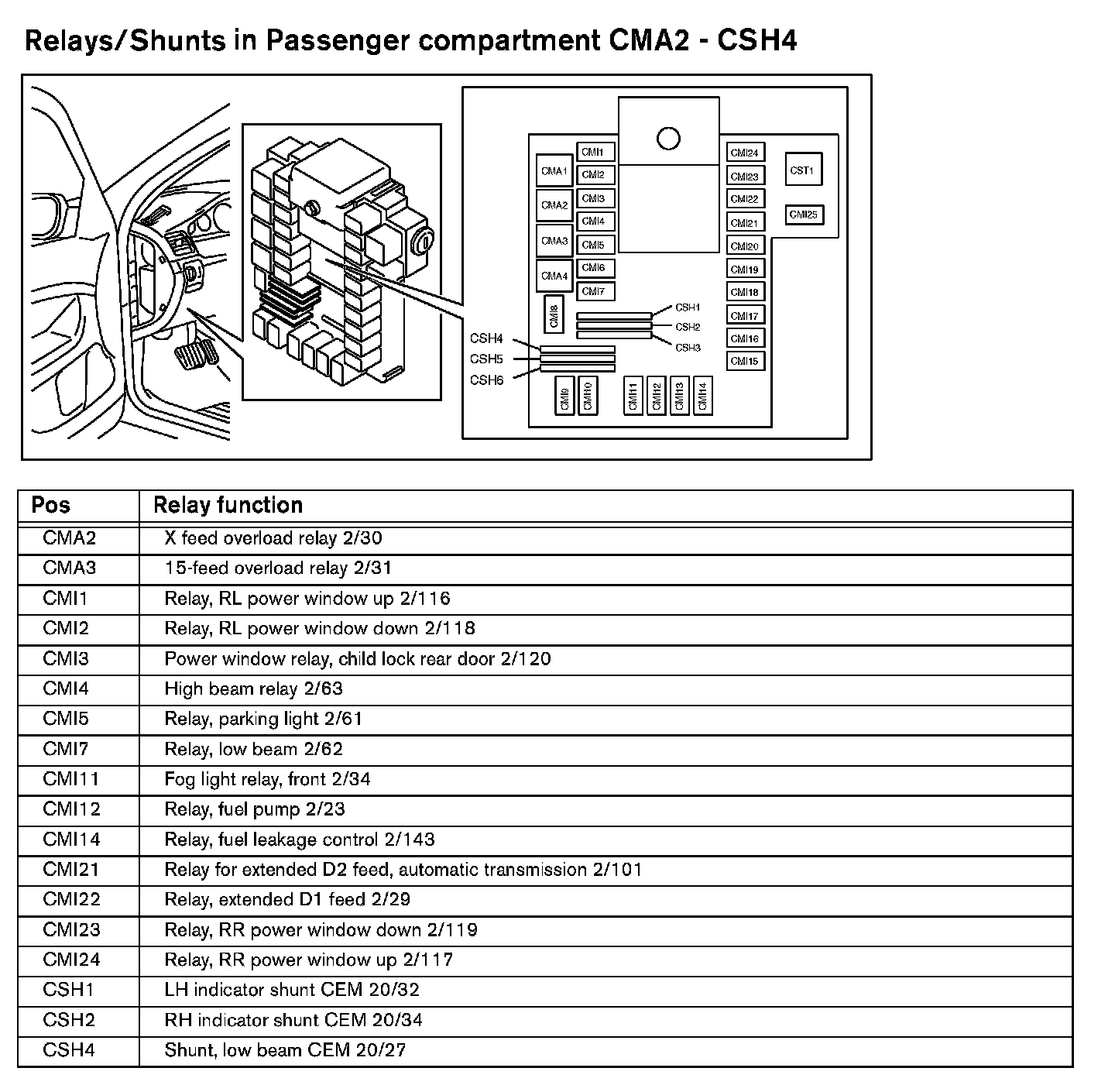

Passenger Compartment Relays, CMA2 - CSH4:

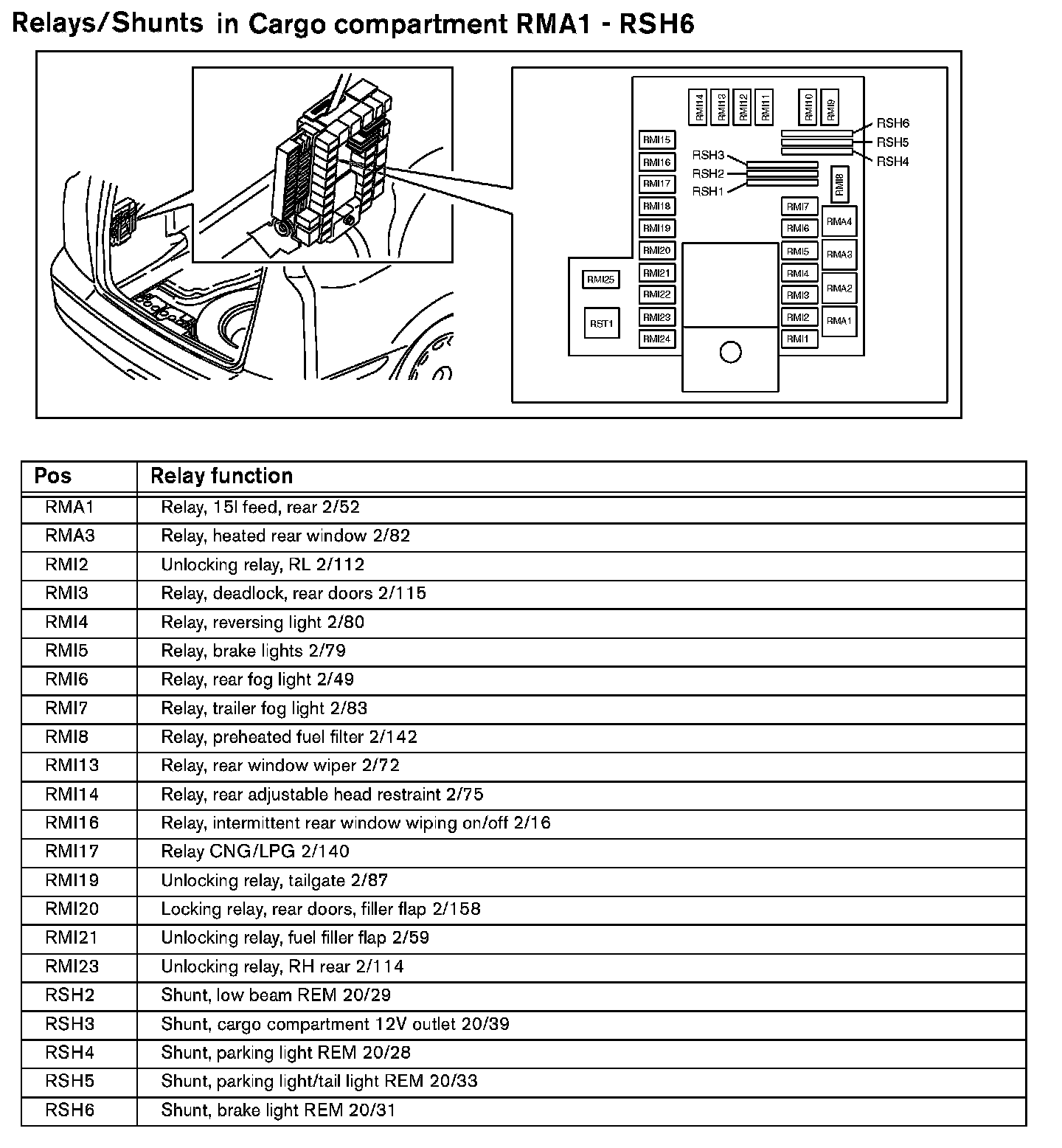

Cargo Compartment Relays, RMA1 - RSH6:

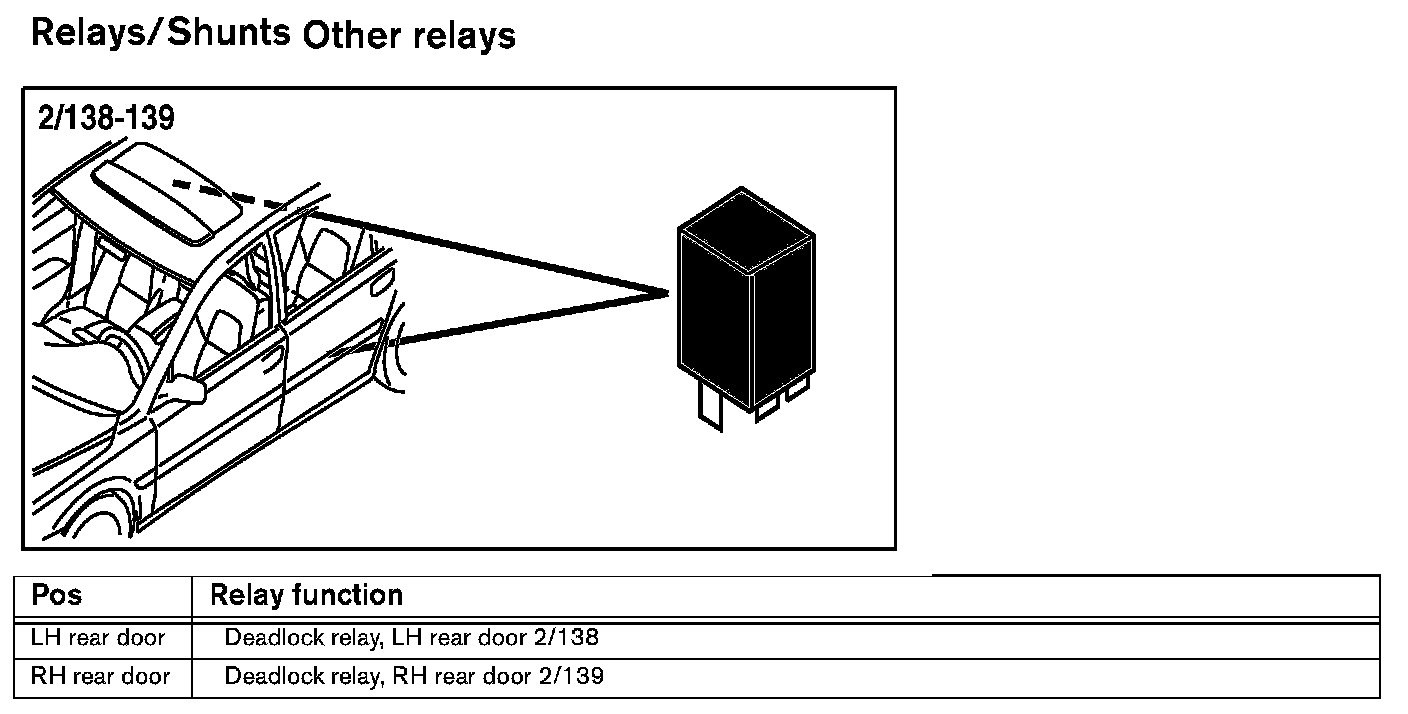

Other Relays:
