Brake Switch (Cruise Control): Service and Repair

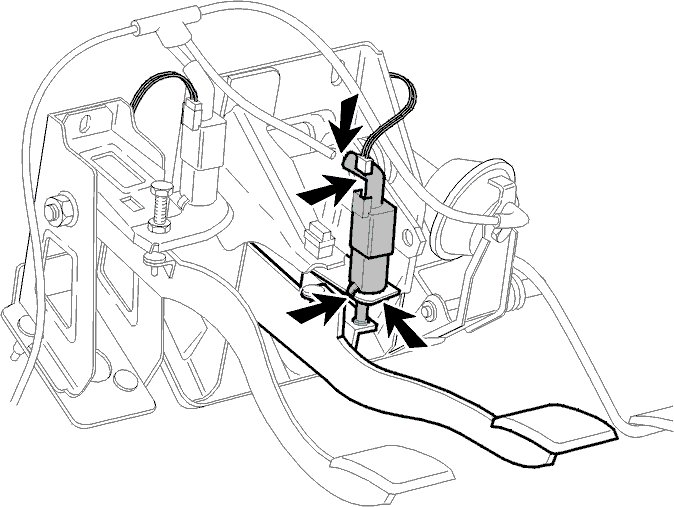

Brake pedal vacuum valve, replacementReplacement of brake pedal vacuum valve -
Remove connector from vacuum valve.
-
Remove hose from vacuum valve.
-
Press in both catches and remove vacuum valve from support.
Reinstall in reverse order.
