Heating and Air Conditioning: Locations

Climate control

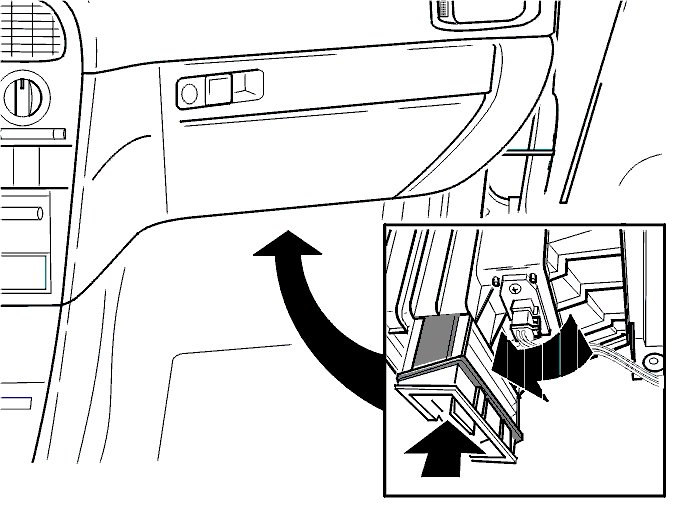

Passenger compartment




- 1 Integrated relay / fusebox 11/B
- 2 Climate control module / control panel / passenger compartment temperature sensor (ECC)
- 3 Sun sensor (ECC)
- 4 Relay box 15/14
- 5 Seat heater module.

Data Link Connector (DLC)

Location of Components DSA, Data Link Connector DLC:

On left of center console (right-hand drive cars on the right-hand side of center console).

Engine compartment




- 1 Integrated relay / fusebox 11/A
- 2 Pressure switch (ECC, MCC)
- 3 Receiver/drier (ECC, MCC)
- 4 Condenser (ECC, MCC)
- 5 Condenser fan (ECC, MCC)
- 6 Compressor (ECC, MCC).

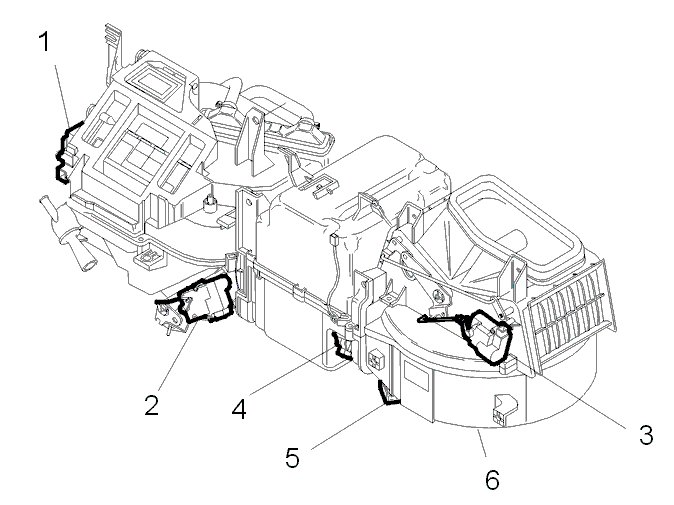

Climate control unit




- 1 Air distribution damper motor
- 2 Temperature damper motor
- 3 Recirculation damper motor
- 4 Blower fan power unit
- 5 Blower fan relay (maximum relay)
- 6 Blower fan.

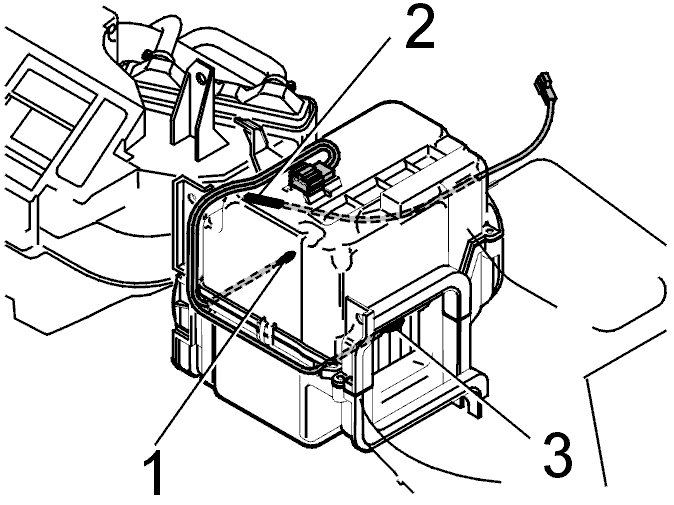

Intermediate section




- 1 Evaporator temperature sensor (ECC, MCC)
- 2 Engine coolant temperature (ECT) sensor (ECC)
- 3 Outside temperature sensor (ECC).

Pollen filter




- Pollen filter.
