Pressure Sensor

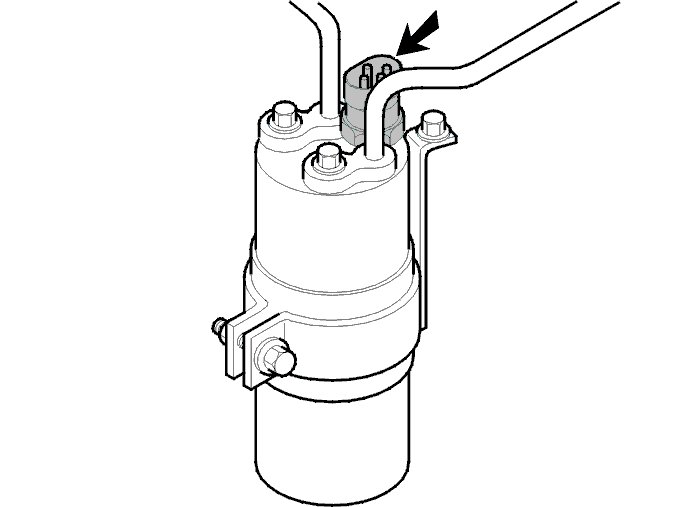

Pressure sensor

Removing the pressure sensor




Read the safety precautions and instructions according to Pipes and hoses Removal and Replacement.
Drain the refrigerant from the system.
Disconnect the connector.
Unscrew the pressure sensor.
Lubricate the new O-rings using A/C compressor oil.

Installing the pressure sensor
Install the pressure sensor.
Tighten the pressure sensor. Tighten to 18 Nm.
Connect the connector.
Fill and check the system according to Pipes and hoses Removal and Replacement.
