Refrigerant Temperature Sensor: Service and Repair

Replace the refrigerant temperature sensor

Remove the lower cover and the tunnel side panel on the passenger side. [1][2][3]Procedures

Pull a section of the floor carpeting to one side.

Disconnect the wiring and the connectors.

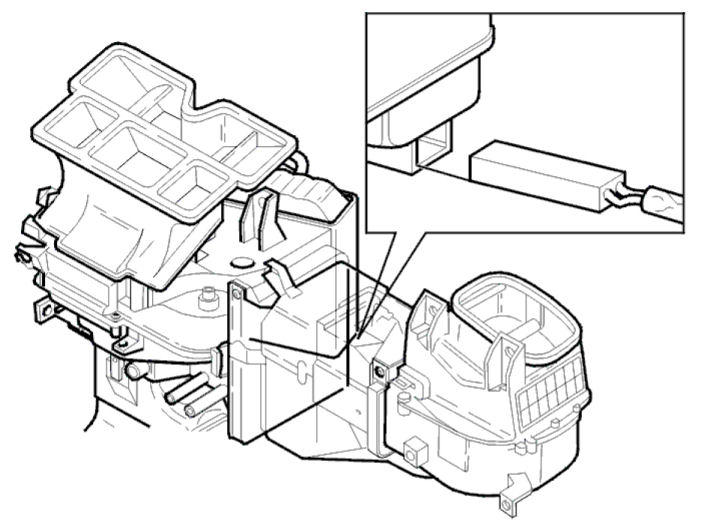

Carefully remove the sensor from the sleeve.

Install in reverse order.

Secure the sensor using the mounting components (ensure that the sensor has good contact with the heat exchanger)
