Power and Ground Distribution: Service Precautions
Bridging NOTE: When bridging, be careful not to damage anything.

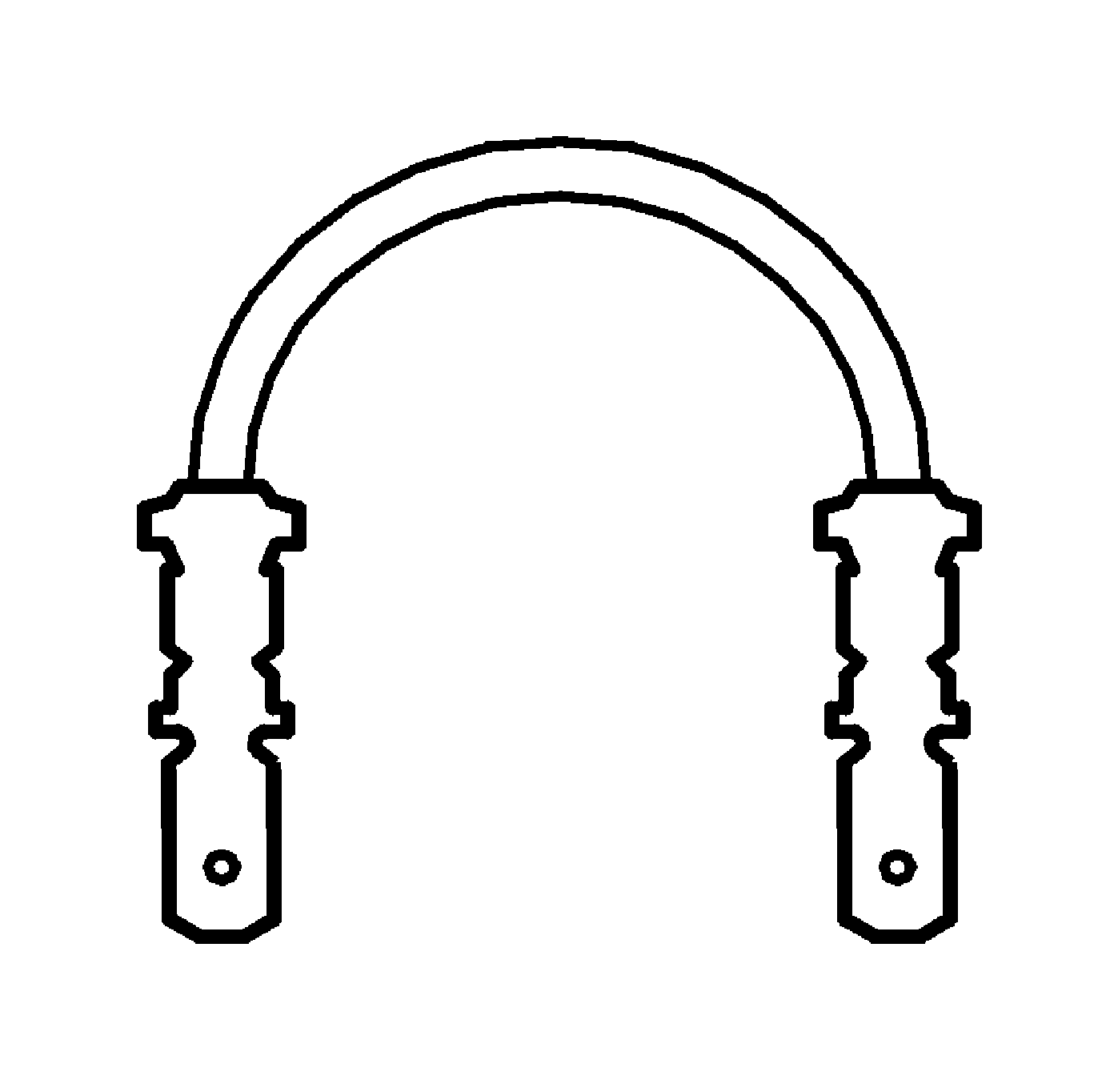

Install the bridge in the positions shown for control signals (usually ground signals), use a short lead with the ends shaved bare.
When bridging at positions 1.1, 1.2 and 1.11 at battery voltage, use a thick lead (e.g.
1.5 mm) and proper lead shoes.
