Connecting the Breakout Box (Central Electronic Module)

Connecting the breakout box

Special tools: 951 1511, 951 1428, 951 1499

Connecting the breakout box







- Ignition off.
- Release the central electronic module (CEM).

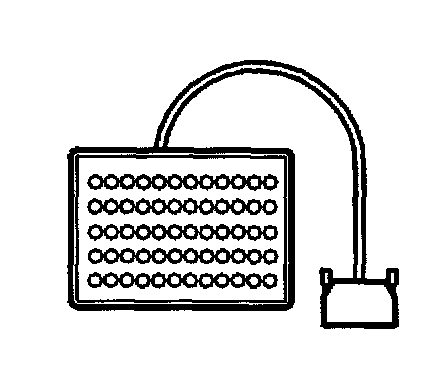

- Disconnect the four control module connectors. Connect adapter 951 1511(26-18-16-12 pin) to the control module connectors and connect breakout box 951 1428 and wiring 951 1499to the adapter.

Disconnect the breakout box in reverse order.

Other information:

- To access/replace the central electronic module (CEM).
- For information about the signals and other values, see Signal specifications.
