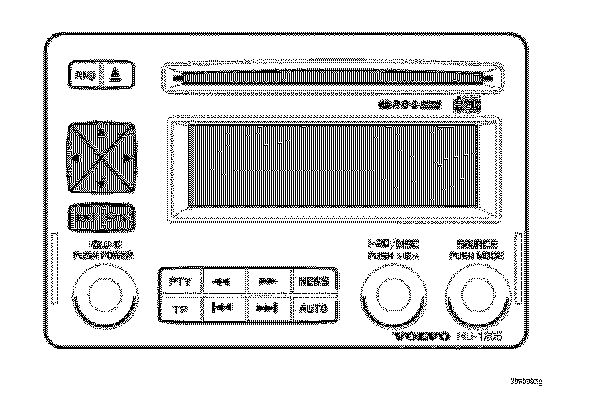

Radio/Stereo

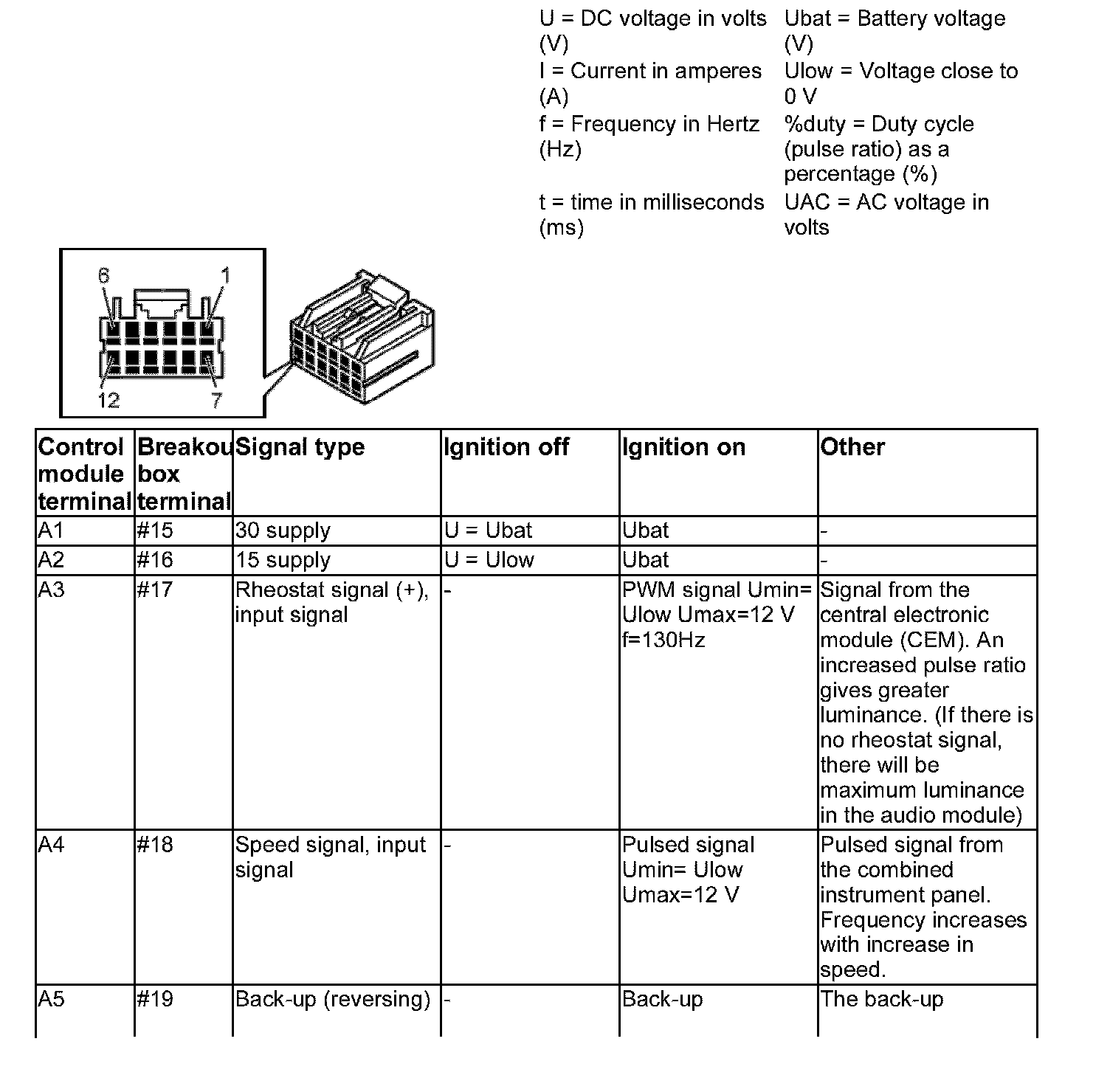

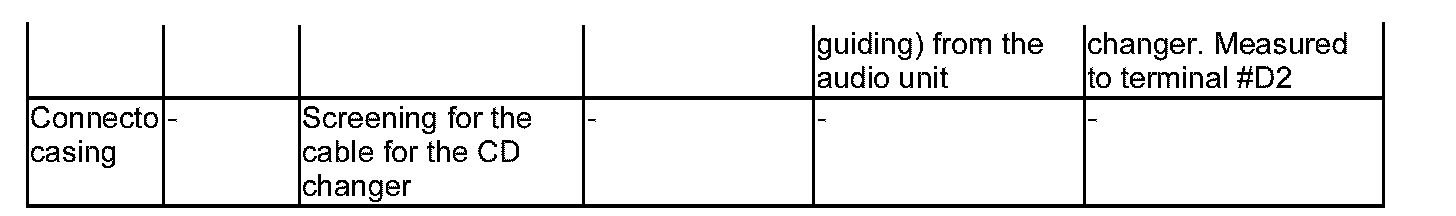

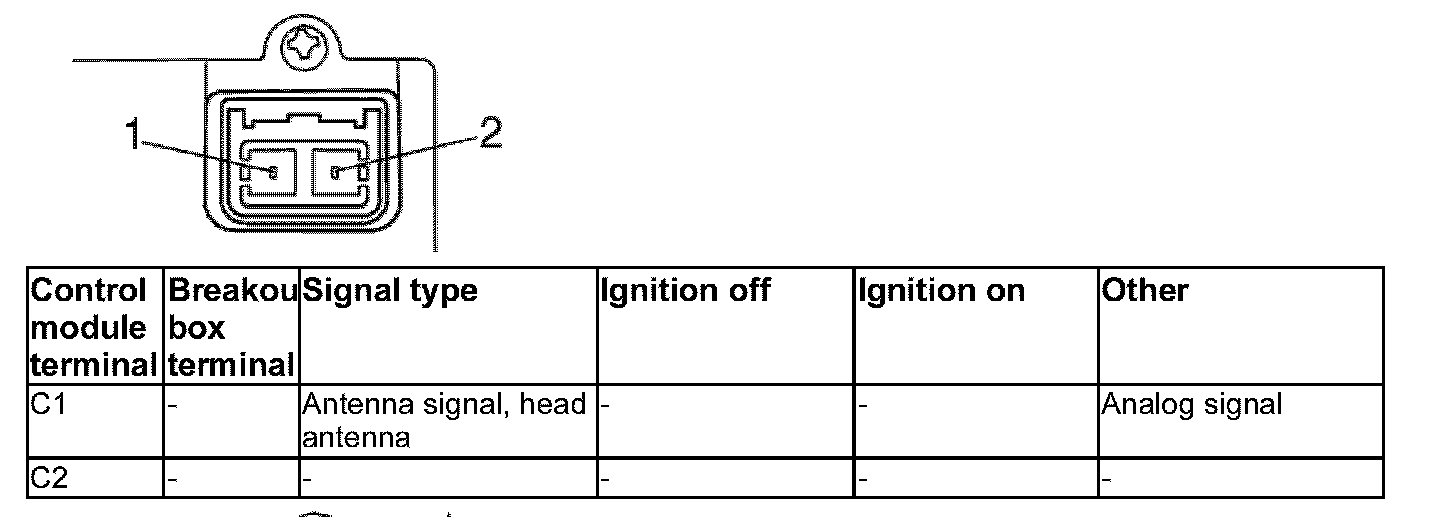

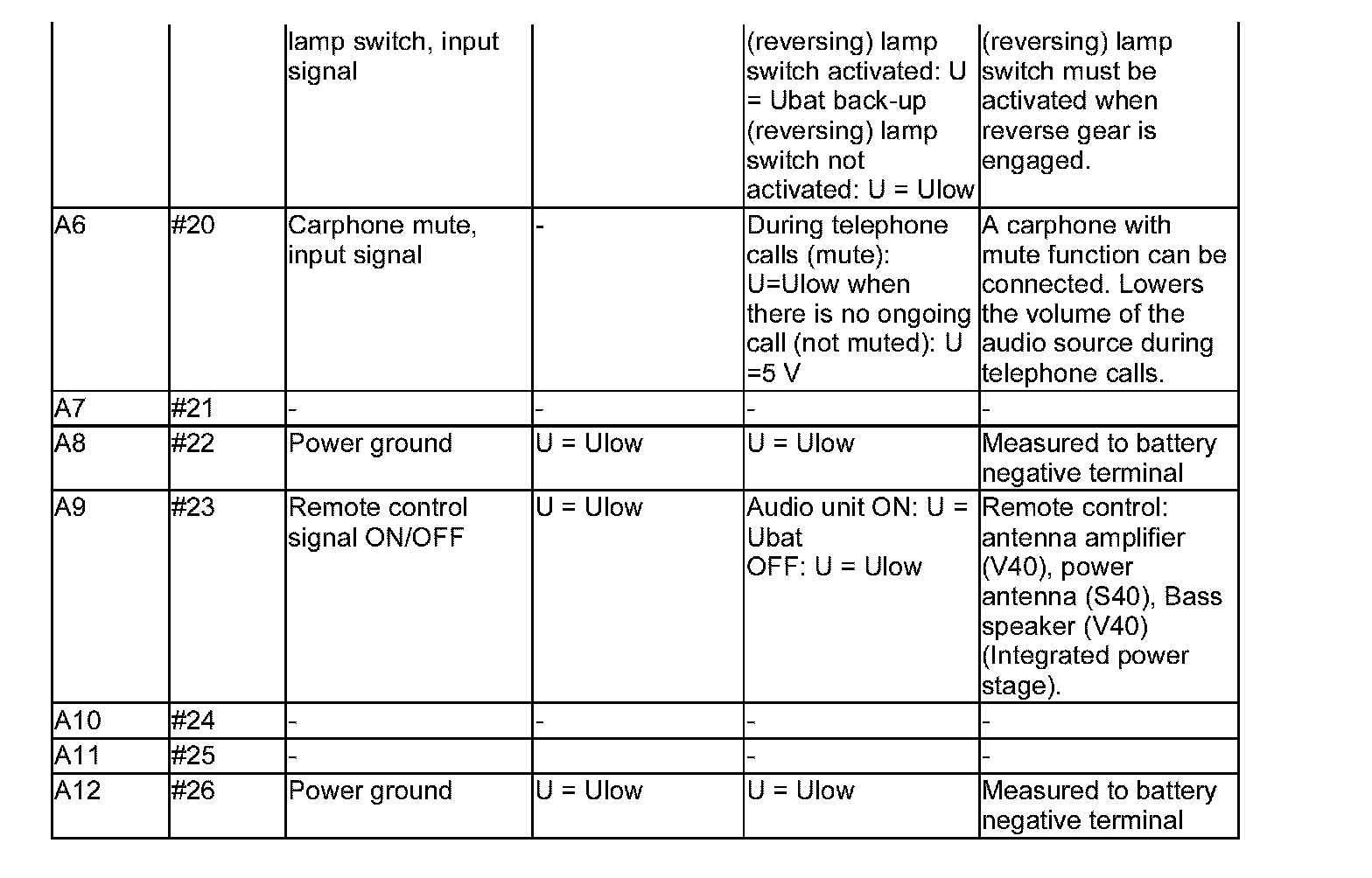

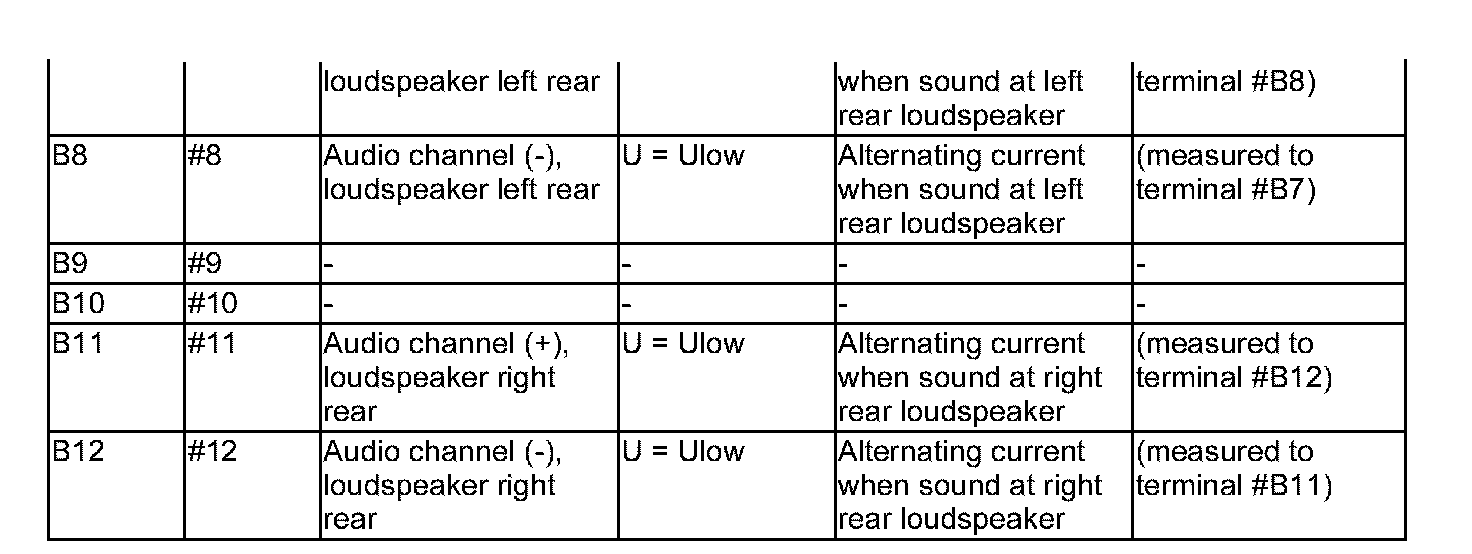

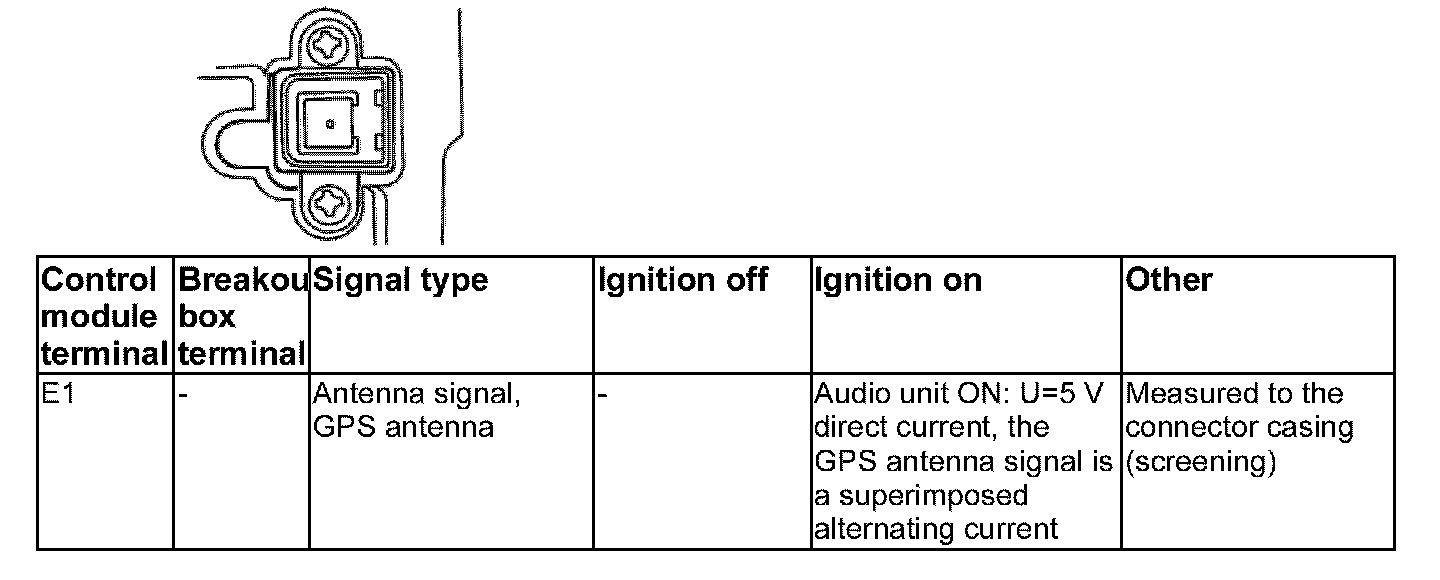

All values listed below are measured between the respective terminal in column 1 (control module terminal)and terminal A12 (power ground) unless stated otherwise in column 6 (Other). It is important to read about the breakout box connection and checking ground terminals before readings are taken.
