Checking the Control Module
Checking The Control Module -

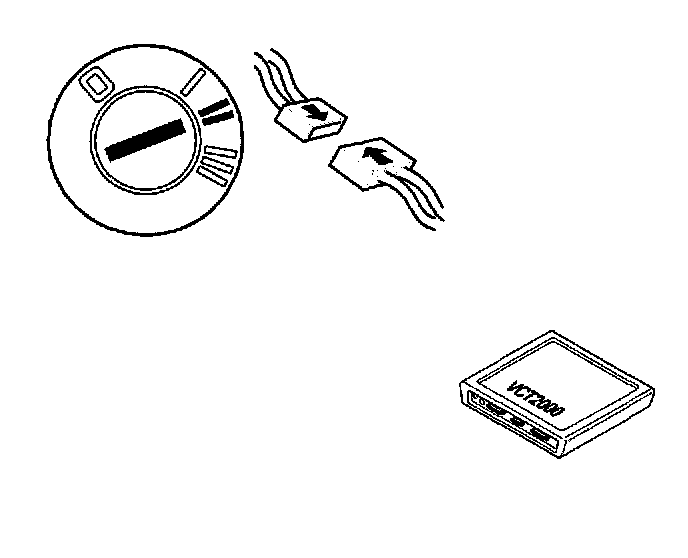

Ignition on.
-
Gear selector in position P.
-
Activate solenoid S3.
The value should change between OFF and ON.
Does the value change between OFF and ON? YES: Continue with Next Procedure. Refer to Fault-Tracing Information.
NO: Refer to Replacing the Control Module.
Replacing the Control Module
