Manifold Pressure/Vacuum Sensor: Service and Repair






Temperature and manifold absolute pressure sensor (MAPT)

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the Front Bumper cover
Remove the front bumper cover. Service and Repair

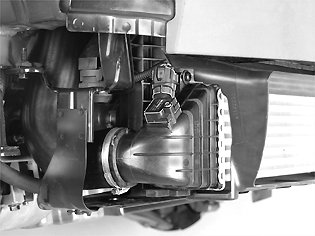

Removing the Pressure and Temperature sensor




Disconnect the connector for the sensor.

Remove:
- the screw for the sensor
- the sensor.

Installation

Note! For tightening torques, see Specifications. Tightening Torque

Installing the Pressure and Temperature sensor

Install:
Hint: Use petroleum jelly or similar on the O-ring to make installation easier.

the sensor
- the screw for the sensor. Tighten. Connect the connector for the sensor.

Installing the front bumper cover
- Install the front bumper cover. Service and Repair
