Positive Crankcase Ventilation: Locations

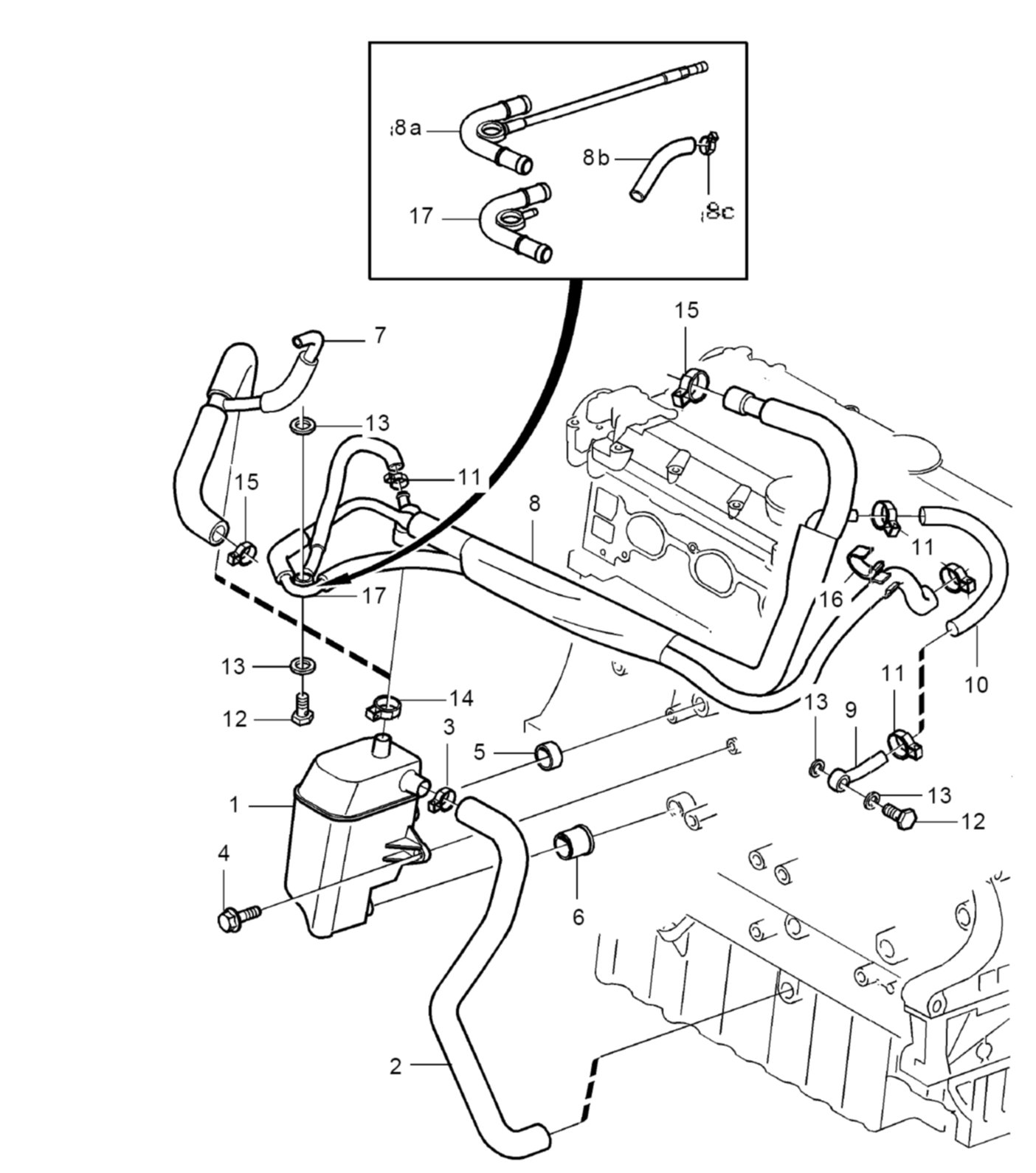

Crankcase Ventilation LocationsEditor Note: Components 8 - 13 do not apply to the non-turbo engines therefore not listed in the component I.D. below.
1.
Oil Trap
2.
Hose
3.
Hose Clamp
4.
Flange Screw
5.
Sealing Ring
6.
Hose
7.
Pipe
14.
Hose Clamp
15.
Hose Clamp
