Passenger Compartment

Passenger Compartment

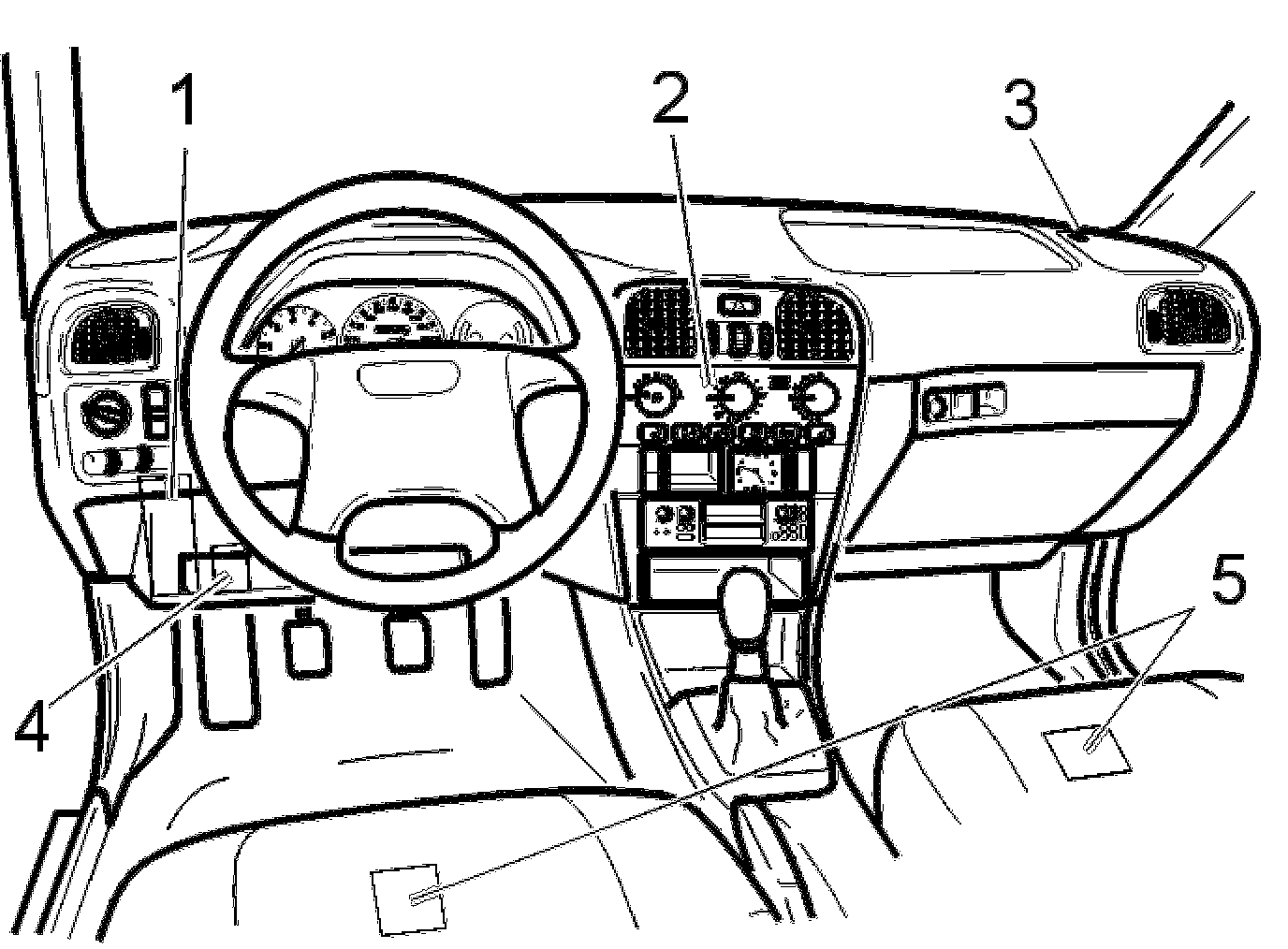

1. Integrated relay/fusebox 11/B
2. Climate control module/control panel/passenger compartment temperature sensor (ECC)
3. Sun sensor (ECC)
4. Relay box 15/14
5. Seat heater module.
