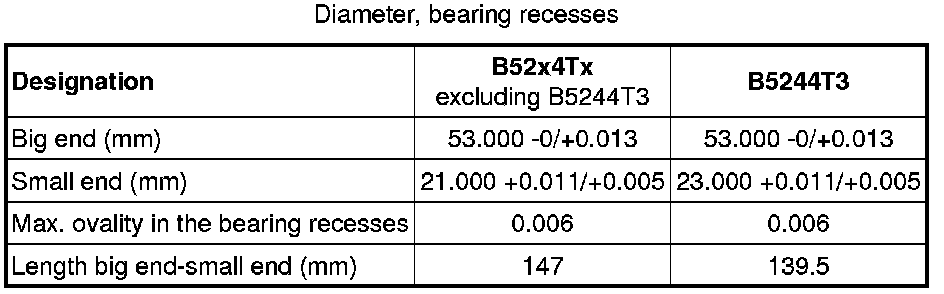

Connecting Rod, Engine
Connecting Rod Fasteners (Connecting rod with treated toothed surface between the rod and cap, screw with waist)
First pass
20 Nm
Final pass
90°
Connecting Rod Fasteners (Connecting rod with fractured surface between the rod and cap, fully threaded screw)
First pass
30 Nm
Final pass
90°
Connecting Rod Bearings
