Fuel System Pressure, Checking






Fuel system pressure, checking

Operation number: 23811

Note! Some variation in the illustrations may occur, but the essential information is always correct.

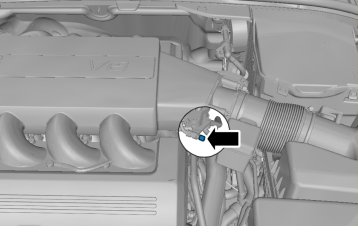

Depressurize the fuel system. Refer to: Fuel system, draining, B8444S, B6324S Fuel System, Draining

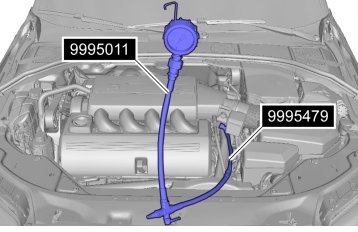

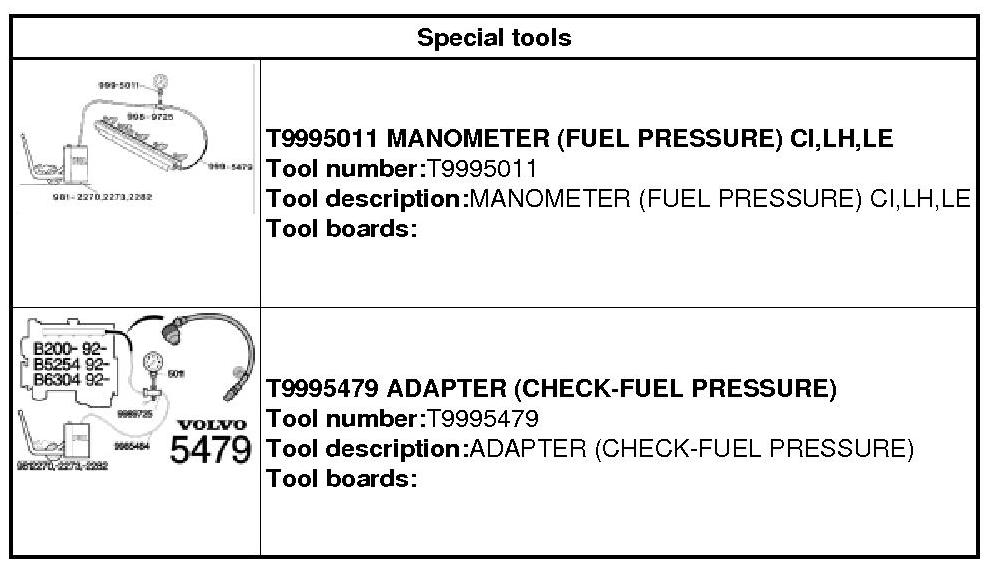

999 5011 Manometer 999 5011 Manometer

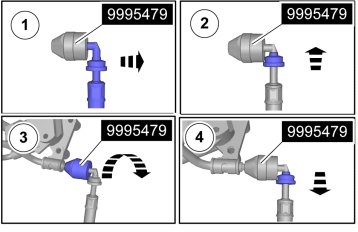

999 5479 Adapter 999 5479 Adapter








999 5011 Manometer 999 5011 Manometer
999 5479 Adapter 999 5479 Adapter
Start the engine and check the fuel line pressure. Specifications
Switch off the engine and check the residual pressure. Specifications

Depressurize the fuel system. Fuel System, Draining

Remove in reverse order.
