Engine Speed Sensor: Service and Repair

Engine Speed (RPM) Sensor, Replacing

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the upper cross stay

Remove:







- the 4 screws at the suspension turrets
- the screws of the upper engine mount on the engine
- the upper cross stay.

Removing the upper rear engine cover
Remove the upper rear engine cover by pulling it straight up.

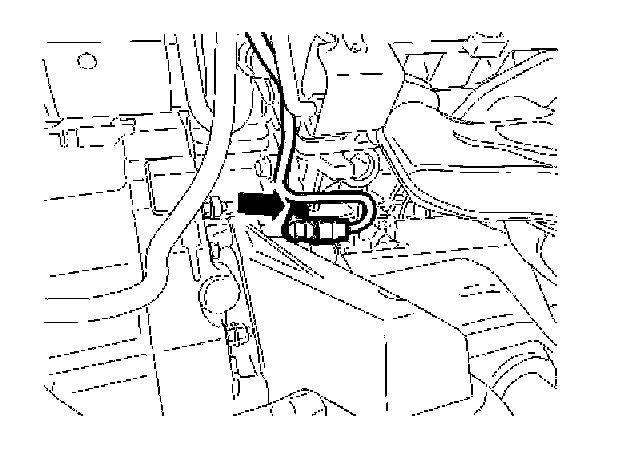

Disconnecting the engine speed sensor

Remove:

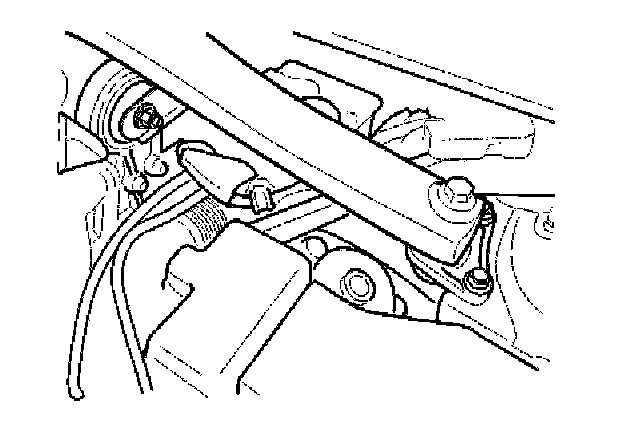

- the 1 M6 screw of the engine speed sensor; pull out the sensor
- the connector from the engine speed sensor.

Installation

NOTE: See Specifications.

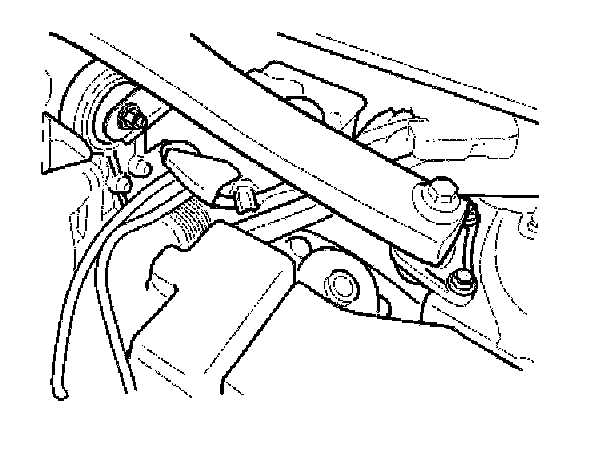

Installing the engine speed sensor

Install:
- the engine speed sensor; tighten the screw
- the connector to the engine speed sensor.

Installing the upper rear engine cover and upper cross stay

Install:







- the upper engine cover; press it into the mountings
- the upper cross stay between the suspension turrets.
- the 4 screws at the suspension turrets; tighten
- the screw of the cross stay mount on the upper engine mount; tighten.

Check
Start the engine and check the function.
