Alternator: Service and Repair
Operation number: 32102-2
GeneratorRemovalNote! Removal steps in this procedure may contain installation details.Battery, disconnection
Remove the auxiliaries belt Refer to: Accessory Drive Belt Tensioner, B5244S4
Service and Repair Remove the following items: 1.

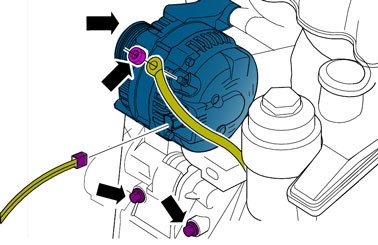

Torque: Generator B+ terminal, 15 Nm
2.
Torque: M8, 24 Nm
InstallationTo install, reverse the removal procedure.
