Accessory Control Display: Service and Repair






Information and Entertainment Display

Operation number: 39350-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Preparatory work

Ignition off




Ignition off.

Removal

Removing the surround




Remove the surround from around the media player.

Removing the panel




Remove the panel on the reverse of the center console.

Remove the infotainment control module (ICM)





Remove:

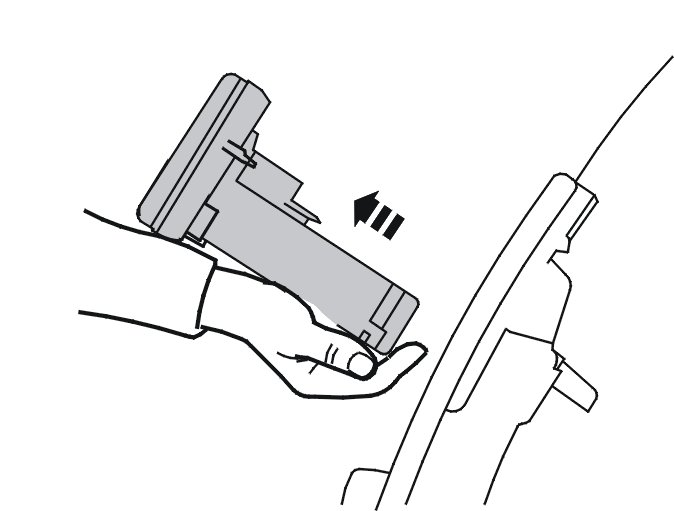

- the control module. Press out the control module from behind
- the connectors.

Installation

Installing the infotainment control module (ICM)

Note! Check that there is no dirt in the optical connectors.The bend radius of the optic cables must not be less than 25mm.

Install:
- the connectors
- the control module
- the surround around the media player
- the panel on the reverse of the center console.

Finishing

Ordering software
Order software. See: Software Downloading
