Battery Cable: Service and Repair






Battery cable to the starter motor control solenoid.

Operation number: 37213-2

Removal

Note! Removal steps in this procedure may contain installation details.

Perform battery disconnecting and connecting. Battery Disconnecting

Remove the air filter housing Refer to: Air cleaner housing, B8444S Service and Repair

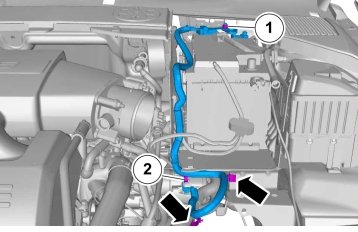

1. Torque: Battery lead to battery lead terminal, 14 Nm

2. Torque: Starter motor B+ terminal, 15 Nm

Installation

To install, reverse the removal procedure.
