Ignition Lock: Service and Repair
Ignition lockOperation number: 33438-2

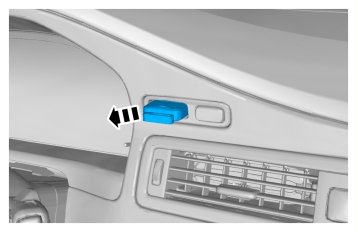

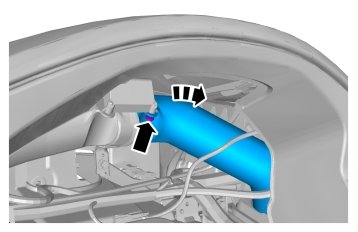

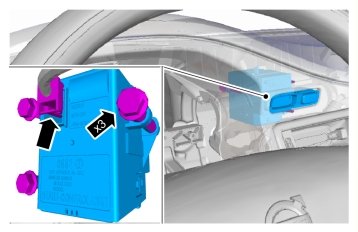

Note! Some variation in the illustrations may occur, but the essential information is always correct.RemovalRemove the combined instrument panel.
Service and RepairNote! Make sure that the component terminals are not bent or damaged.InstallationTo install, reverse the removal procedure
