Engine Compartment Electrical Center

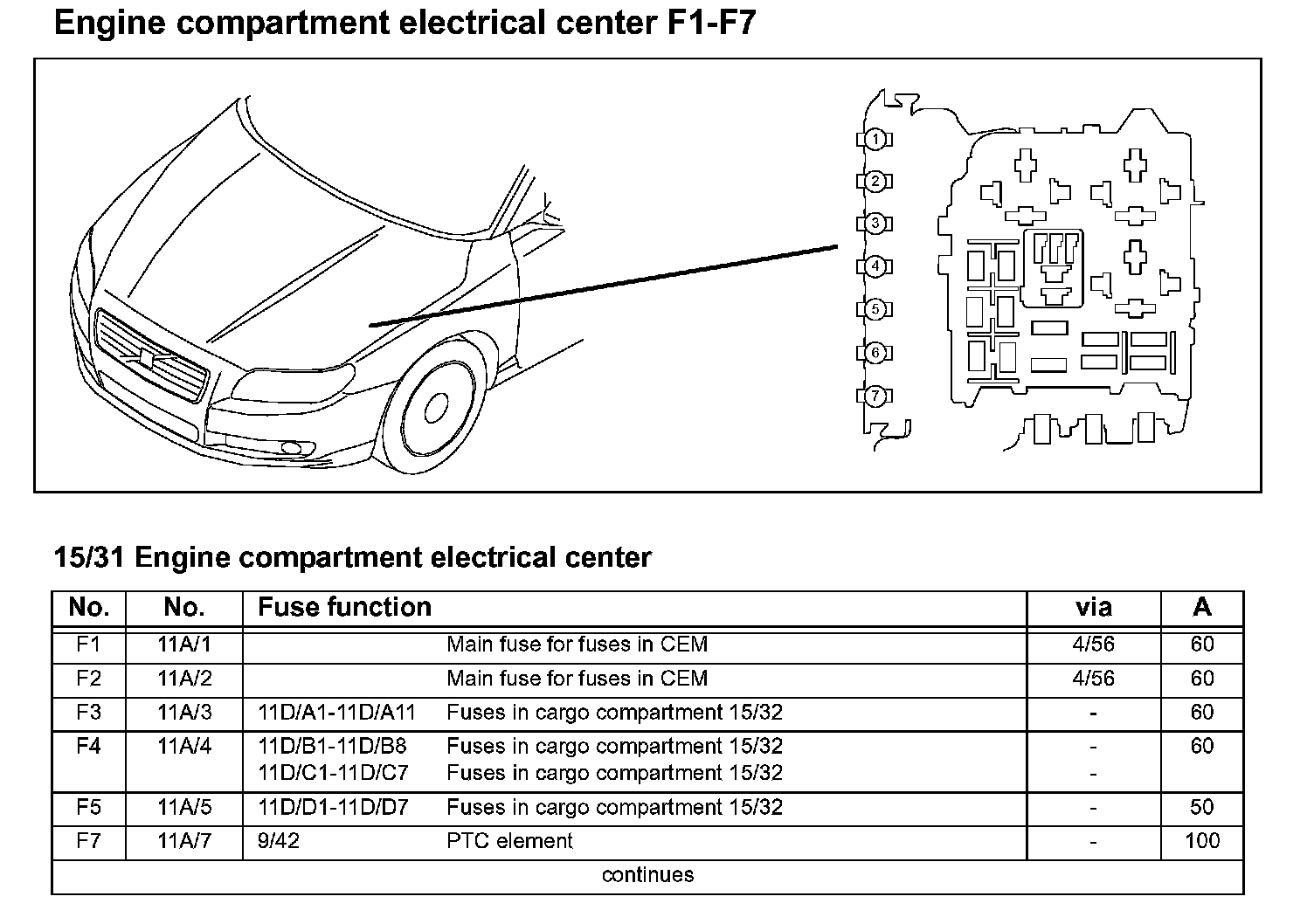

Engine Compartment Electrical Center F1-F7:

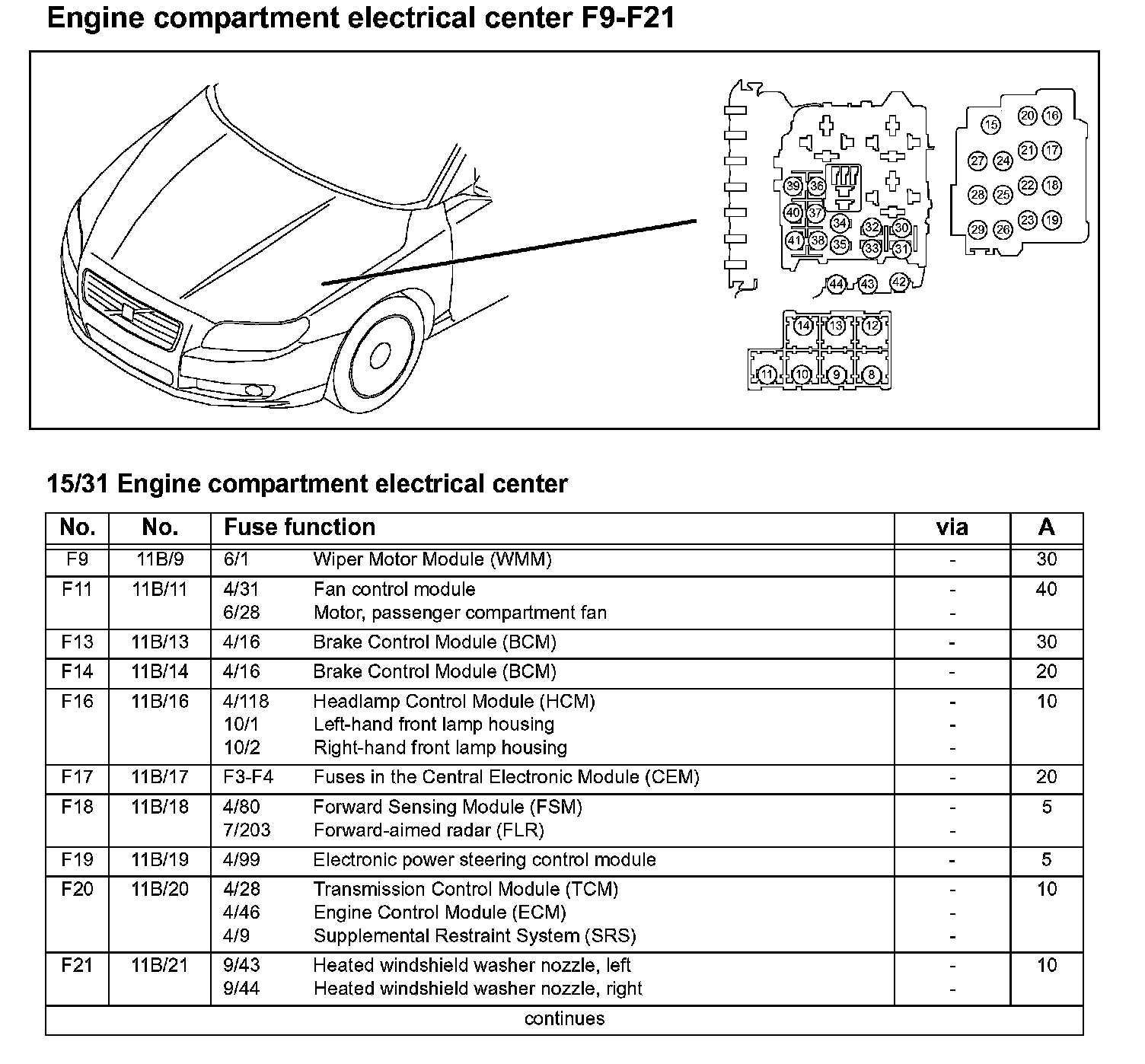

Engine Compartment Electrical Center F9-F21:

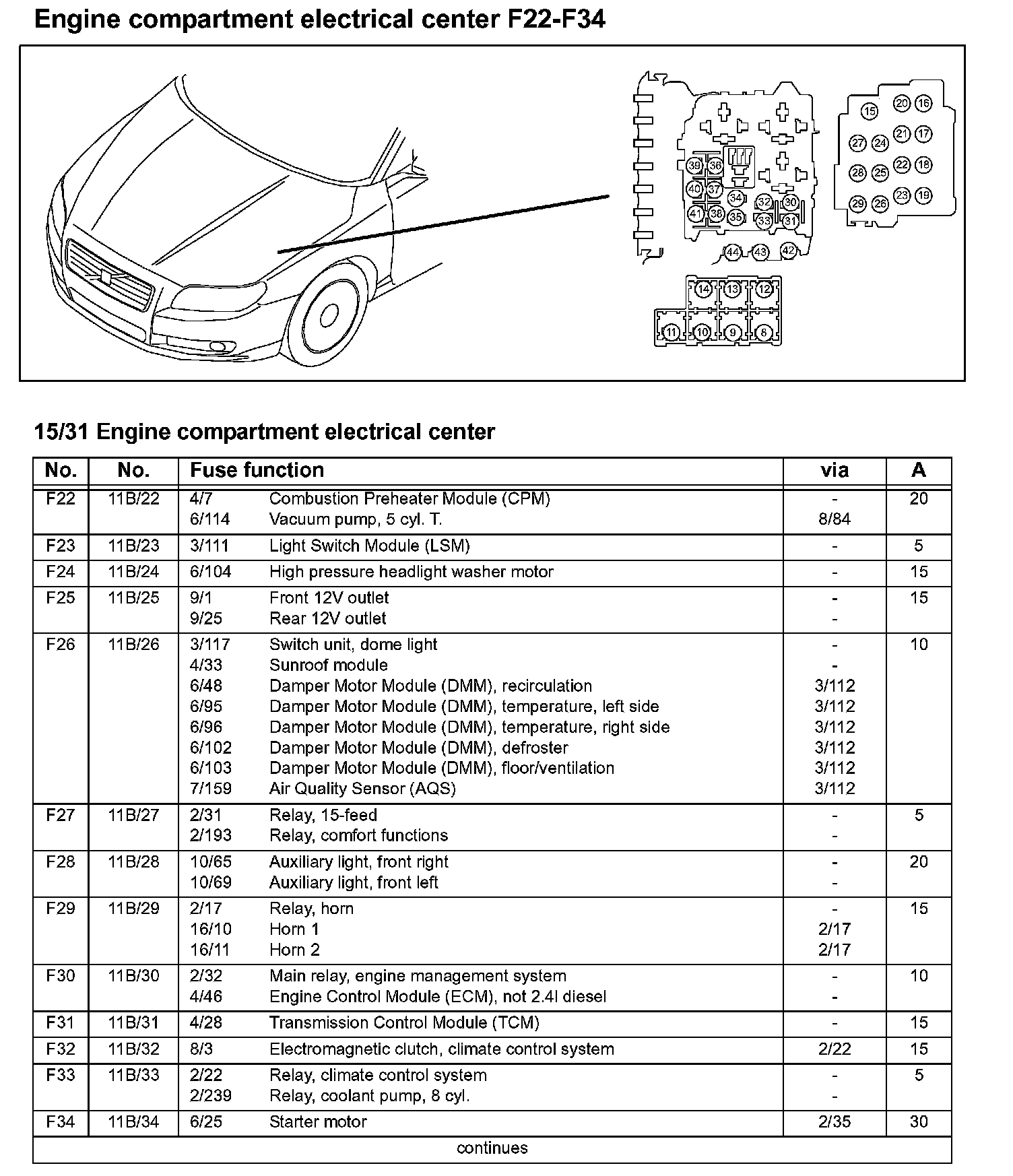

Engine Compartment Electrical Center F22-F34:

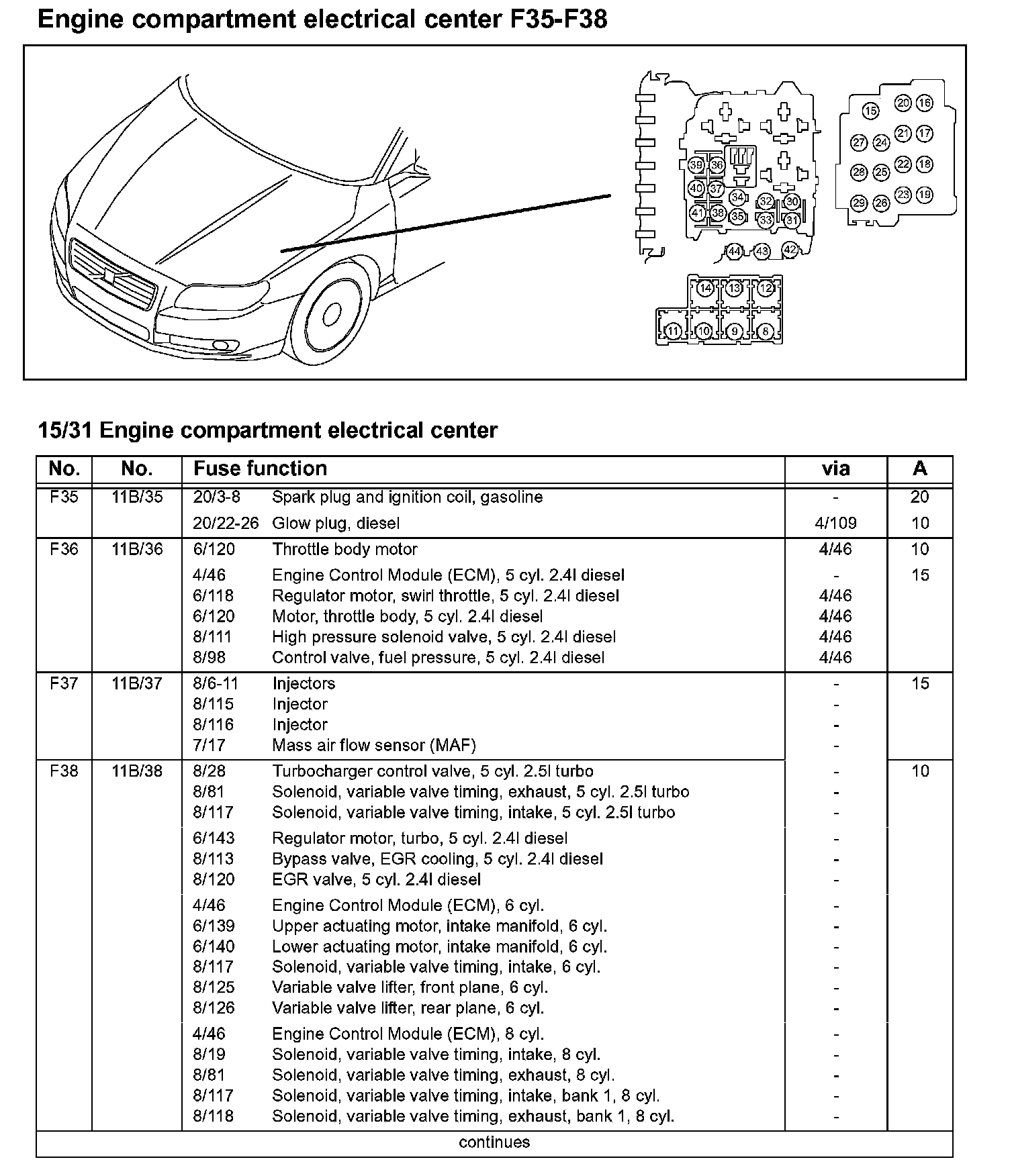

Engine Compartment Electrical Center F35-F38:

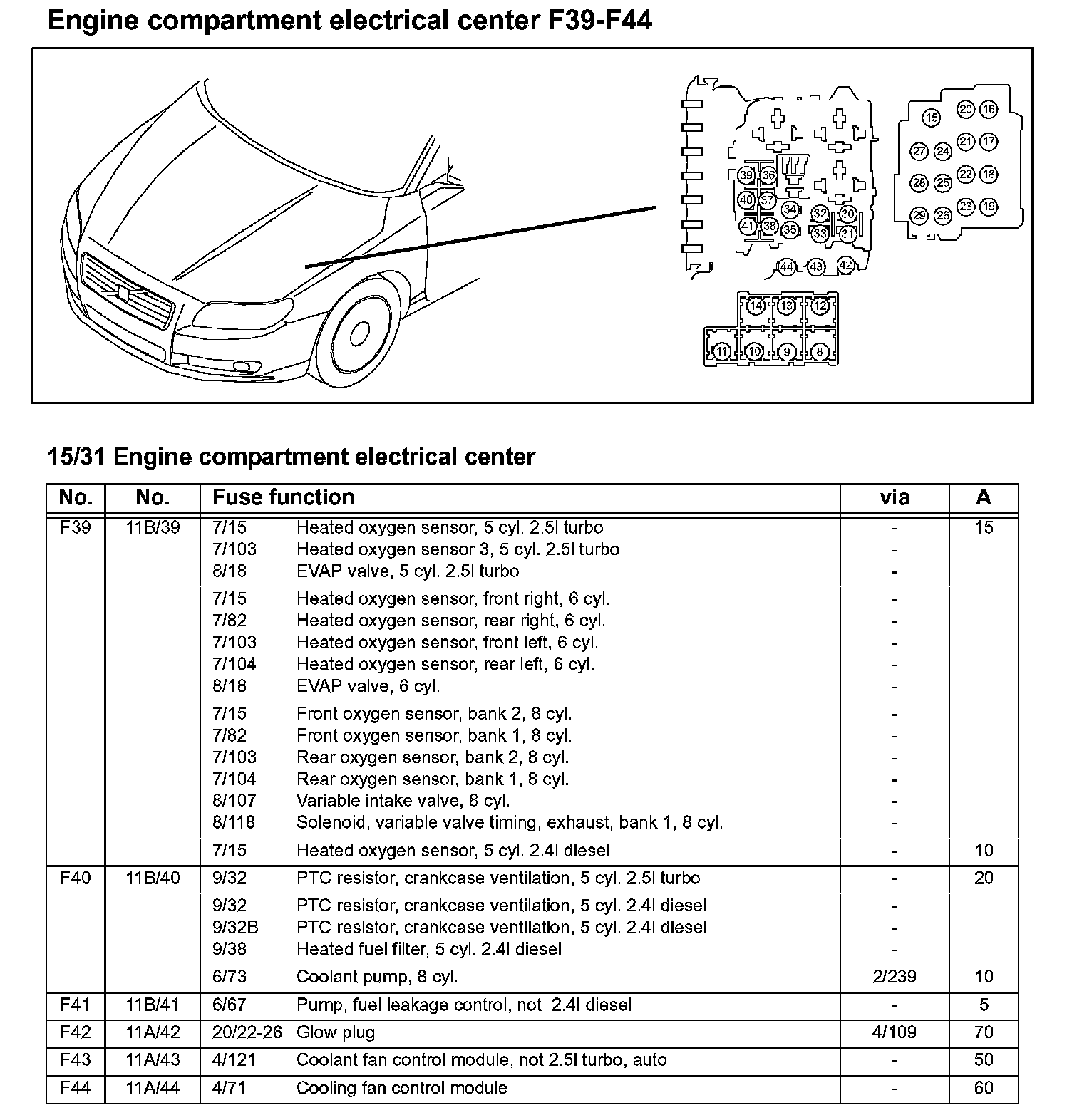

Engine Compartment Electrical Center F39-F44:
