Solenoid Control System, Replacing

Solenoid control system, replacing

Removal

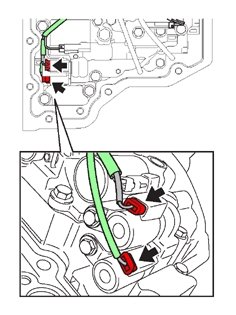

Removing cover control system
Remove the cover over the control system. See: Cover control system, replacing, B8444S, TF-80SC AWD Cover Control System, Replacing.

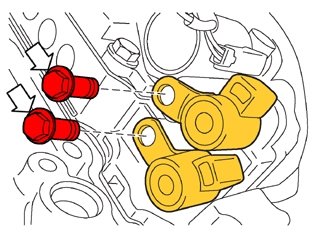

S1, S2

Installation

Note! For tightening torques, see: Tightening Torque

M6

Install the cover over the control system. See: Cover control system, replacing, B8444S, TF-80SC AWD Cover Control System, Replacing.
