Variable Valve Timing Solenoid: Service and Repair
VVT solenoidOperation number: 21553-2

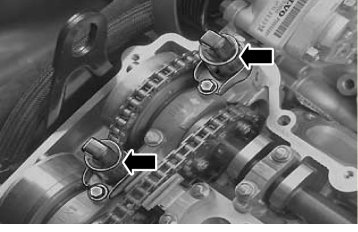

Note! Some variation in the illustrations may occur, but the essential information is always correct.RemovalNote! Removal steps in this procedure may contain installation details.Remove the
valve cover. Refer to: Valve cover, B8444S
Service and Repair.
Torque: M6, 10 Nm
InstallationTo install, reverse the removal procedure
