Oil Filter: Service and Repair






Oil filter

Operation number: 22217-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

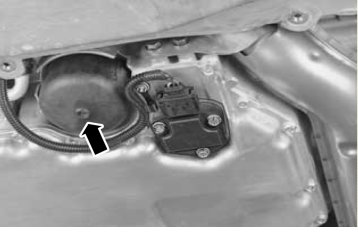

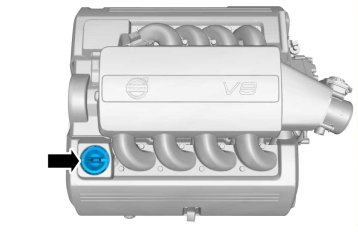

Removal

Warning! Hot fluid.

Warning! Avoid skin contact with the oil.

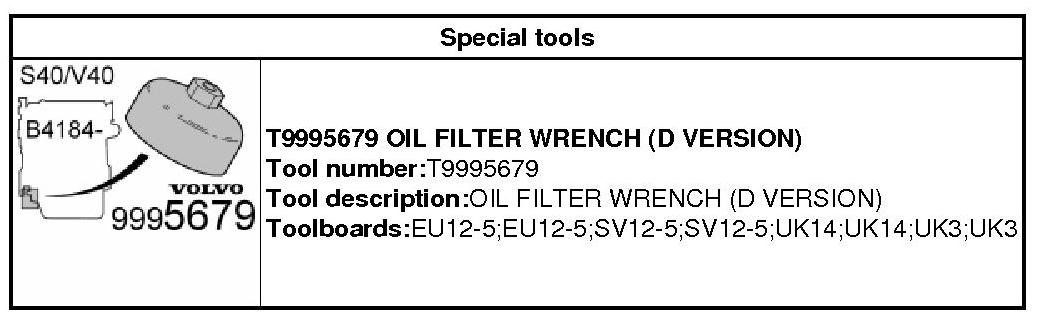

999 5679 Oil filter spanner 999 5679 Oil Filter Spanner





Installation




Torque: Oil filter , 25 Nm

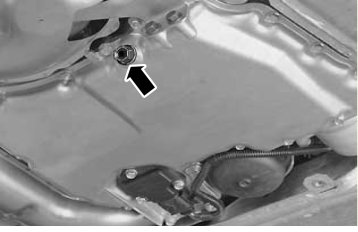

Torque: Drain plug oil pan, 34 Nm








Fill with oil. Refer to: Lubricants, engine [1][2]Capacity Specifications

Start the engine and check the oil level and check for any leaks. Top up as necessary, but do not overfill.
