Catalytic Converter: Service and Repair
Catalytic converterOperation number: 2519-2

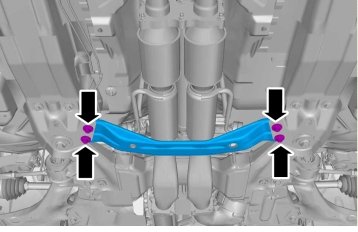

RemovalNote! Removal steps in this procedure may contain installation details.Follow instructions for lifting points Refer to: Jacking points body
Locations Torque: M8, 24 Nm

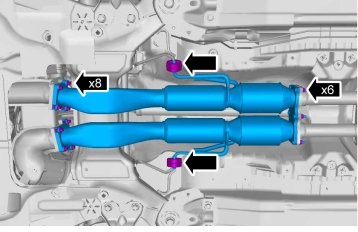

Perform flange joint, assembly Refer to: Flanged joint, assembling
Service and Repair Torque: M8, 24 Nm
InstallationTo install, reverse the removal procedure.
