Alternator: Service and Repair






Generator

Operation number: 32102-2

Removal

Note! Removal steps in this procedure may contain installation details.

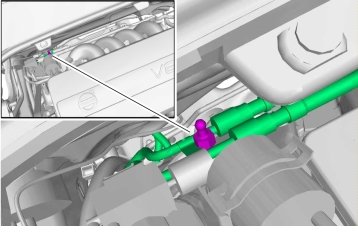

Battery, disconnection Battery Disconnecting





Remove the auxiliaries belt. Service and Repair

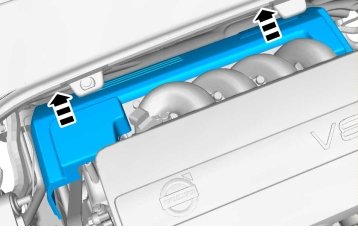

Torque: M6, 10 Nm

Follow instructions for lifting points body frame Refer to: Jacking points body Locations

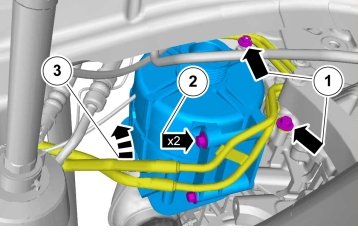

1. Torque: Generator B+ terminal, 15 Nm

2. Torque: M8, 24 Nm

Remove the right drive shaft. Drive Shaft Right

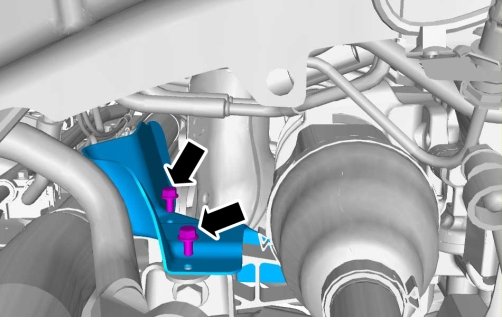

Torque: Front stabilizer bar link to strut and spring assembly, 60 Nm




Torque: M6, 10 Nm

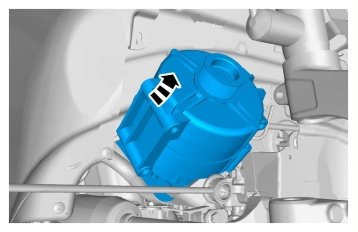

Caution! Make sure that the components are not forcibly bent.

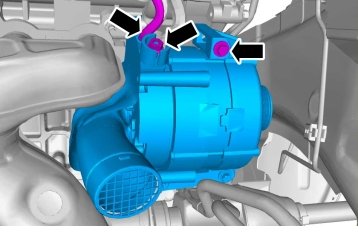

1. Torque: M8, 24 Nm

2. Torque: M6, 10 Nm





Installation

To install, reverse the removal procedure.
