System Specifications

Cylinder Head





Stage 1 45 Nm
Stage 2 45 Nm
Stage 3 90 degree
Stage 4 180 degree

Warpage





Camshaft Cover





Use the sequence 1- 9 and alternately, a few turns at a time, tighten the camshaft cover parallel to the cylinder head fully





Torque M7 17 Nm





Torque M7 17 Nm

Centre bolt, exhaust camshaft

Stage 1 75 Nm
Stage 2 90 degree

Centre bolt, intake camshaft 110 Nm

Induction pipe M7 17 Nm

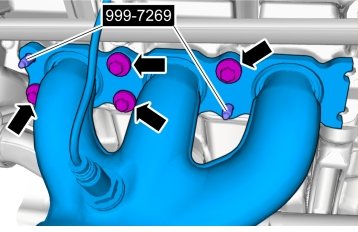

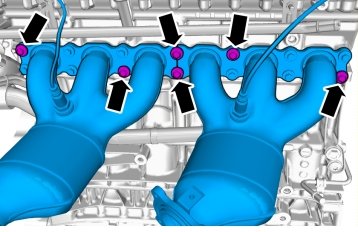

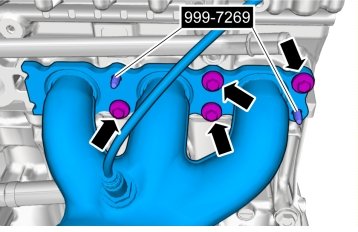

Exhaust manifold





Torque M8 24 Nm





Torque M8 24 Nm





Torque M8 24 Nm
