Cover, Control System






Cover, control system

Operation number: 43748-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.











Removal

Note! Removal steps in this procedure may contain installation details.

Drain oil. Transaxle Oil

Remove the air cleaner (ACL) housing. Refer to: Air cleaner housing, B6324S Service and Repair




Torque: M8, 24 Nm

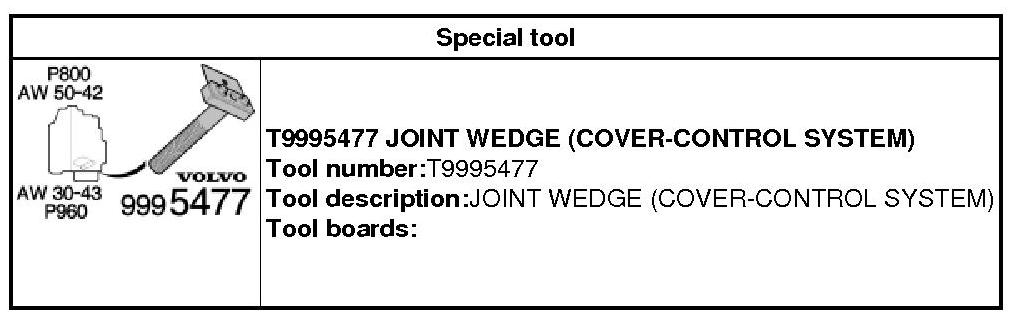

999 5477 JOINT WEDGE 999 5477 Joint Wedge

Installation

Clean the mating surface.
Use: Isopropyl alcohol, -

Apply sealant.
Use: Sealant, 1161409-6

To install, reverse the removal procedure
