Air Flow Meter/Sensor: Service and Repair






Mass air flow (MAF) sensor, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

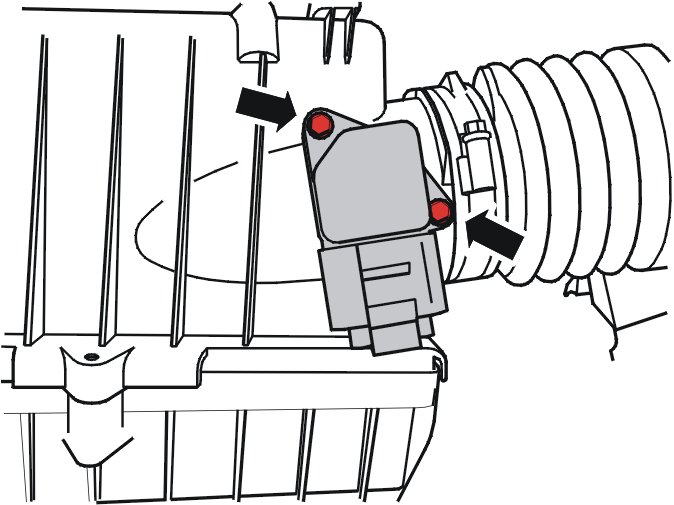

Removing the mass air flow sensor





Remove:
- the cover over the air cleaner module by pulling it straight up
- the connector to the mass air flow sensor
- the 2 screws
- the mass air flow sensor.

Installation

Note! For tightening torques, see: Tightening Torque

Installing the mass air flow sensor





Install:
- the mass air flow sensor
- the 2 screws; tighten
- the connector to the mass air flow sensor
- the cover over the air cleaner module.
