Oil Filter: Service and Repair

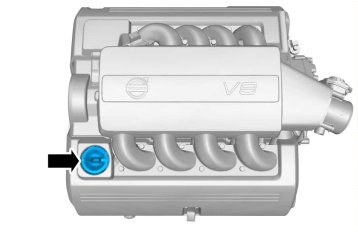

Oil filterOperation number: 22217-2

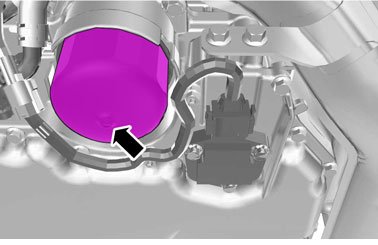

RemovalWarning! Hot fluid.Warning! Avoid skin contact with the fluid999 5679

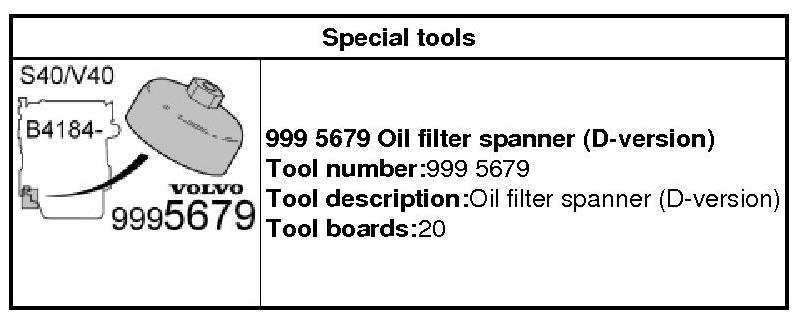

Oil filter spanner
999 5679 Oil Filter Spanner InstallationTorque: Oil filter , 25 Nm

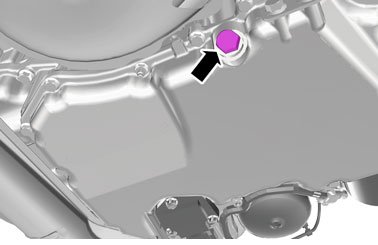

Torque: Drain plug oil pan, 34 Nm
Follow instructions for lubricant, engine Refer to: Lubricants, engine
Fluid Type Specifications Start the engine.
Check the component for leaks.
