Control module

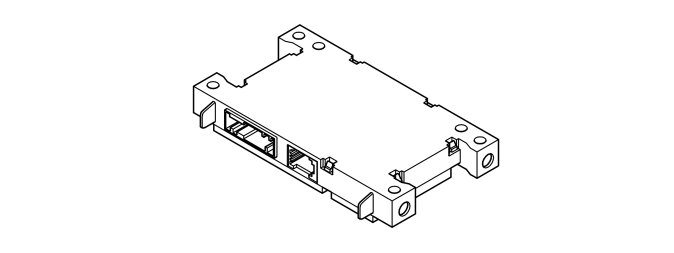

The Bluetooth phone module (BPM) has the task of functioning as a wireless link between the vehicle's infotainment system and a cellphone equipped with blue tooth technology.

The Bluetooth phone module (BPM) contains:
- A main processor which manages all functionality and logic for the Bluetooth phone module (BPM). The software for the bluetooth phone module (BPM) is also stored here.
- Sound processor which manages hands-free sound and generates polyphonic ring signals which are then transmitted on to the integrated audio module (IAM) and audio module (AUD) (only certain versions) via the MOST network.
- Internal blue tooth antenna.
