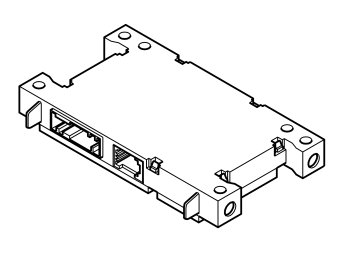

Checking communication, Bluetooth phone module (BPM)

Checking communication, Bluetooth phone module (BPM)
This applies to the following vehicles:
- C30, structure week 200820- 200949.
- C70 (06-), structure week 200820 - 200949.
- S40 (04-), structure week 200820 - 200949.
- V50, structure week 200820 - 200949.

Fault-tracing information

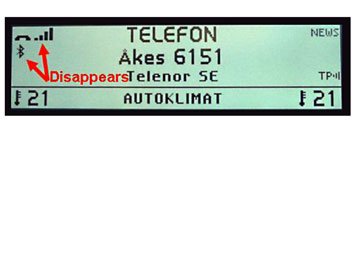

Communication between the Bluetooth phone module (BPM) and mobile telephone can suddenly be interrupted. An audible signal is heard for about 2 seconds before the symbols for Bluetooth and signal strength disappear.
If the audio system is not in "telephone mode" the symbols for Bluetooth and signal strength disappear without warning and incoming calls are connected directly to the mobile telephone.
It is possible to manually connect the mobile telephone with the Bluetooth phone module (BPM). If the audio system is in "telephone mode" communication is established again as soon as Enter is pressed.

Action
Go to the tab software and program the control module with the latest software.

Fault symptom
Cellular phone/Hands-free does not work
Cellular phone/Does not work
Cellular phone/Other cellular phone problems
Cellular phone/Keypad on center console does not work
Cellular phone/Steering wheel cellular phone controls do not work









Has the fault been remedied?

Yes - DONE

No - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking communication, Bluetooth phone module (BPM)

FAULT-TRACING FAILED - FAULT-TRACING FAILED

-------------------------------------------------
