Part 2

Satellite radio, Sirius























































INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






Satellite radio, Sirius

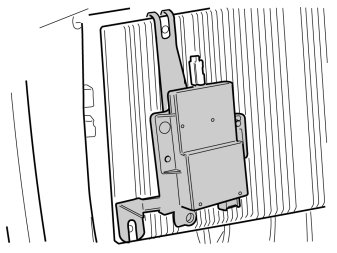

- Reinstall the amplifier with the receiver unit.
- Install the nuts in the amplifier.
- Tighten and torque tighten the nuts 10 Nm (7.5 lbf.ft.).

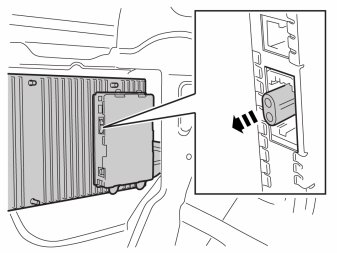

- Remove the transportation protection in the fiber-optic terminal on the receiver.

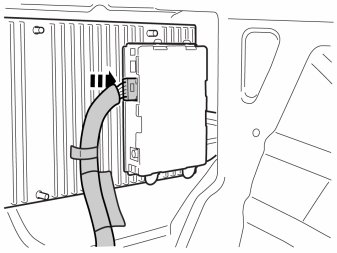

- Connect the remaining fiber-optic cable's male connector to the receiver.





- Press the joint connectors with their clips at the panel edge at the rear edge/lower edge of the amplifier.

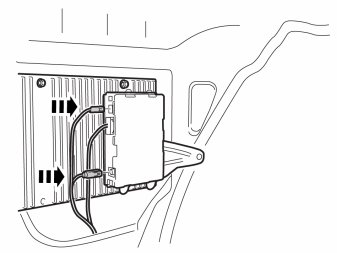

- Connect the routed connectors to the receiver, black for 12 V and gray for the antenna. They are located at the thick cable harness at the rear edge of the wheel housing.





If the car is equipped with GPS receiver, connect the fiber-optic adapter cable in the same way as before, directly to the amplifier.
- Clamp the cable joint at the panel edge as in image 47.

Note! Do not damage the fiber-optic wiring.

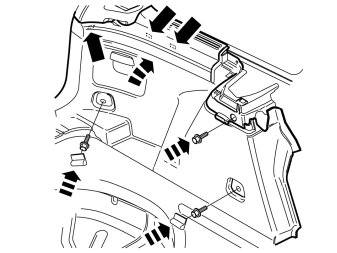

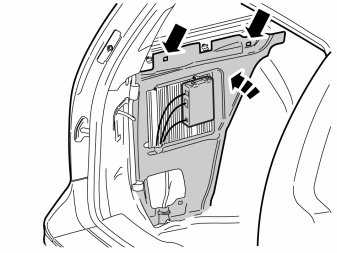

- Reinstall the side panel using the existing screws.

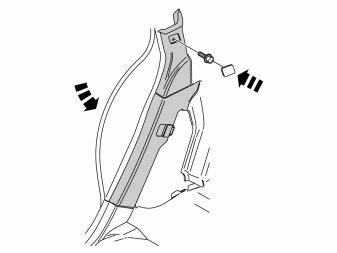

- Torque tighten the screws in the load securing eyelets to 24 Nm (18 lbf.ft.).

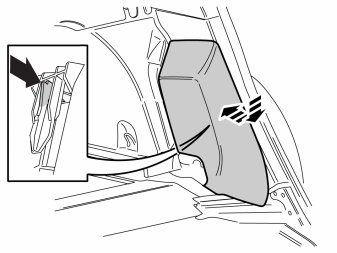

- Reinstall the covers in the load securing eyelets.





- Carry out on both sides.





- Carry out on both sides





- Carry out on both sides





- Carry out on both sides

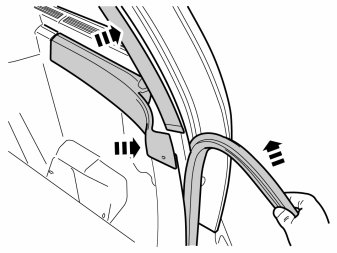

- Reinstall the right-hand D-post panel.
- Press the right side panel into place.

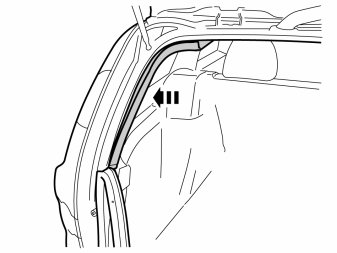

- Reinstall the rubber strip on both sides of the D post panel.

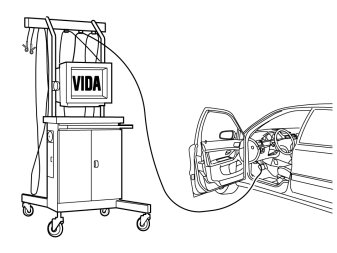

- Download software (application Sirius sat radio) for the accessory's function.
