Signal Description, Driver's Door Module / Passenger Door Module (DDM/PDM)

Signal specification

General

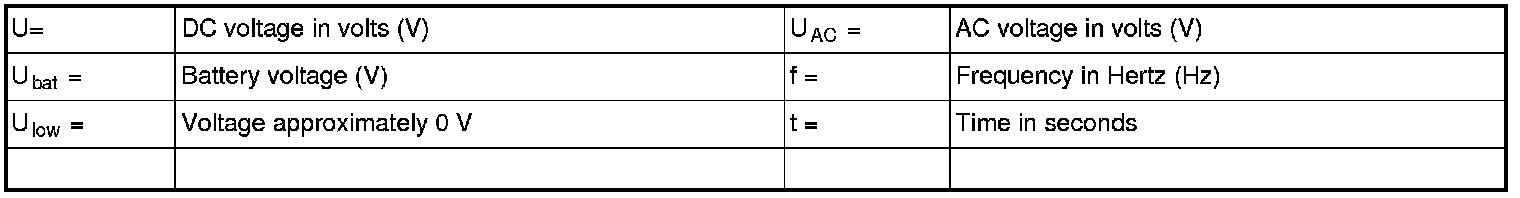

All the values given below are between the respective terminal in column 1 and terminal #A9 in column 2 (power ground) unless otherwise stated in brackets after the table entry.

Note! It is important to connect the breakout box and check the ground terminals before taking readings.

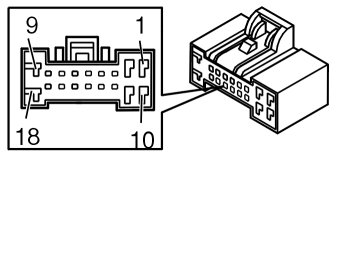

Driver door module (DDM) connector A, Passenger door module (PDM) connector A

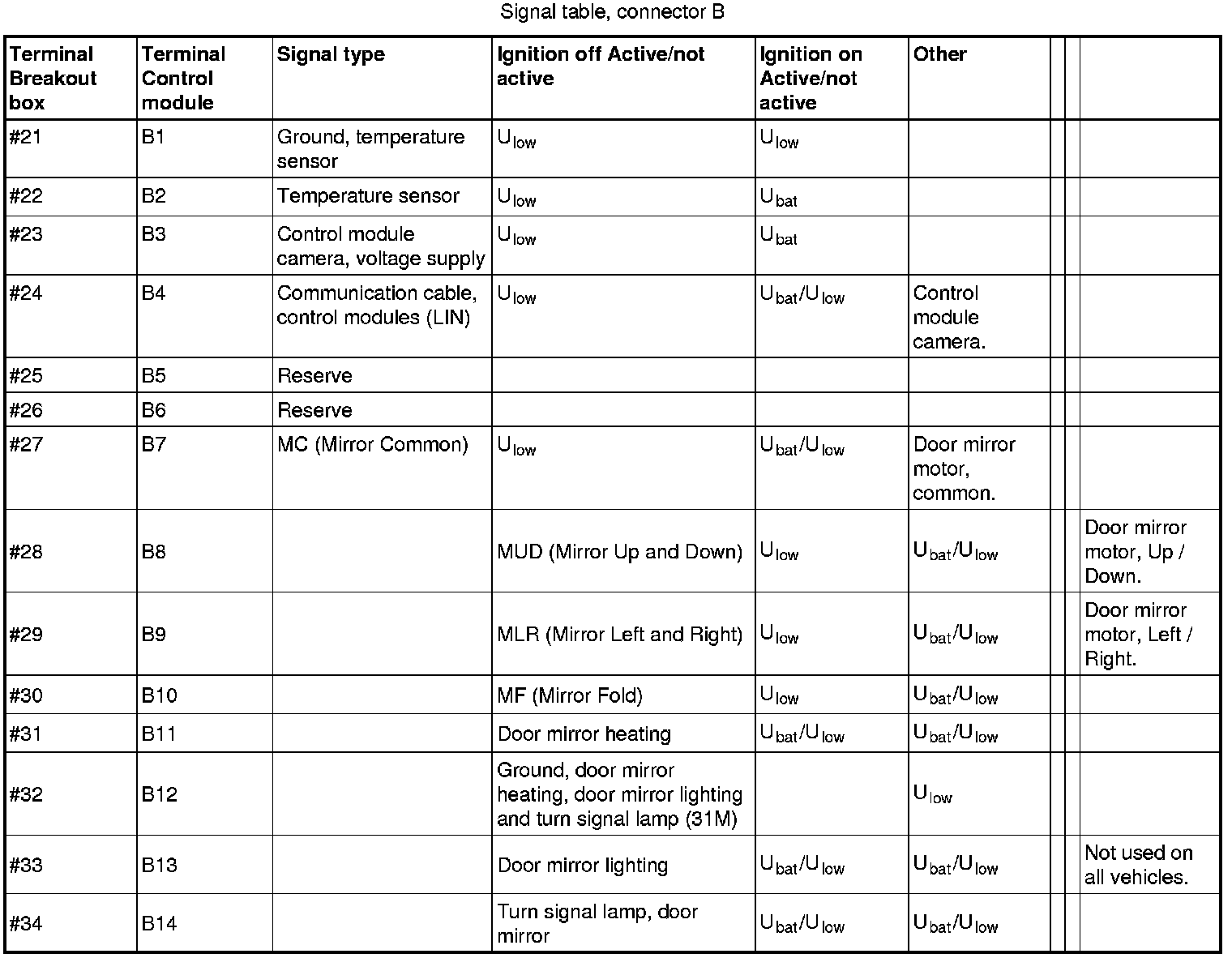

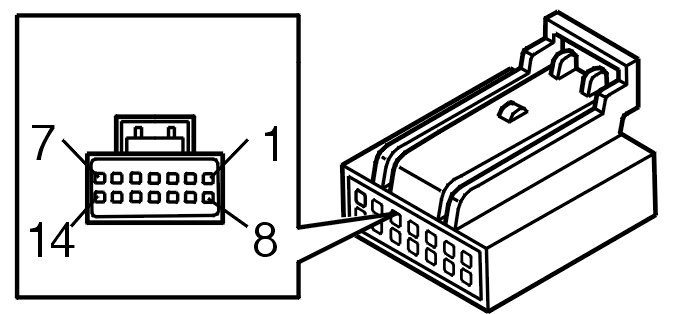

Driver door module (DDM) connector B, passenger door module (PDM) connector B

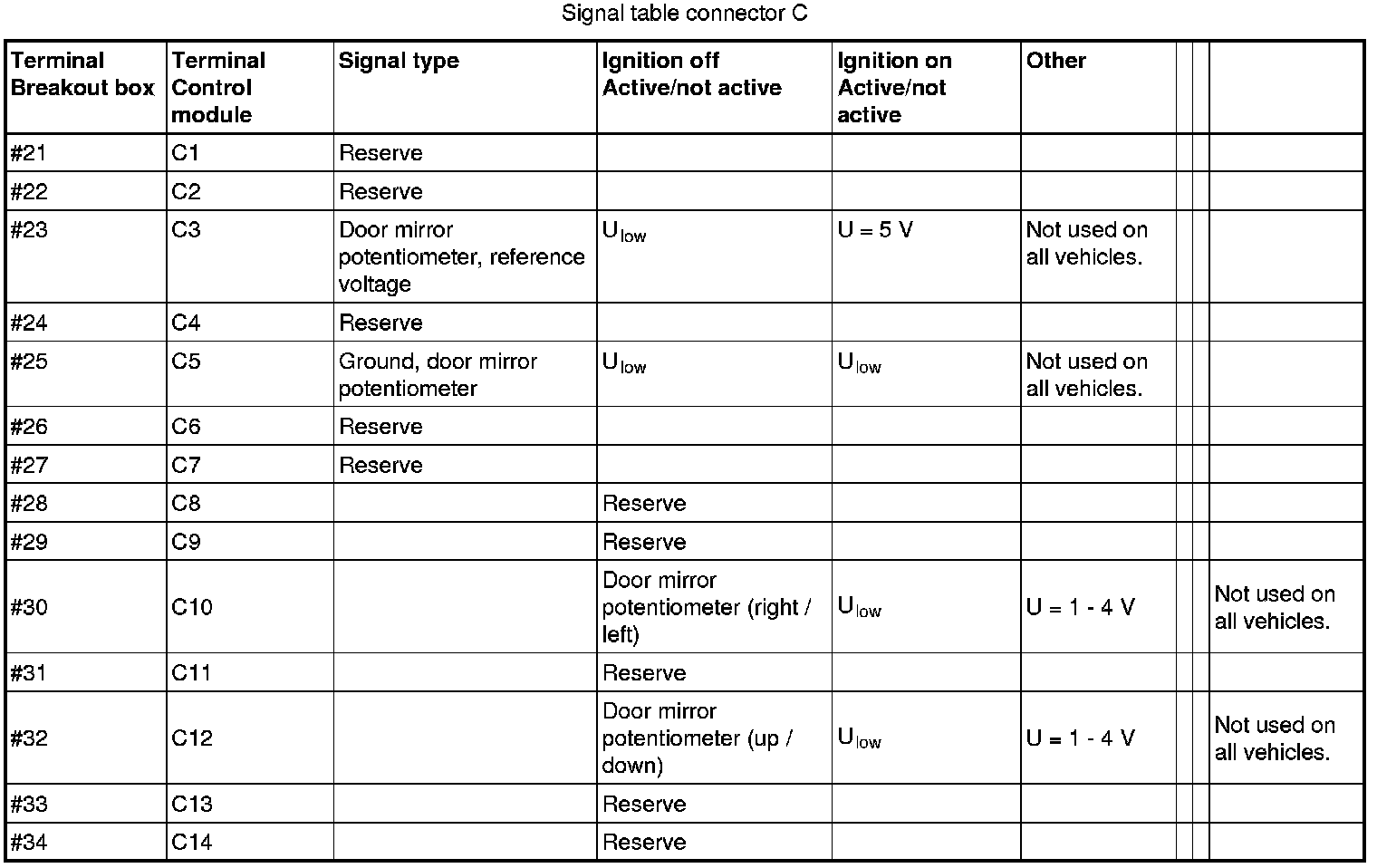

Driver door module (DDM) connector C










Control module left rear door/right rear door (S40 / V50 / C70)
