Procedures

Window molding, masking

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Masking of window seal strips when painting roof




The roof has an integrated seal strip against the roof.

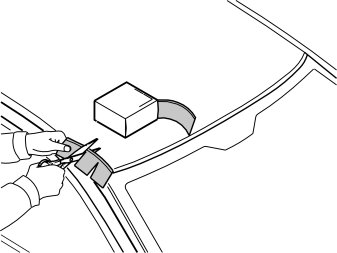

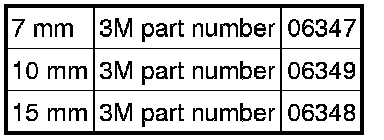

To avoid removing the windows when painting, use of 3M's masking tape with the following part number is recommend:

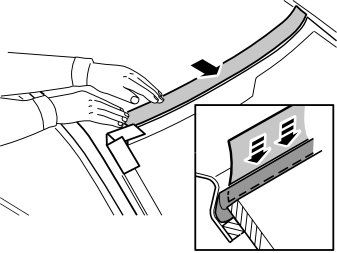

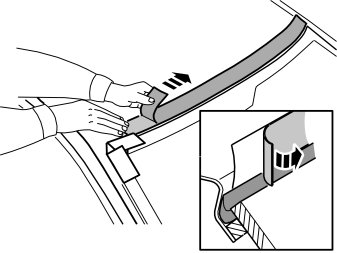

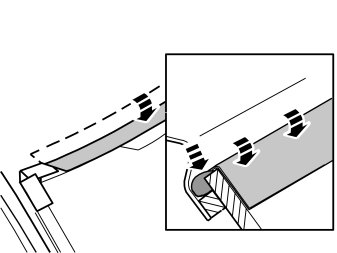

The masking consists of two plastic foil pieces that are to be inserted between the window seal strip and the roof side, and are then to be taped against the rear window.
