System Overview

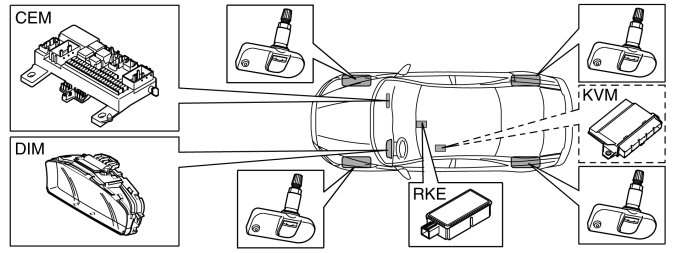

System overview

Control module




The tire pressure warning function is checked by the central electronic module (CEM). The system must give a warning to driver in the driver information module (DIM) display if the air pressure in one of the tires is lower than the predetermined parameter.

Signals

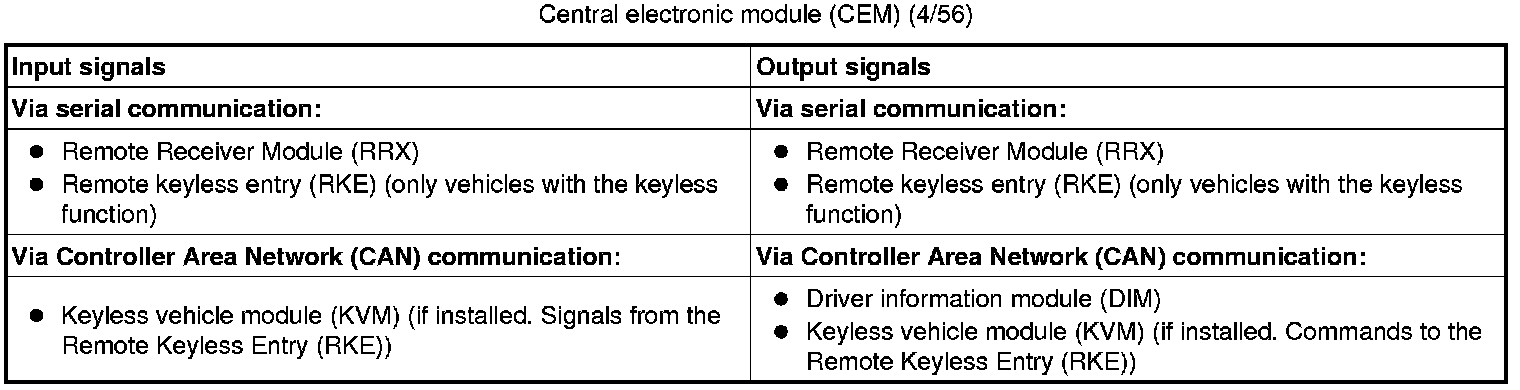

The table below summarizes the input signals to and output signals from the central electronic module (CEM). The signal types are divided into serial communication and controller area network (CAN) communication. No directly connected signals are included in the function.
