Reset Procedure

Tire pressure monitoring system (TPMS)

The easiest way to reset a warning is to stop the vehicle, fill the tire with low pressure with air. The warning in the Driver information module (DIM) disappears the next time the ignition is switched on.
If air is filled in a tire that has warned of low pressure and the ignition is on during the entire process, the warning will go out as soon as the pressure in the tire exceeds the normal level.
If a sensor must be replaced for a tire that has warned of low pressure, the system must "learn" the new sensor ID. This can be carried out in different ways:
1. Drive the vehicle faster than 40 km/h (25 mph) for longer than 10 minutes. The warning for low pressure remains in the Driver information module (DIM) until the Central electronic module (CEM) has identified the new sensor.
2. Programming "by hand". This is carried out using the function in VIDA. For more information, see Diagnostic functions.

Note! The vehicle must be parked for longer than 15 minutes to learn the new ID.

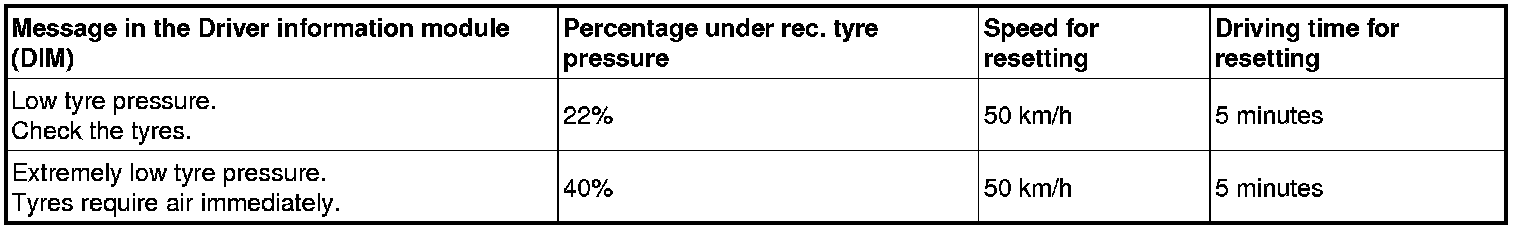

Tire pressure messages
