Rear Upper Arm

Rear upper arm

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work


Remove:
- the wheel
- the spring.
For FWD, see: Spring, AW55-50/51SN Spring, Rear Spring Spring, Rear.
For AWD, see: Spring, AW55-50/51SN Spring, Rear Spring Spring, Rear.

Removal

Removing the upper control arm

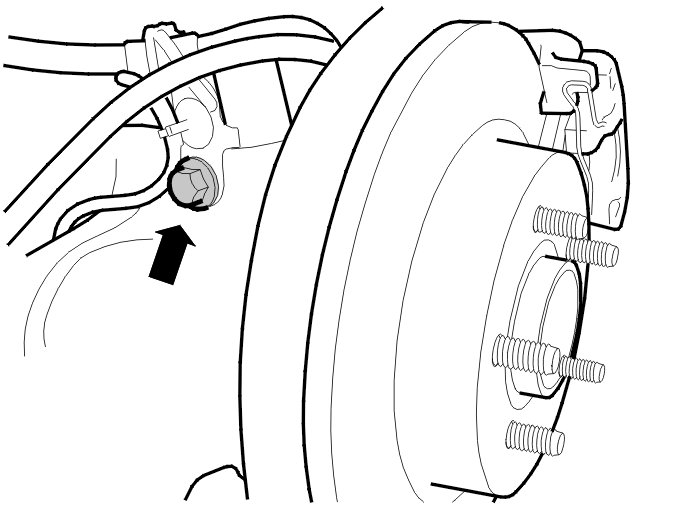

Remove the screw for the wheel spindle.





Remove:

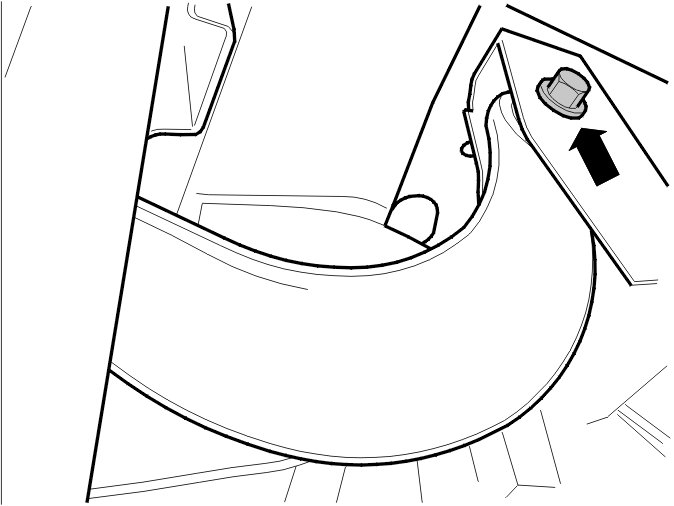

- the screw x1 for the sub-frame
- the control arm.





Caution! Use a transmission jack to prevent damage to the screws.

Installation

Installing control arm

Note! For tightening torques, see: Tightening torque [1][2]Specifications.

Install:
- the control arm
- the screw x1 for the sub-frame. Do not tighten yet
- the screw x1 for the wheel spindle. Do not tighten yet.

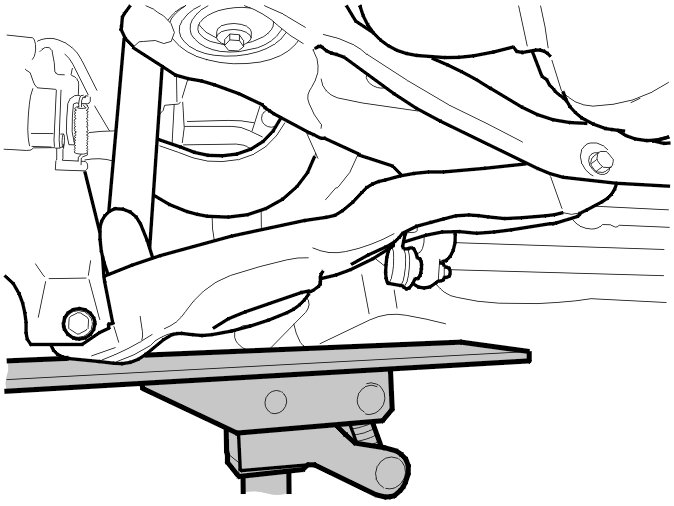

Note! The rear suspension must be in the normal position when tightening all the joints in the rear suspension where rubber bushings are involved. See: Normal position Service and Repair.

Tighten the screws. For tightening torques, see: Tightening torque [1][2]Specifications.

Note! Use a transmission jack to prevent damage to the screws.

Finishing


Install:
- the spring.
For FWD, see: Spring Spring, Rear Spring, AW55-50/51SN Spring, Rear.
For AWD, see: Spring Spring, Rear Spring, AW55-50/51SN Spring, Rear
- the wheel. See: Wheels Service and Repair.
