Signal Description, Integrated Audio Module (IAM)

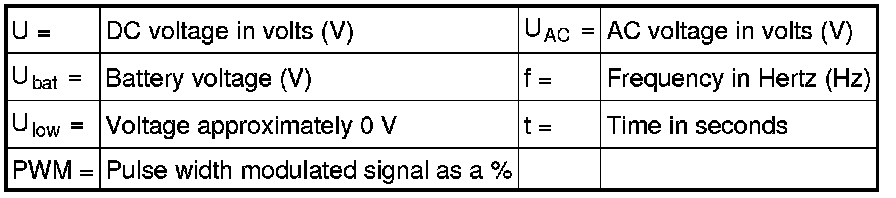

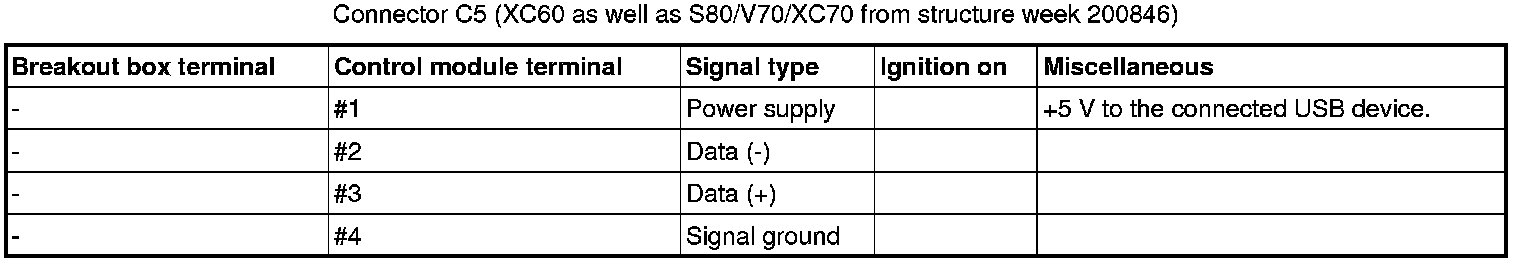

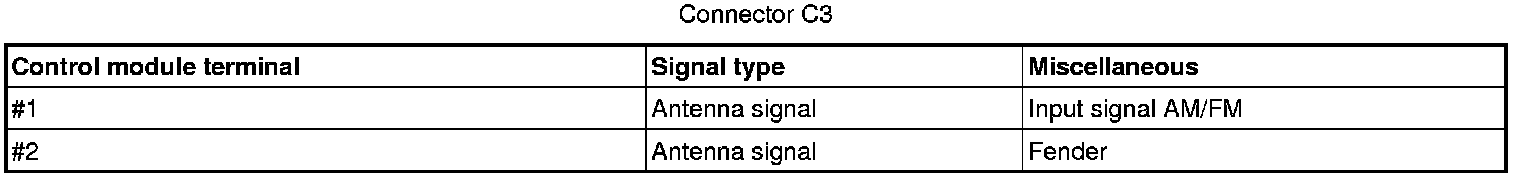

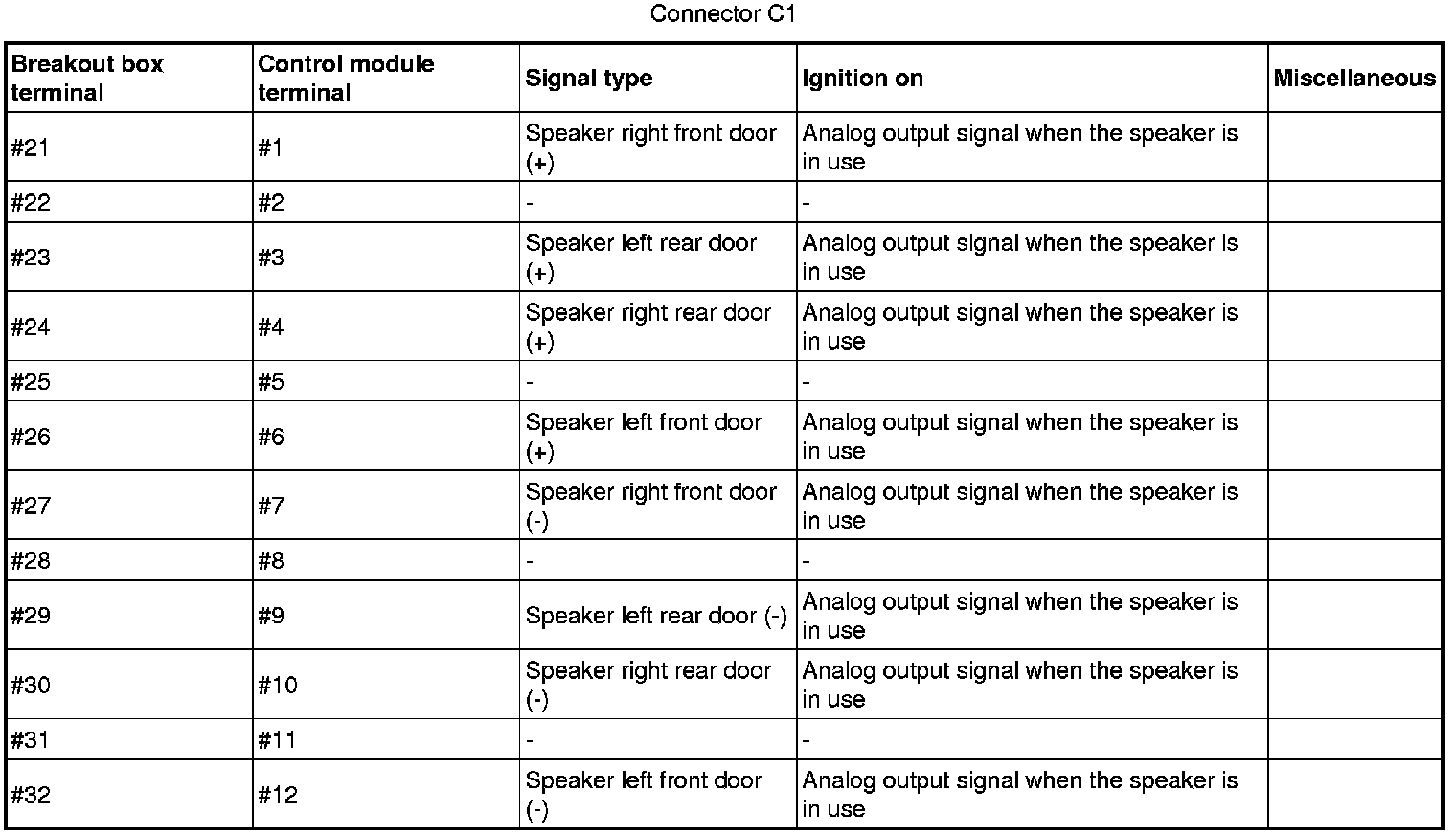

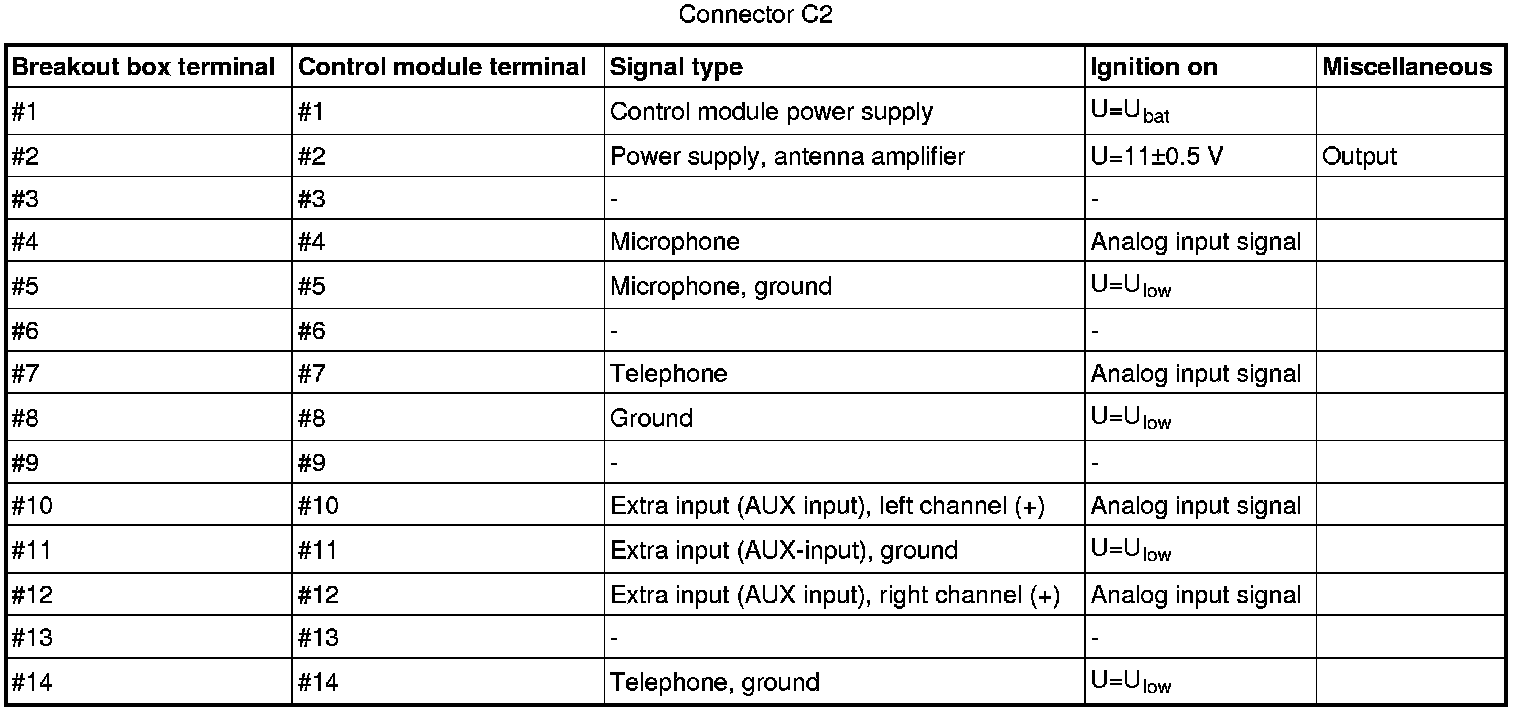

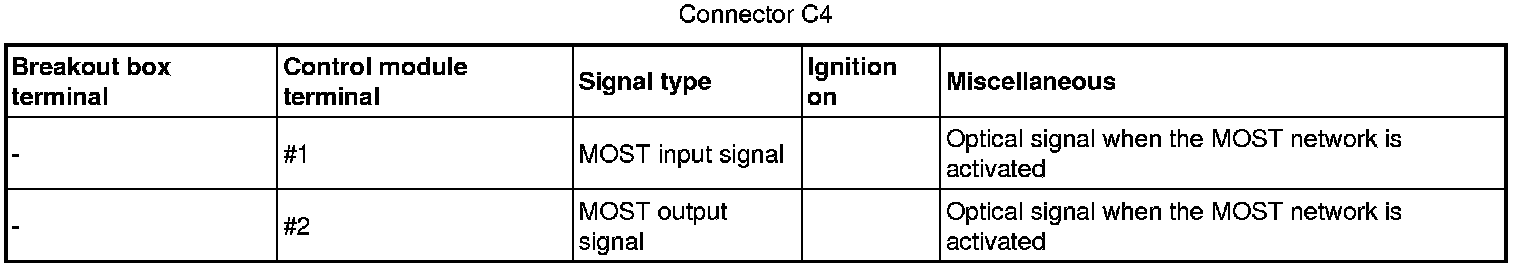

Signal description, Integrated Audio Module (IAM)GeneralAll values below are measured between the relevant terminal in column 1 and C2-8 in column 2 (power ground) unless otherwise stated in parenthesis after the table entry.
Note! It is important to connect the breakout box and check the ground connections before starting to measure.
