Signal Description, Brake Control Module (BCM)

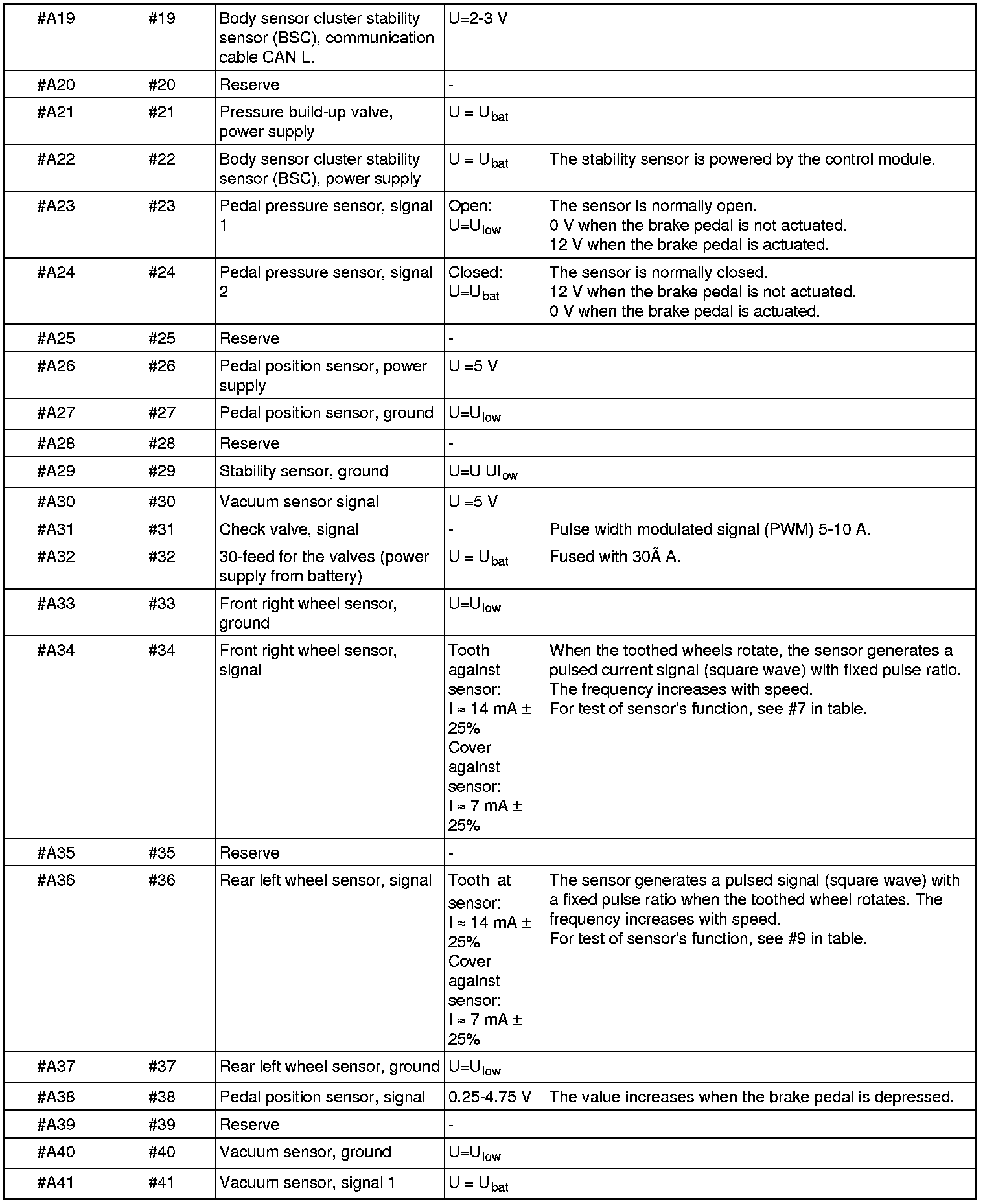

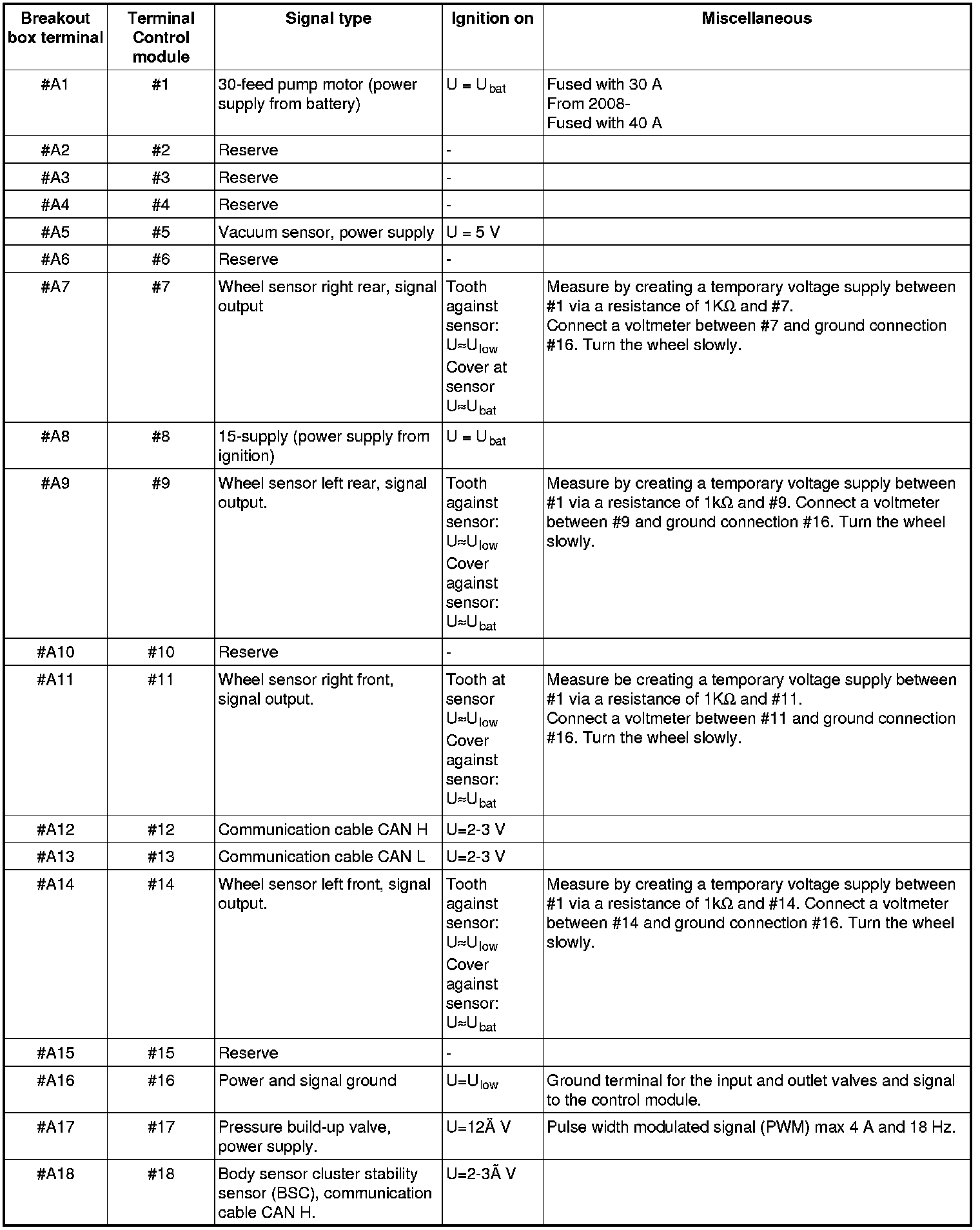

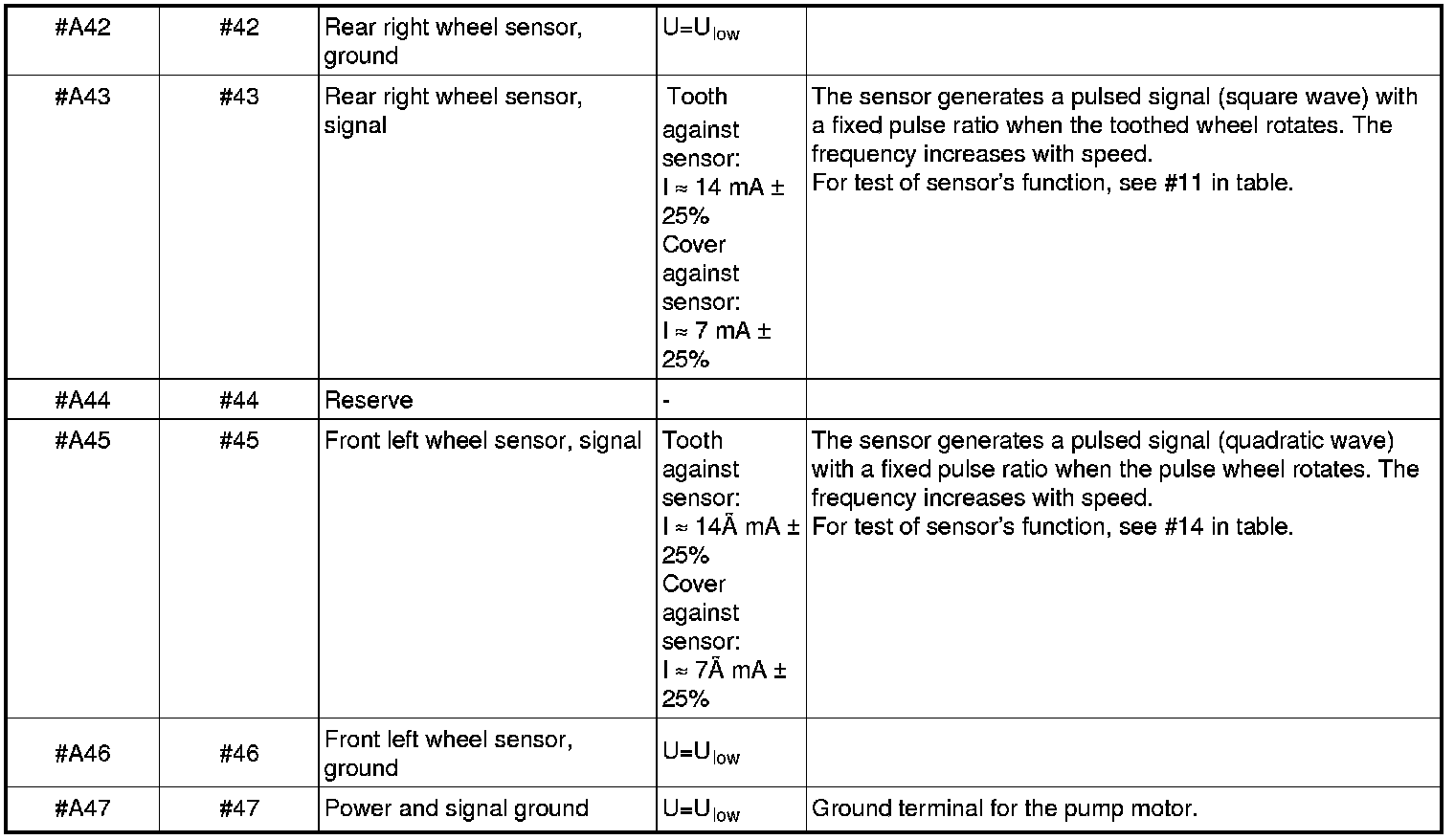

Signal specificationAll the values given below are between the relevant terminal stated in column 1 and terminal #A16 or #A47 (ground) unless otherwise stated in parenthesis after the table entry.
Note! It is important to connect the breakout box and check the ground connections before starting to measure.
