Compressor Clutch: Service and Repair

Electromagnetic clutch

Operation number: 87426-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.











Removal

Remove the battery. Refer to: Battery, replacing Removal and Replacement.







Remove the air cleaner housing Refer to: Air cleaner housing, B6324S5 Service and Repair.





Torque: M6, 10 Nm

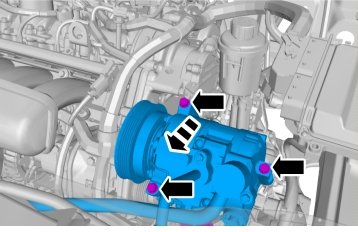

Slacken the tensioner.Use: 19 mm fixed wrench. Lock the tensioner in the slackened position. Use: 3 mm pin.





Torque: M8, 24 Nm

Torque: M10, 50 Nm





Torque: M8, 24 Nm

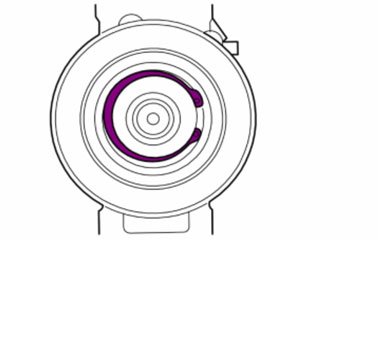

Torque: air conditioning clutch drive plate, 13 Nm
13 Nm











Installation

To install, reverse the removal procedure.





999 7404 Adjustment tool 999 7404 Adjustment Tool to measure the distance between drive plate and belt pulley.
