Air Bag Control Module: Locations

Location of components

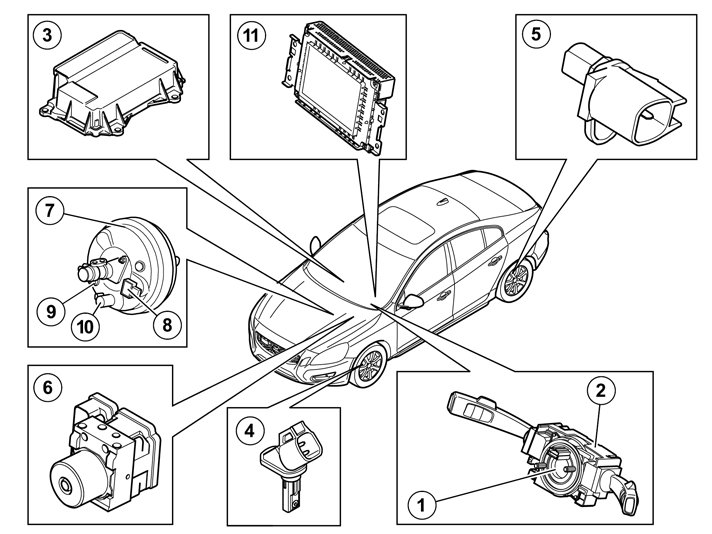

Location of components for brake electronics




1. Contact roller / steering wheel angle sensor.
2. Steering wheel angle sensor module (located internally in steering wheel module (SWM)).
3. Supplemental restraint system module (SRS).
4. Front wheel sensor.
5. Rear wheel sensor.
6. Hydraulic modulator with control module.
7. Servo unit.
8. Vacuum sensor.
9. Activation unit (pedal pressure sensor, check valve).
10. Pedal position sensor.
11. Infotainment Control Module (ICM).






Component location

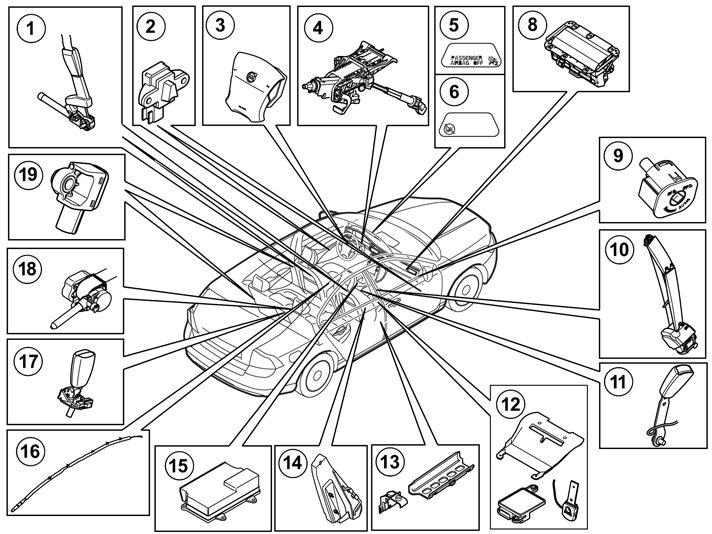

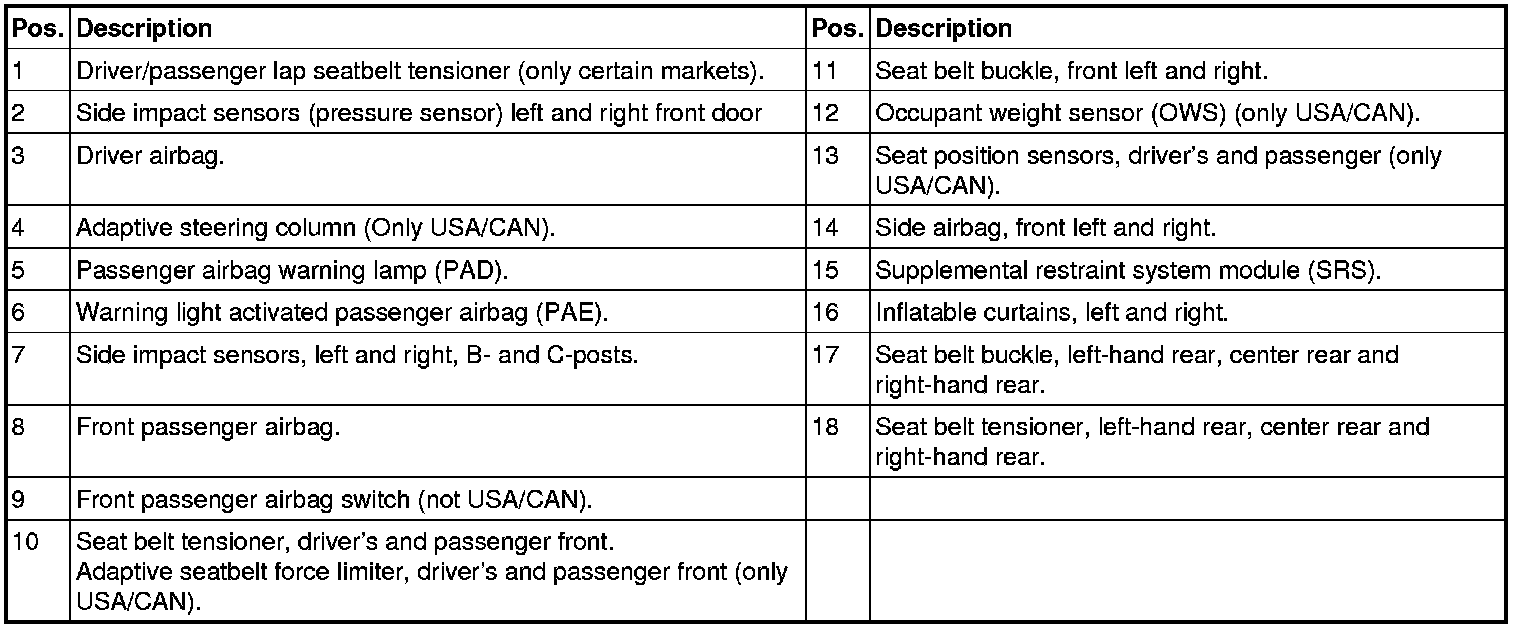

Location of components

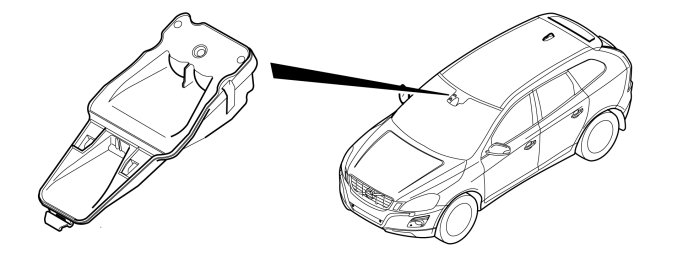

Location Of Components:

- Closing velocity module (CVM)
