Ignition Switch: Service and Repair

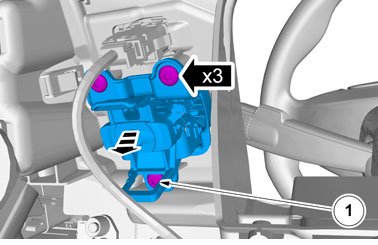

Key Slot SCUOperation number: 33437-2
RemovalRemove the combined instrument panel Refer to: Combined instrument panel
Combined Instrument Panel Remove start button SCU Refer to: Start Button SCU
Service and Repair Remove aerial unit SCU Refer to: Antenna Unit SCU
Service and Repair Caution! Make sure that a new bolt is installed.InstallationTo install, reverse the removal procedure.
