Instruments - Clock Fuse Installation

Retailer Technical Journal 20105
Analogue clock, S80 Executive: Fuse to be installed at CPS

Reference: Wiring diagrams

Note! If using a printed copy of this Retailer Technical Journal, first check for the latest online version.





AFFECTED VEHICLES:

DESCRIPTION:
S80 Executive cars from M/Y09 are equipped with an analogue clock. To prevent battery drainage, the 15A fuse is removed in production and put in the glove compartment.

SERVICE:

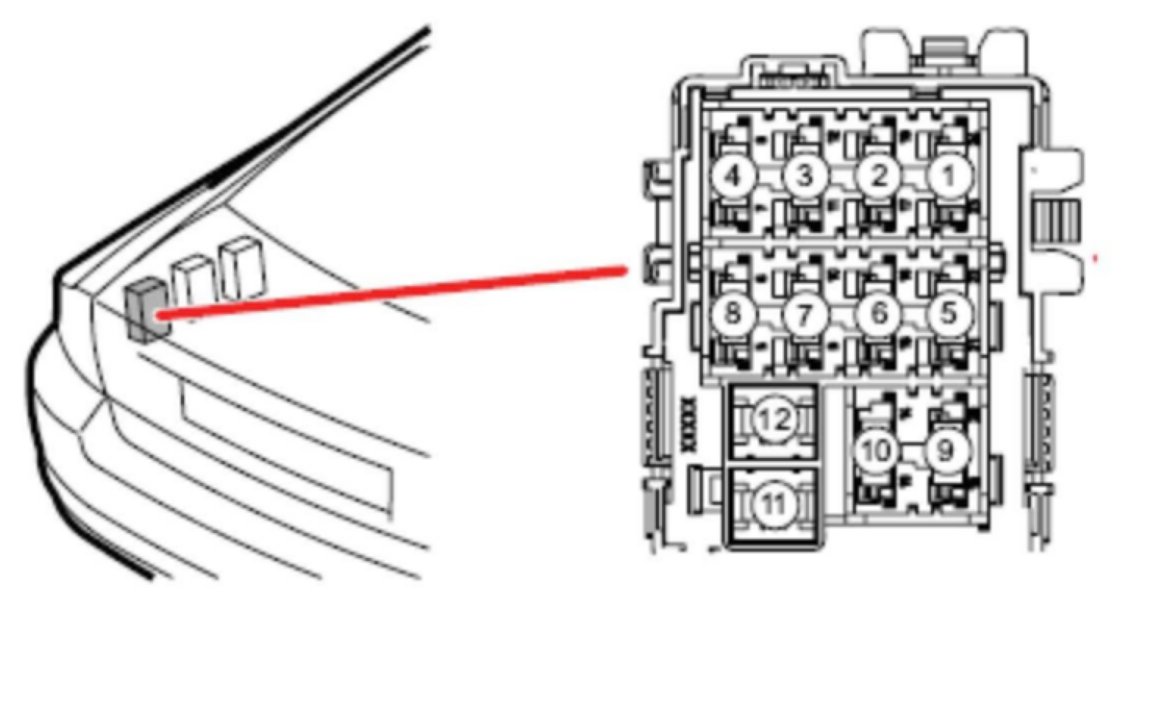

As part of the CPS (Customer Preparation Service), The 15A fuse must be installed in the RJB (Rear Junction Box) D with the blue cover. Position number 6
