Cushion













Cushion









INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces
- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.

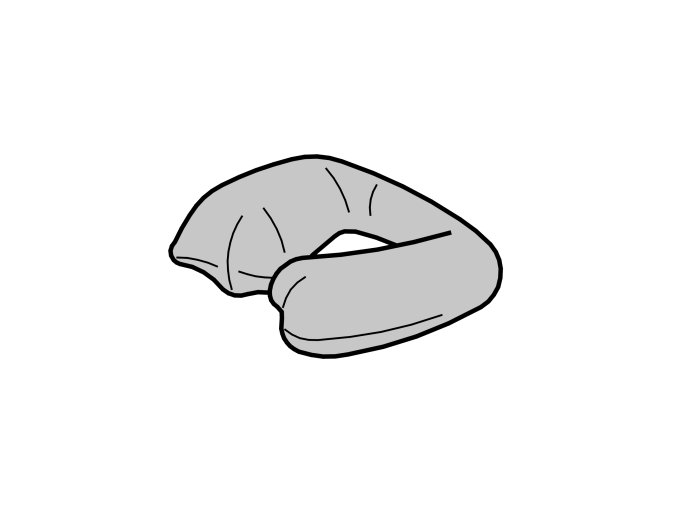

Cushion

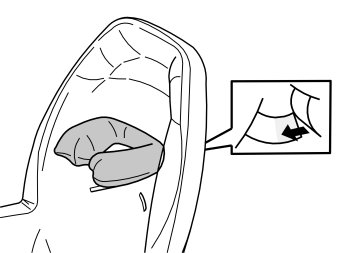

- The cushion is secured in the cut outs for the seat belt in the child seat using elastic straps
- Different height positions can be obtained by using the different seat belt cut outs.

Hint: The cushion can be used loose, without being secured to the child seat.
